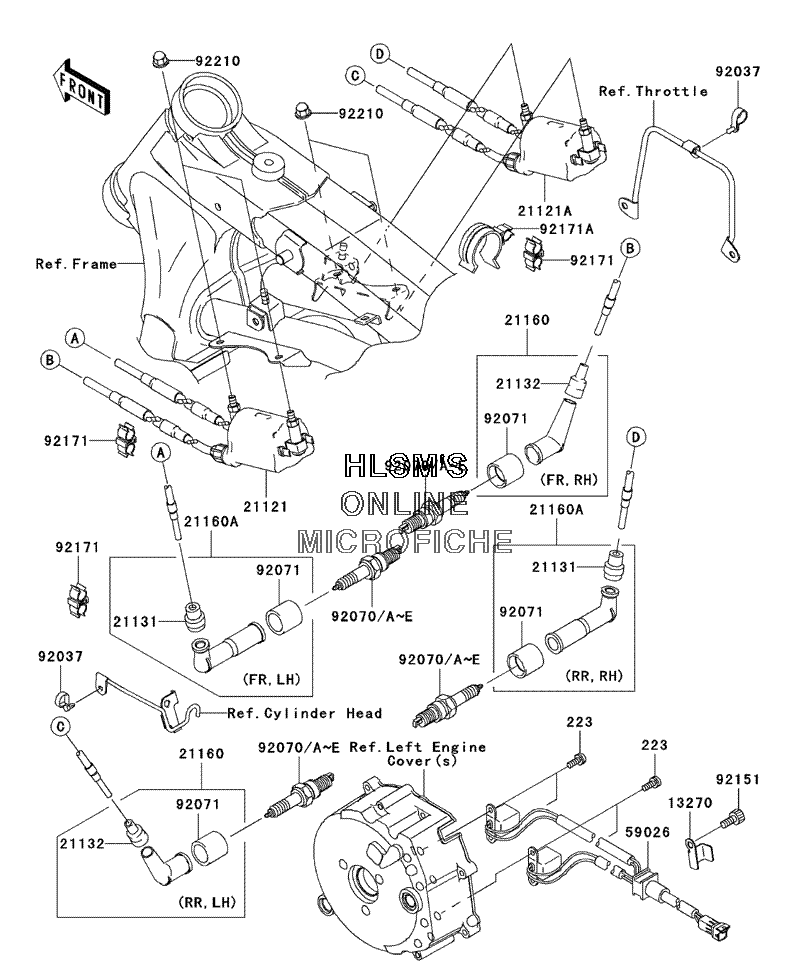

IGNITION SYSTEM для Kawasaki Vulcan 1600 Classic - 2003 года выпуска
-
№АртикулНазвание
-
223223B0516 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
1327013270-1979 PLATEPLATE
-
2112121121-0003 COIL, IGNITION, FRONTCOIL, IGNITION, FRONT
-
21121A21121-0004 COIL, IGNITION, REARCOIL, IGNITION, REAR
-
2113121131-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2113221132-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2116021160-0004 CAP, ASSY., PLUGCAP, ASSY., PLUG
-
21160A21160-1091 CAP, ASSY., PLUGCAP, ASSY., PLUG
-
5902659026-1157 COIL, PULSINGCOIL, PULSING
-
9203792037-1290 CLAMP, SPEED, L=43 PLUG, SPARK, X22EPR, U9 (ND) (LOCAL PROCUREMENT ITEM)CLAMP, SPEED, L=43 PLUG, SPARK, X22EPR, U9 (ND) (LOCAL PROCUREMENT ITEM)
-
92070A92070-1125 PLUG, SPARK, DPR7EA9 (NGK) (OPT)PLUG, SPARK, DPR7EA9 (NGK) (OPT)
-
92070B92070-1138 PLUG, SPARK, DPR6EA9 (NGK) PLUG, SPARK, X20EPR, U9 (ND) (LOCAL PROCUREMENT ITEM)PLUG, SPARK, DPR6EA9 (NGK) PLUG, SPARK, X20EPR, U9 (ND) (LOCAL PROCUREMENT ITEM)
-
92070D92070-1250 PLUG, SPARK, DPR5EA9 (NGK) (OPT) PLUG, SPARK, X16EPR, U9 (ND) (LOCAL PROCUREMENT ITEM)PLUG, SPARK, DPR5EA9 (NGK) (OPT) PLUG, SPARK, X16EPR, U9 (ND) (LOCAL PROCUREMENT ITEM)
-
9207192071-1184 GROMMET, PLUG CAPGROMMET, PLUG CAP
-
9215192151-3704 BOLT, 6X10BOLT, 6X10
-
9217192171-0129 CLAMP, HIGHTENSION CORDCLAMP, HIGHTENSION CORD
-
92171A92171-0130 CLAMPCLAMP
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
