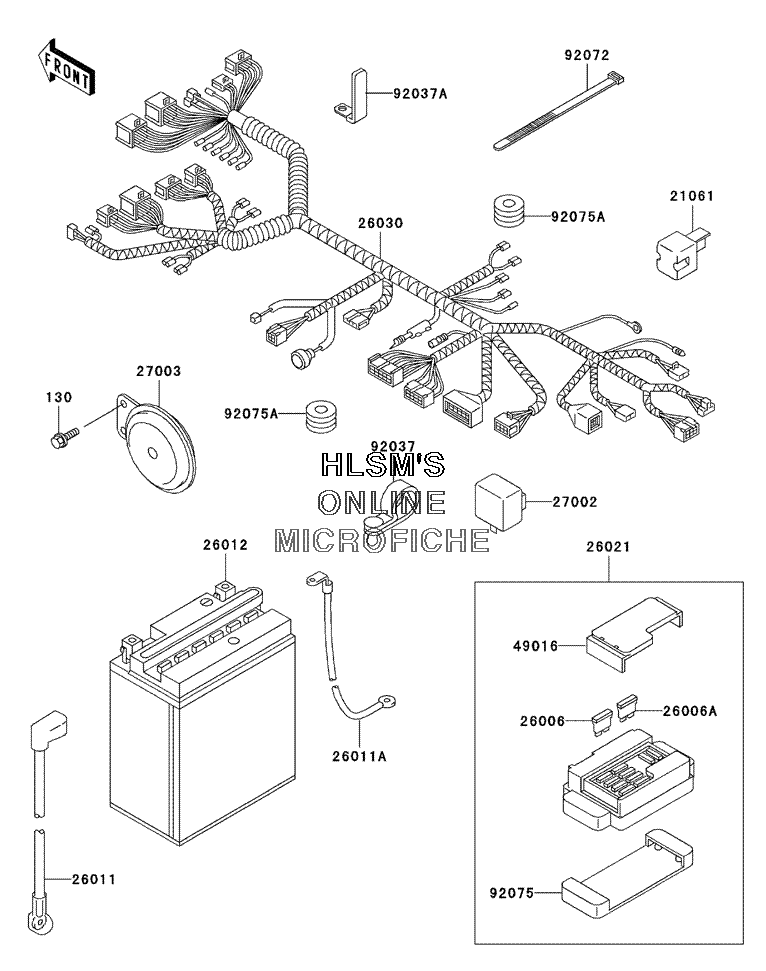

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Vulcan 500 LTD - 2003 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGED 6X12, BLACKBOLT, FLANGED 6X12, BLACK
-
2106121061-1003 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1642 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1643 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1342 BATTERY, YB12ALA2, 12V 12AHBATTERY, YB12ALA2, 12V 12AH
-
2602126021-1089 JUNCTION BOXJUNCTION BOX
-
2603026030-1730 HARNESS, MAINHARNESS, MAIN
-
2700227002-1101 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-1392 HORNHORN
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1679 CLAMPCLAMP
-
9207292072-1195 BAND, L=202BAND, L=202
-
9207592075-1688 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
92075A92075-294 DAMPERDAMPER
