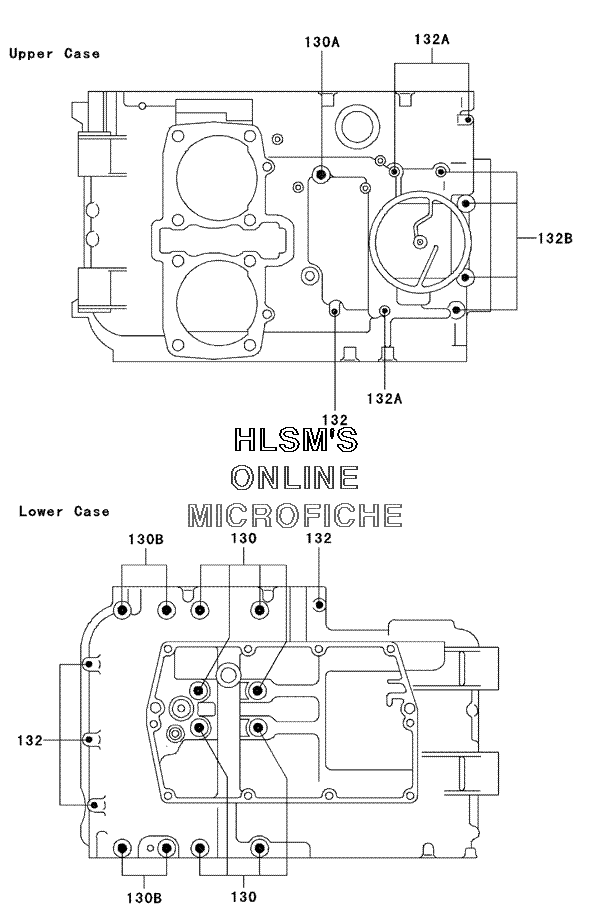

CRANKCASE BOLT PATTERN для Kawasaki Vulcan 500 LTD - 2003 года выпуска
-
№АртикулНазвание
-
130130Z08100 BOLT, FLANGEDBOLT, FLANGED
-
130A130Z0855 BOLT, FLANGEDBOLT, FLANGED
-
130B130Z0875 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0640 BOLT, FLANGED, SMALL 6X40BOLT, FLANGED, SMALL 6X40
-
132A132Y0660 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132Y0680 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
