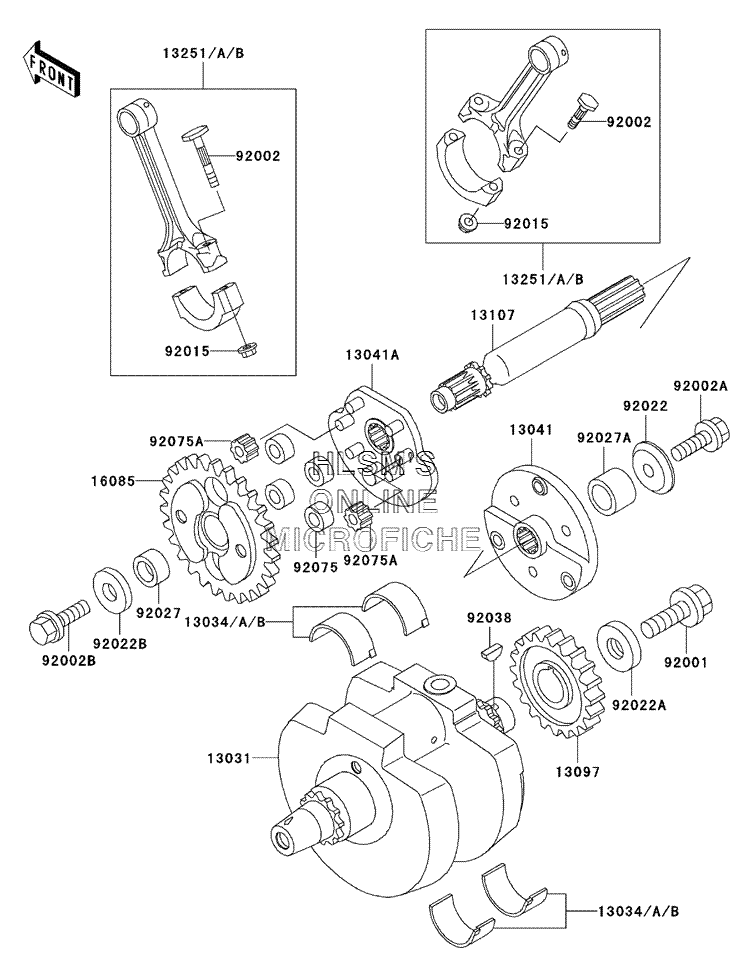

CRANKSHAFT для Kawasaki Vulcan 750 - 2003 года выпуска
-
№АртикулНазвание
-
1303113031-1202 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303413034-1057 METAL, CONNECTING ROD (BLUE)METAL, CONNECTING ROD (BLUE)
-
13034A13034-1058 METAL, CONNECTING ROD (BLACK)METAL, CONNECTING ROD (BLACK)
-
13034B13034-1059 METAL, CONNECTING ROD (BROWN)METAL, CONNECTING ROD (BROWN)
-
1304113041-1065 BALANCER (RIGHT)BALANCER (RIGHT)
-
13041A13041-1068 BALANCER (LEFT)BALANCER (LEFT)
-
1309713097-1129 GEAR, PRIMARY SPUR (35 TEETH)GEAR, PRIMARY SPUR (35 TEETH)
-
1310713107-1146 SHAFT, BALANCERSHAFT, BALANCER
-
1325113251-1055-GG ROD, ASSY, CONNECTING, GROD, ASSY, CONNECTING, G
-
13251A13251-1055-HH ROD, ASSY, CONNECTING, HROD, ASSY, CONNECTING, H
-
13251B13251-1055-II ROD, ASSY, CONNECTING, IROD, ASSY, CONNECTING, I
-
1608516085-1148 GEAR, BALANCER (42 TEETH)GEAR, BALANCER (42 TEETH)
-
9200192001-1146 BOLT, FLANGED, 12X40BOLT, FLANGED, 12X40
-
9200292002-1405 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
92002A92002-1635 BOLT, 10X25BOLT, 10X25
-
92002B92002-1636 BOLT, 10X25BOLT, 10X25
-
9201592015-1481 NUT, CONNECTING RODNUT, CONNECTING ROD
-
9202292022-1631 WASHERWASHER
-
92022A92022-1639 WASHER, 12X32X6WASHER, 12X32X6
-
92022B92022-1641 WASHER, 10X32X4.5WASHER, 10X32X4.5
-
9202792027-1859 COLLAR, 16X24X8.5COLLAR, 16X24X8.5
-
92027A92027-1860 COLLAR, 20X28X19.5COLLAR, 20X28X19.5
-
9203892038-1059 KEYKEY
-
9207592075-1747 DAMPERDAMPER
-
92075A92075-1748 DAMPERDAMPER
