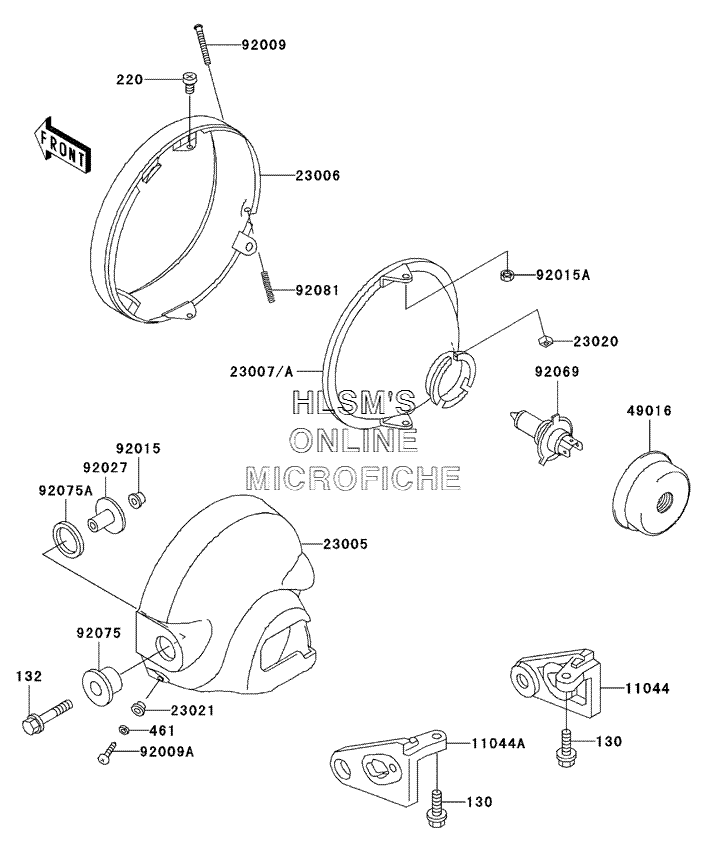

HEADLIGHT(S) для Kawasaki Vulcan 750 - 2003 года выпуска
-
№АртикулНазвание
-
130130N0825 BOLT, FLANGEDBOLT, FLANGED
-
132132E0840 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
461461F0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
1104411044-1471 BRACKET, HEAD LAMP (RIGHT)BRACKET, HEAD LAMP (RIGHT)
-
11044A11044-1472 BRACKET, HEAD LAMP (LEFT)BRACKET, HEAD LAMP (LEFT)
-
2300523005-1058 BODY, COMP, HEAD LAMP, CR PLATEDBODY, COMP, HEAD LAMP, CR PLATED
-
2300623006-1055 RIM, LAMPRIM, LAMP
-
23007A23007-1399 LENS, COMP, HEAD LAMPLENS, COMP, HEAD LAMP
-
2302023020-018 NUT, 4MM, FOCUS ADJUSTNUT, 4MM, FOCUS ADJUST
-
2302123021-010 WASHERWASHER
-
4901649016-1046 COVER, SEAL, HEAD LAMPCOVER, SEAL, HEAD LAMP
-
9200992009-1033 SCREW, 4X52SCREW, 4X52
-
92009A92009-1947 SCREW, 5MMSCREW, 5MM
-
9201592015-1014 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1157 NUT, 5MMNUT, 5MM
-
9202792027-1131 COLLAR, L=20COLLAR, L=20
-
9206992069-1002 BULB, 12V 60/55W, H4BULB, 12V 60/55W, H4
-
9207592075-1109 DAMPER, HEAD LAMP FITTINGDAMPER, HEAD LAMP FITTING
-
92075A92075-1110 DAMPER, HEAD LAMP FITTINGDAMPER, HEAD LAMP FITTING
-
9208192081-1701 SPRING, FOCUS ADJUSTINGSPRING, FOCUS ADJUSTING
