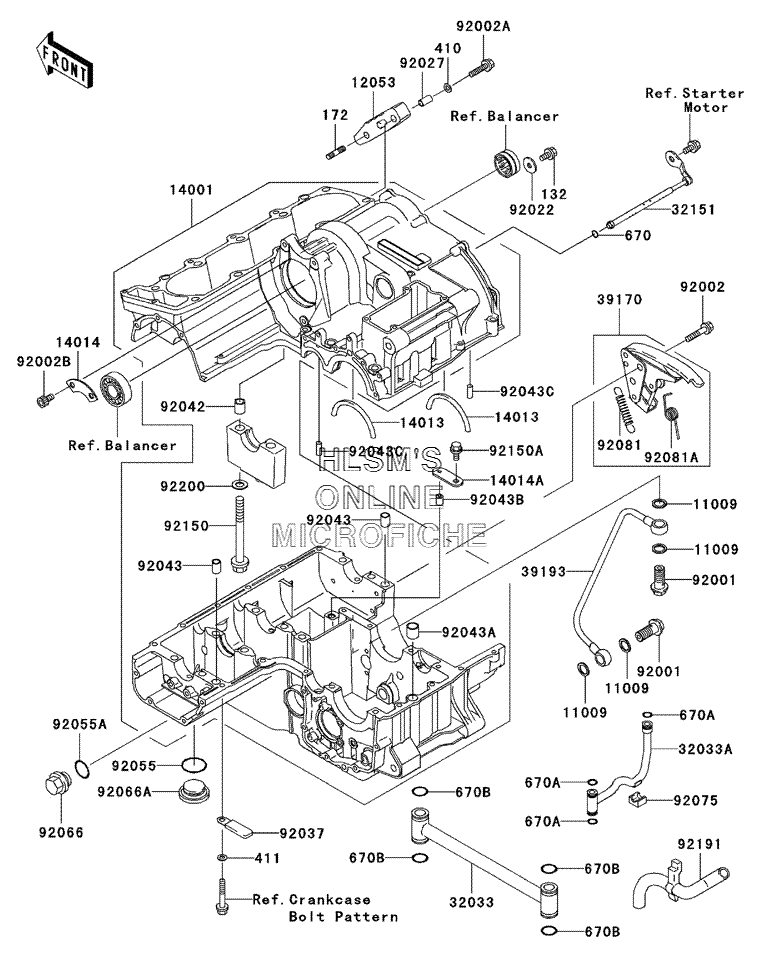

CRANKCASE для Kawasaki ZZR1200 - 2003 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
172172G0616 BOLT, STUD, 6X16BOLT, STUD, 6X16
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
411411F0600 WASHER, PLAIN, 6MM (BLACK)WASHER, PLAIN, 6MM (BLACK)
-
670670B1506 O-RING, 6MMO-RING, 6MM
-
670A670D1509 O-RING, 9MMO-RING, 9MM
-
1100911009-1376 GASKET, 12.5X18X1.5GASKET, 12.5X18X1.5
-
1205312053-1189 GUIDE, CHAINGUIDE, CHAIN
-
1400114001-1301 SET, CRANKCASESET, CRANKCASE
-
1401314013-1005 RING, POSITION, T=1.98RING, POSITION, T=1.98
-
1401414014-1056 PLATE, POSITIONPLATE, POSITION
-
14014A14014-1155 PLATE, POSITIONPLATE, POSITION
-
3203332033-1201 PIPE, MAIN GALLARYPIPE, MAIN GALLARY
-
32033A32033-1202 PIPEPIPE
-
3215132151-1482 PIPE, OILPIPE, OIL
-
3917039170-1059 TENSIONER, COMPTENSIONER, COMP
-
3919339193-1044 PIPE, OILPIPE, OIL
-
9200192001-1871 BOLT, BANJO, 12X23BOLT, BANJO, 12X23
-
9200292002-1534 BOLT, 6X30BOLT, 6X30
-
92002A92002-1609 BOLT, 6X25BOLT, 6X25
-
92002B92002-1796 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9202292022-1517 WASHER, 6X19.5X2WASHER, 6X19.5X2
-
9202792027-1079 COLLAR, 6.2X8.1X15COLLAR, 6.2X8.1X15
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
92043A92043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
92043B92043-1281 PIN, BALANCERPIN, BALANCER
-
92043C92043-1690 PIN, 6X16PIN, 6X16
-
9205592055-091 O-RINGO-RING
-
92055A92055-1146 O-RINGO-RING
-
9206692066-1096 PLUG, MAIN GALLERY, 18X9 (BLACK)PLUG, MAIN GALLERY, 18X9 (BLACK)
-
92066A92066-1161 PLUG, 25X8PLUG, 25X8
-
9207592075-1785 DAMPER, PIPEDAMPER, PIPE
-
9208192081-1668 SPRINGSPRING
-
92081A92081-1971 SPRINGSPRING
-
9215092150-1364 BOLT, 9X90BOLT, 9X90
-
92150A92150-1868 BOLT, 6X12BOLT, 6X12
-
9219192191-1775 TUBE, BREATHERTUBE, BREATHER
-
9220092200-1037 WASHER, 9.5X18X1.2WASHER, 9.5X18X1.2
-
670B670D2016 O-RING, 16MMO-RING, 16MM
