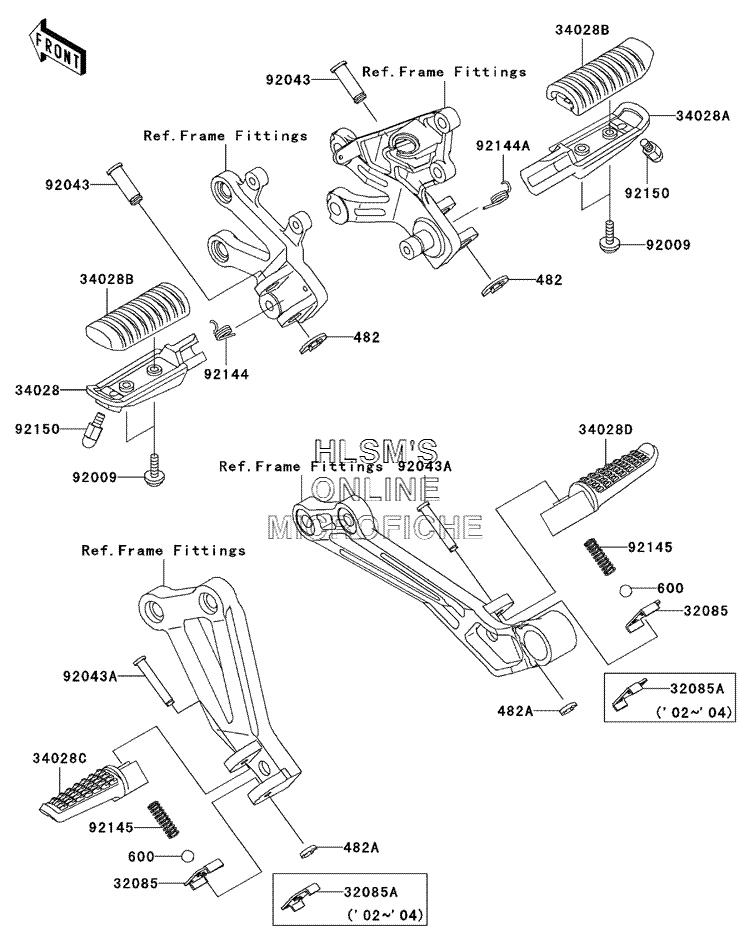

FOOTRESTS для Kawasaki ZZR1200 - 2003 года выпуска
-
№АртикулНазвание
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
482A482L5000 CIRCLIP, TYPE, E, 5MMCIRCLIP, TYPE, E, 5MM
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
32085A32085-1496 STOPPER, REAR STEPSTOPPER, REAR STEP
-
3402834028-1428 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028A34028-1429 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028B34028-1430 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028C34028-1480 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028D34028-1481 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
9200992009-1404 SCREW, 5X14SCREW, 5X14
-
9204392043-1594 PIN, 12X42.5PIN, 12X42.5
-
92043A92043-1595 PIN, 6X40PIN, 6X40
-
9214492144-1567 SPRING, STEP RETURNSPRING, STEP RETURN
-
92144A92144-1568 SPRING, STEP RETURNSPRING, STEP RETURN
-
9214592145-1319 SPRINGSPRING
-
9215092150-1114 BOLT, BANK SENSORBOLT, BANK SENSOR
