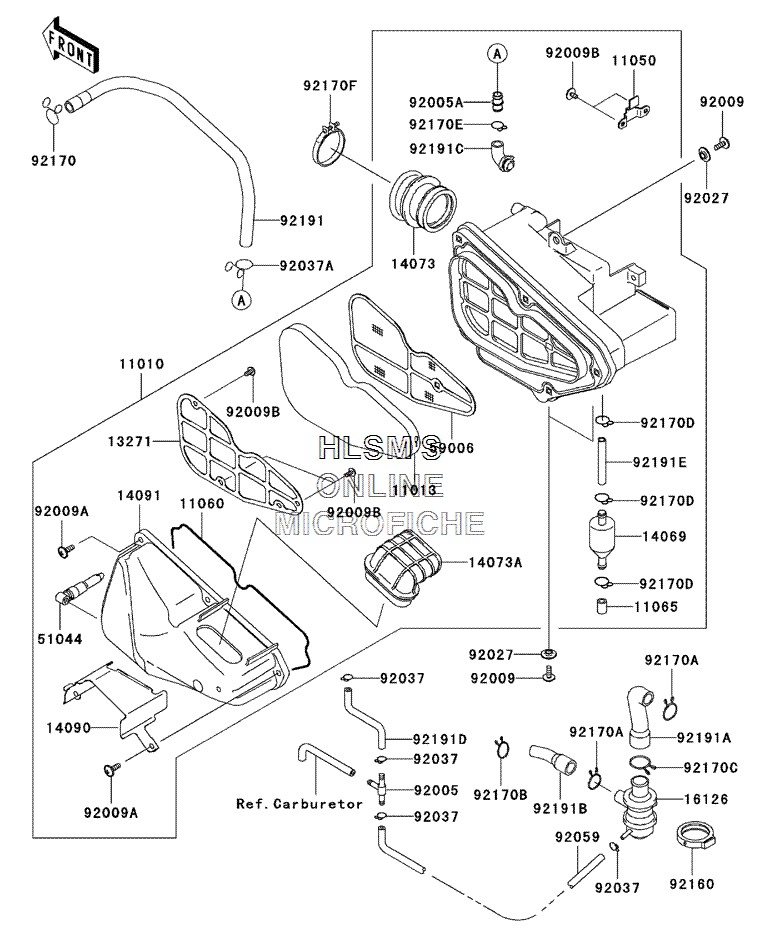

AIR CLEANER (EXCEPT CALIF.) для Kawasaki Eliminator 125 - 2004 года выпуска
-
№АртикулНазвание
-
1101011010-1719 FILTER, ASSY, AIRFILTER, ASSY, AIR
-
1101311013-1268 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1105011050-1427 BRACKETBRACKET
-
1106011060-1808 GASKET, AIR FILTERGASKET, AIR FILTER
-
1106511065-1088 CAP, BREATHERCAP, BREATHER
-
1327113271-1103 PLATE, ELEMENTPLATE, ELEMENT
-
1406914069-1064 BREATHERBREATHER
-
1407314073-1702 DUCT, CARBURETORDUCT, CARBURETOR
-
14073A14073-1703 DUCT, INTAKEDUCT, INTAKE
-
1409014090-1891 COVER, INTAKE DUCTCOVER, INTAKE DUCT
-
1409114091-1114 COVER, AIR FILTERCOVER, AIR FILTER
-
1612616126-1353 VALVEVALVE
-
5104451044-1196 TUBE, ASSY, DRAINTUBE, ASSY, DRAIN
-
5900659006-1057 ARRESTER, FLAMEARRESTER, FLAME
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
92005A92005-1247 FITTINGFITTING
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-1830 SCREW, 6X18SCREW, 6X18
-
92009B92009-1831 SCREW, TAPPING 5X10SCREW, TAPPING 5X10
-
9202792027-1757 COLLARCOLLAR
-
9203792037-1610 CLAMPCLAMP
-
92037A92037-192 CLAMP, BREATHER TUBECLAMP, BREATHER TUBE
-
9205992059-1712 TUBE, 4X9X260TUBE, 4X9X260
-
9216092160-1867 DAMPER, VALVEDAMPER, VALVE
-
9217092170-1017 CLAMPCLAMP
-
92170A92170-1445 CLAMP, TUBECLAMP, TUBE
-
92170B92170-1695 CLAMPCLAMP
-
92170C92170-1786 CLAMPCLAMP
-
92170D92170-1796 CLAMPCLAMP
-
92170E92170-1845 CLAMPCLAMP
-
92170F92170-1864 CLAMPCLAMP
-
9219192191-1162 TUBE, BREATHERTUBE, BREATHER
-
92191A92191-1163 TUBE, AIR FILTER, VALVETUBE, AIR FILTER, VALVE
-
92191B92191-1164 TUBE, VALVE, ENGINETUBE, VALVE, ENGINE
-
92191C92191-1208 TUBE, BREATHERTUBE, BREATHER
-
92191D92191-1210 TUBE, L=115TUBE, L=115
-
92191E92191-1241 TUBE, 7X12X45TUBE, 7X12X45
