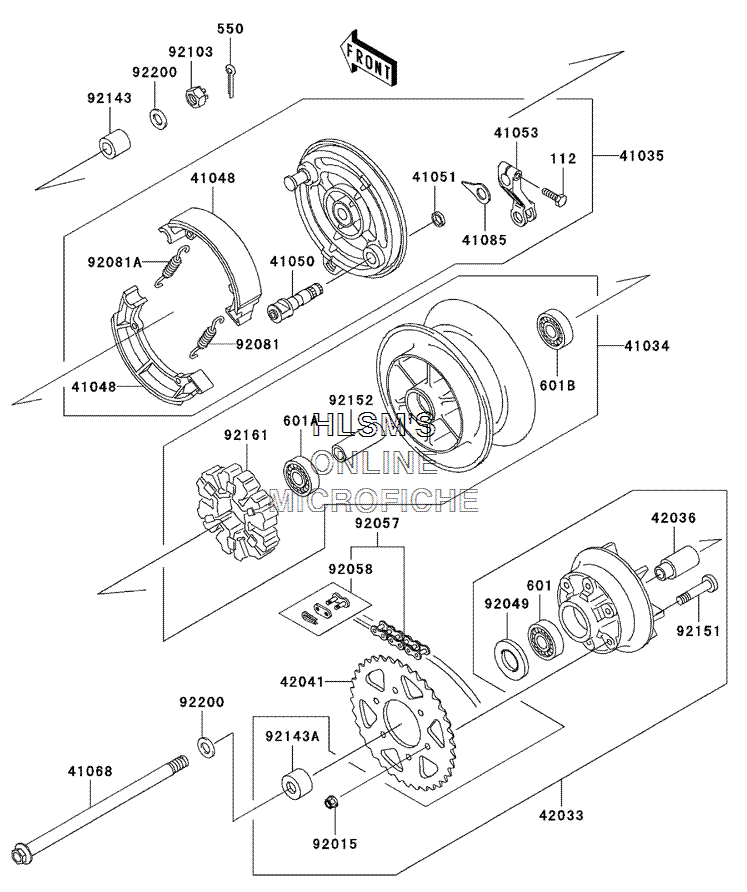

WHEEL - REAR W/ CHAIN для Kawasaki Eliminator 125 - 2004 года выпуска
-
№АртикулНазвание
-
112112P0622 BOLT, UPSET, 6X22BOLT, UPSET, 6X22
-
550550S4035 PIN, COTTER, 4X35PIN, COTTER, 4X35
-
601601B6004UU BEARING, BALL, #6004UUC3BEARING, BALL, #6004UUC3
-
601A601B6202UU BEARING, BALLBEARING, BALL
-
601B601B6302UU BEARING, BALL, #6302UUBEARING, BALL, #6302UU
-
4103441034-1318 DRUM, ASSY, REAR BRAKEDRUM, ASSY, REAR BRAKE
-
4103541035-0007 PANEL, ASSY, BRAKE, REARPANEL, ASSY, BRAKE, REAR
-
4104841048-1076 SHOE, BRAKESHOE, BRAKE
-
4105041050-0004 CAM, BRAKECAM, BRAKE
-
4105141051-001 SEAL, BRAKE CAMSEAL, BRAKE CAM
-
4105341053-0001 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-1392 AXLE, REARAXLE, REAR
-
4108541085-0002 INDICATORINDICATOR
-
4203342033-1202 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-030 SLEEVE, REAR HUB COUPLINGSLEEVE, REAR HUB COUPLING
-
4204142041-1534 SPROCKET, HUB, 46TSPROCKET, HUB, 46T
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9204992049-1487 SEAL, OIL, KCY26X42X8SEAL, OIL, KCY26X42X8
-
9205792057-1485 CHAIN, DRIVE, 132LCHAIN, DRIVE, 132L
-
9205892058-1080 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9208192081-1550 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
92081A92081-1766 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
9210392103-006 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9214392143-1950 COLLAR, REAR AXLE, L=34.5COLLAR, REAR AXLE, L=34.5
-
92143A92143-1951 COLLAR, REAR HUB COUPLING, L=20COLLAR, REAR HUB COUPLING, L=20
-
9215192151-1320 BOLT, 8X41BOLT, 8X41
-
9215292152-1289 COLLAR, REAR BRAKE DRUM, L=100COLLAR, REAR BRAKE DRUM, L=100
-
9216192161-1327 DAMPER, REAR HUB SHOCKDAMPER, REAR HUB SHOCK
-
9220092200-1366 WASHER, 15X30X3.2WASHER, 15X30X3.2
