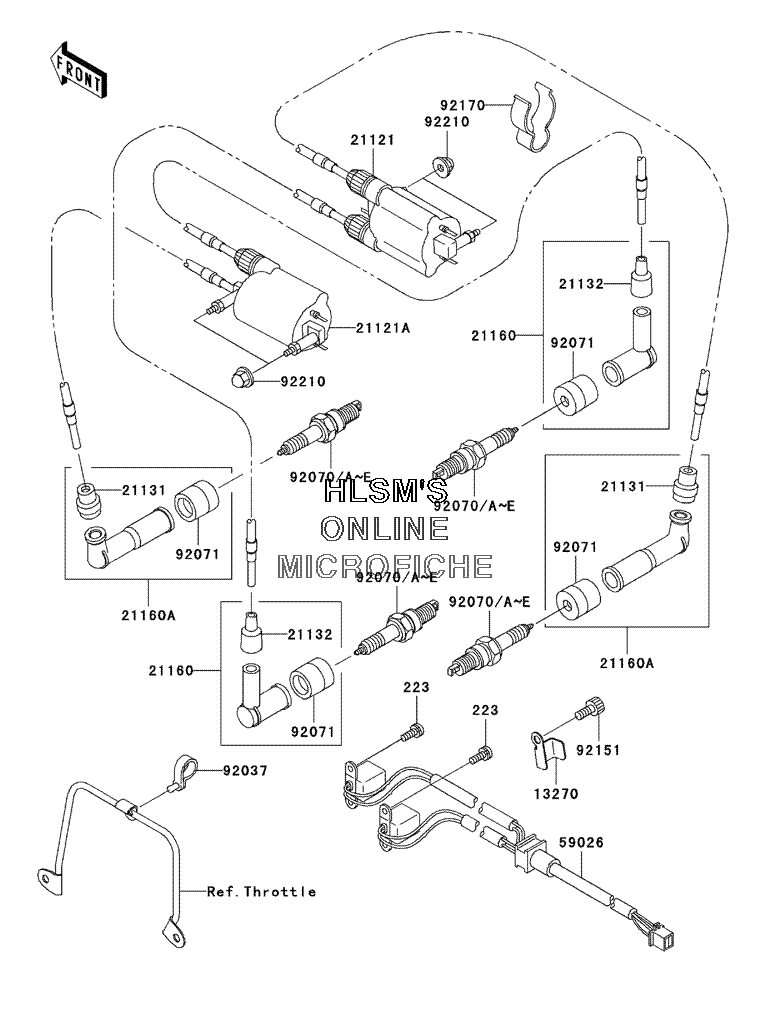

IGNITION SYSTEM для Kawasaki Vulcan 1500 Nomad Fi - 2004 года выпуска
-
№АртикулНазвание
-
223223B0516 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
1327013270-1979 PLATEPLATE
-
2112121121-1288 COIL, IGNITION, REARCOIL, IGNITION, REAR
-
21121A21121-1289 COIL, IGNITION, FRONTCOIL, IGNITION, FRONT
-
2113121131-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2113221132-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2116021160-1085 CAP, ASSY, PLUGCAP, ASSY, PLUG
-
21160A21160-1091 CAP, ASSY, PLUGCAP, ASSY, PLUG
-
5902659026-1157 COIL, PULSINGCOIL, PULSING
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
92070A92070-1125 PLUG, SPARK, DPR7EA9 (NGK) (OPT)PLUG, SPARK, DPR7EA9 (NGK) (OPT)
-
92070B92070-1138 PLUG, SPARK, DPR6EA9 (NGK)PLUG, SPARK, DPR6EA9 (NGK)
-
92070D92070-1250 PLUG, SPARK, DPR5EA9 (NGK) (OPT)PLUG, SPARK, DPR5EA9 (NGK) (OPT)
-
9207192071-1184 GROMMET, PLUG CAPGROMMET, PLUG CAP
-
9215192151-3704 BOLT, 6X10BOLT, 6X10
-
9217092170-1930 CLAMP, HOSECLAMP, HOSE
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
