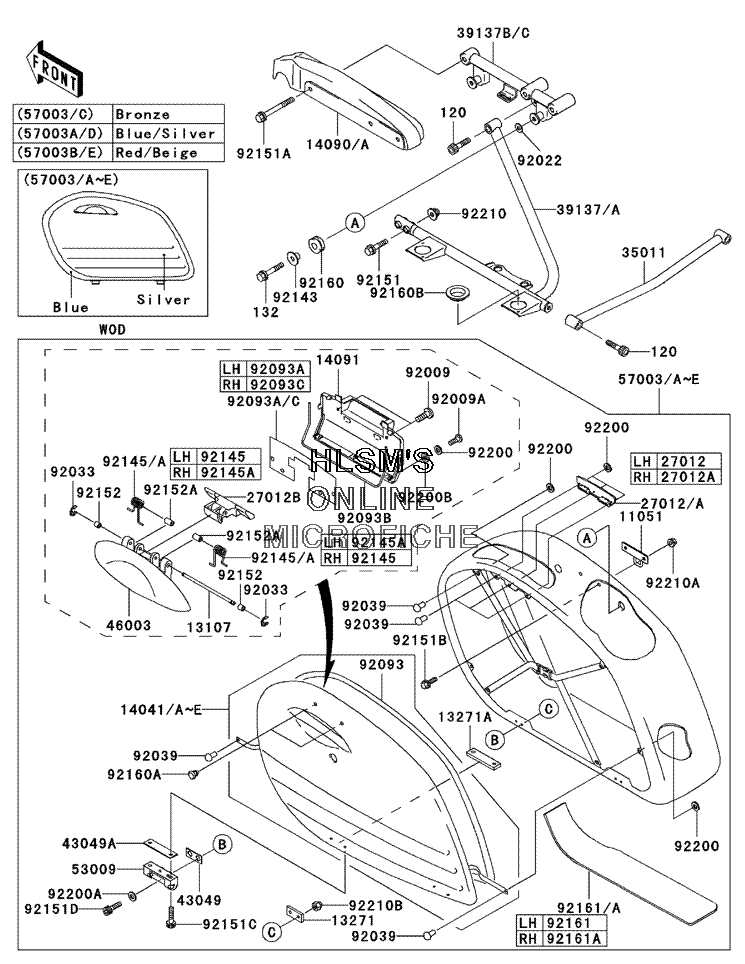

SADDLEBAGS для Kawasaki Vulcan 1500 Nomad Fi - 2004 года выпуска
-
№АртикулНазвание
-
1105111051-1104 BRACKET, SIDE BAG BODYBRACKET, SIDE BAG BODY
-
1310713107-1403 SHAFTSHAFT
-
1327113271-1146 PLATEPLATE
-
13271A13271-1147 PLATEPLATE
-
1404114041-1130-GU COVER, COMP, SIDE BAG (LEFT) (SILVER)COVER, COMP, SIDE BAG (LEFT) (SILVER)
-
14041A14041-1130-X9 COVER, COMP, SIDE BAG (LEFT) (BEIGE) (CANADA ONLY)COVER, COMP, SIDE BAG (LEFT) (BEIGE) (CANADA ONLY)
-
14041B14041-1130-1Z COVER, COMP, SIDE BAG (LEFT) (BRONZE)COVER, COMP, SIDE BAG (LEFT) (BRONZE)
-
14041C14041-1131-GU COVER, COMP, SIDE BAG (RIGHT) (SILVER)COVER, COMP, SIDE BAG (RIGHT) (SILVER)
-
14041D14041-1131-X9 COVER, COMP, SIDE BAG (RIGHT) (BEIGE) (CANADA ONLY)COVER, COMP, SIDE BAG (RIGHT) (BEIGE) (CANADA ONLY)
-
14041E14041-1131-1Z COVER, COMP, SIDE BAG (RIGHT) (BRONZE)COVER, COMP, SIDE BAG (RIGHT) (BRONZE)
-
1409014090-1894 COVER, REAR FENDER (LEFT)COVER, REAR FENDER (LEFT)
-
14090A14090-1895 COVER, REAR FENDER (RIGHT)COVER, REAR FENDER (RIGHT)
-
1409114091-1069 COVER, LID MAINTENANCECOVER, LID MAINTENANCE
-
2701227012-1571 HOOK, LOCK PLATE (LEFT)HOOK, LOCK PLATE (LEFT)
-
27012A27012-1572 HOOK, LOCK PLATE (RIGHT)HOOK, LOCK PLATE (RIGHT)
-
27012B27012-1575 HOOK, HANDLEHOOK, HANDLE
-
3501135011-1896 STAY, SIDE BAGSTAY, SIDE BAG
-
3913739137-1067 STAY, COMP, SIDE BAG (LEFT/LOWER)STAY, COMP, SIDE BAG (LEFT/LOWER)
-
39137A39137-1068 STAY, COMP, SIDE BAG (RIGHT/LOWER)STAY, COMP, SIDE BAG (RIGHT/LOWER)
-
39137B39137-1075 STAY, COMP, SIDE BAG (LEFT/UPPER)STAY, COMP, SIDE BAG (LEFT/UPPER)
-
39137C39137-1076 STAY, COMP, SIDE BAG (RIGHT/UPPER)STAY, COMP, SIDE BAG (RIGHT/UPPER)
-
4304943049-1084 PACKINGPACKING
-
43049A43049-1086 PACKINGPACKING
-
4600346003-1505 HANDLE, SIDE BAGHANDLE, SIDE BAG
-
5300953009-1104 HINGE, SIDE BAGHINGE, SIDE BAG
-
5700357003-1084-1Z BAG, ASSY (LEFT) (M.D.BRONZE)BAG, ASSY (LEFT) (M.D.BRONZE)
-
57003A57003-1084-456 BAG, ASSY (LEFT) (RED/BEIGE) (CANADA ONLY)BAG, ASSY (LEFT) (RED/BEIGE) (CANADA ONLY)
-
57003B57003-1084-674 BAG, ASSY (LEFT) (BLUE/SILVER)BAG, ASSY (LEFT) (BLUE/SILVER)
-
57003C57003-1085-1Z BAG, ASSY (RIGHT) (M.D.BRONZE)BAG, ASSY (RIGHT) (M.D.BRONZE)
-
57003D57003-1085-456 BAG, ASSY (RIGHT) (RED/BEIGE) (CANADA ONLY)BAG, ASSY (RIGHT) (RED/BEIGE) (CANADA ONLY)
-
57003E57003-1085-674 BAG, ASSY (RIGHT) (BLUE/SILVER)BAG, ASSY (RIGHT) (BLUE/SILVER)
-
9200992009-1870 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009A92009-1871 SCREW, TAPPING, 3X8SCREW, TAPPING, 3X8
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
9203392033-1300 RING, SNAPRING, SNAP
-
9203992039-1236 RIVETRIVET
-
120120S0835 BOLT, SOCKET, 8X35 (BLACK)BOLT, SOCKET, 8X35 (BLACK)
-
132132J0845 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
9209392093-1486 SEAL, SIDE BAG COVERSEAL, SIDE BAG COVER
-
92093A92093-1487 SEALSEAL
-
92093B92093-1488 SEALSEAL
-
92093C92093-1489 SEALSEAL
-
9214392143-1450 COLLARCOLLAR
-
9214592145-1175 SPRINGSPRING
-
92145A92145-1200 SPRINGSPRING
-
9215192151-1402 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
92151A92151-1403 BOLT, FLANGED, 8X75BOLT, FLANGED, 8X75
-
92151B92151-1435 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92151C92151-1436 BOLT, SOCKET, 4X22BOLT, SOCKET, 4X22
-
92151D92151-1437 BOLT, SOCKET, 4X18BOLT, SOCKET, 4X18
-
9215292152-1121 COLLARCOLLAR
-
92152A92152-1122 COLLARCOLLAR
-
9216092160-1012 DAMPERDAMPER
-
92160A92160-1976 DAMPERDAMPER
-
92160B92160-1981 DAMPERDAMPER
-
9216192161-1171 DAMPER, SIDE BAG (LEFT)DAMPER, SIDE BAG (LEFT)
-
92161A92161-1176 DAMPER, SIDE BAG (RIGHT)DAMPER, SIDE BAG (RIGHT)
-
9220092200-1442 WASHER, 3MMWASHER, 3MM
-
92200A92200-1443 WASHER, 4MMWASHER, 4MM
-
92200B92200-1444 WASHER, 3MMWASHER, 3MM
-
9221092210-1161 NUT, CAP, 8MMNUT, CAP, 8MM
-
92210A92210-1167 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210B92210-1168 NUT, CAP, 4MMNUT, CAP, 4MM
