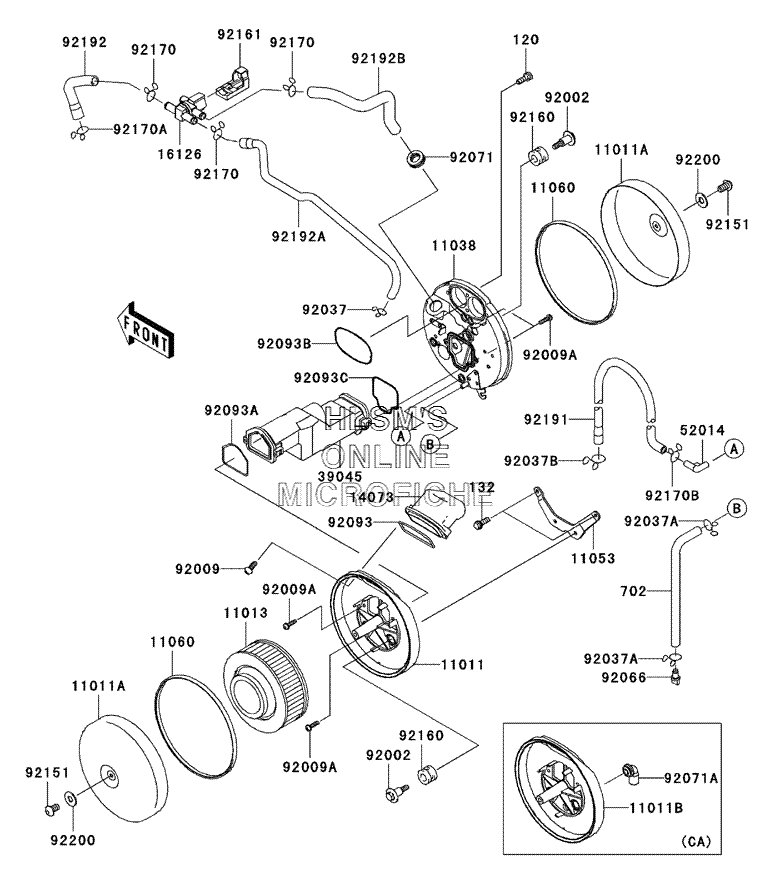

AIR CLEANER для Kawasaki Vulcan 1600 Mean Streak - 2004 года выпуска
-
№АртикулНазвание
-
120120S0616 BOLT, SOCKETBOLT, SOCKET
-
132132J0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1101111011-0020 CASE, AIR FILTER (LEFT) (EXCEPT CALIF.)CASE, AIR FILTER (LEFT) (EXCEPT CALIF.)
-
11011A11011-0021 CASE, AIR FILTER, COVERCASE, AIR FILTER, COVER
-
11011B11011-1601 CASE, AIR FILTER (LEFT) (CALIF. ONLY)CASE, AIR FILTER (LEFT) (CALIF. ONLY)
-
1101311013-1248 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1103811038-0005 CASE, ASSY, AIR FILTER (RIGHT)CASE, ASSY, AIR FILTER (RIGHT)
-
1105311053-0231 BRACKETBRACKET
-
1106011060-1968 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1407314073-1739 DUCT, AIR FILTERDUCT, AIR FILTER
-
1612616126-1437 VALVE, AIR CUTVALVE, AIR CUT
-
3904539045-0003 DUCT, ASSY, CENTERDUCT, ASSY, CENTER
-
5201452014-1083 ELBOWELBOW
-
9200292002-1595 BOLT, M6X14X13.5BOLT, M6X14X13.5
-
9200992009-1264 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92009A92009-1905 SCREW, 5X20SCREW, 5X20
-
9203792037-1468 CLAMPCLAMP
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1593 CLAMPCLAMP
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207192071-1028 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
92071A92071-1114 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
9209392093-1408 SEAL, AIR FILTER CASESEAL, AIR FILTER CASE
-
92093A92093-1459 SEAL, DUCT (LEFT)SEAL, DUCT (LEFT)
-
92093B92093-1485 SEALSEAL
-
92093C92093-1491 SEAL, DUCT (RIGHT)SEAL, DUCT (RIGHT)
-
9215192151-1438 BOLT, 8X14BOLT, 8X14
-
9216092160-1594 DAMPERDAMPER
-
9216192161-0002 DAMPERDAMPER
-
9217092170-1017 CLAMPCLAMP
-
92170A92170-1445 CLAMP, TUBECLAMP, TUBE
-
92170B92170-1695 CLAMPCLAMP
-
9219192191-1820 TUBE, BREATHERTUBE, BREATHER
-
9219292192-0001 TUBE, FRONT HEAD, AIR SWITCHTUBE, FRONT HEAD, AIR SWITCH
-
92192A92192-0002 TUBE, REAR HEAD, AIR SWITCHTUBE, REAR HEAD, AIR SWITCH
-
92192B92192-0003 TUBE, AIR SWITCH, AIR CLEANERTUBE, AIR SWITCH, AIR CLEANER
-
9220092200-1463 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
702702A07230 TUBE, RUBBER, 7X10X230TUBE, RUBBER, 7X10X230
