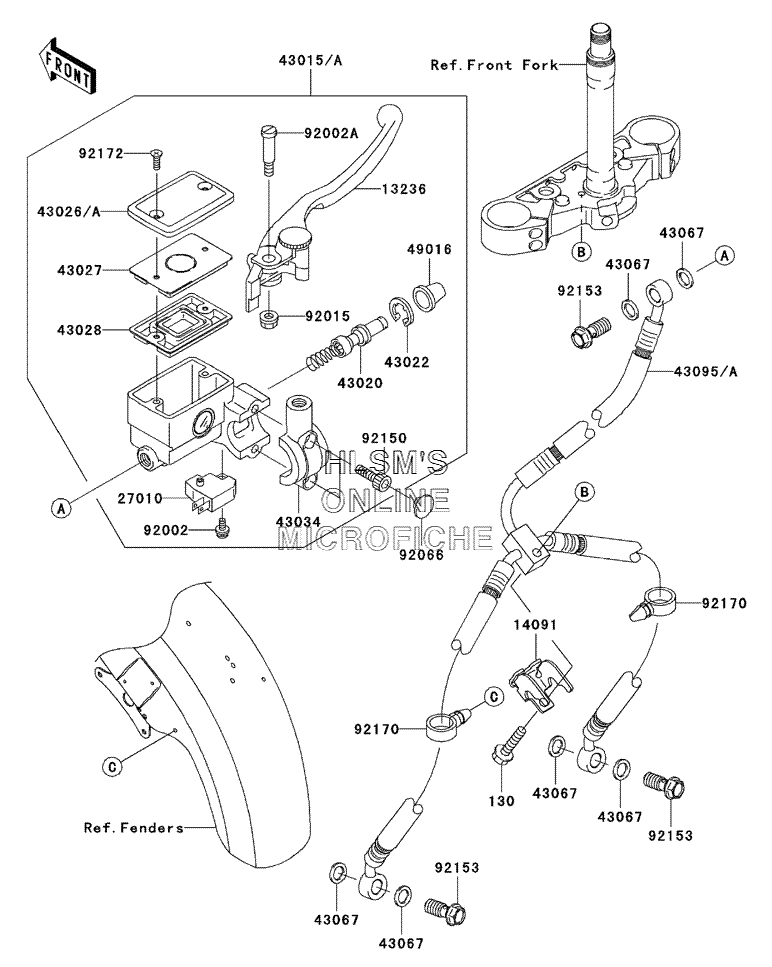

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 1600 Mean Streak - 2004 года выпуска
-
№АртикулНазвание
-
130130J0630 BOLT, FLANGED, 6X30 (BLACK)BOLT, FLANGED, 6X30 (BLACK)
-
1323613236-1315 LEVER, COMP, FRONT BRAKELEVER, COMP, FRONT BRAKE
-
1409114091-1450 COVER, 3 WAY JOINTCOVER, 3 WAY JOINT
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0023 CYLINDER, ASSY, MASTER, FRONTCYLINDER, ASSY, MASTER, FRONT
-
4302043020-1054 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-0002 CAP, BRAKECAP, BRAKE
-
4302743027-1059 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1172 HOLDER, BRAKEHOLDER, BRAKE
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
43095A43095-1324 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9206692066-1301 PLUGPLUG
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1067 CLAMPCLAMP
-
9217292172-0083 SCREWSCREW
