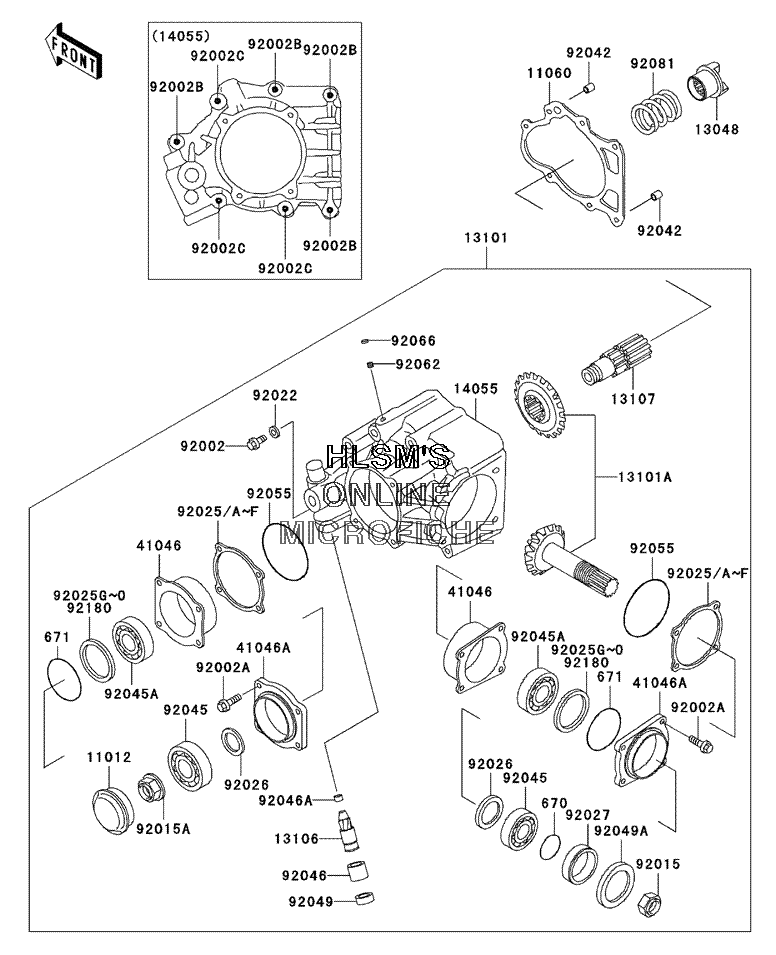

FRONT BEVEL GEAR для Kawasaki Vulcan 750 - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1672 CAP, FRONT BEVELCAP, FRONT BEVEL
-
1106011060-1086 GASKET, GEAR CASEGASKET, GEAR CASE
-
1304813048-1058 CAM, DAMPERCAM, DAMPER
-
1310113101-1094 GEAR, ASSY, BEVEL, FRONTGEAR, ASSY, BEVEL, FRONT
-
13101A13101-5048 GEAR, ASSY, BEVEL, FRONTGEAR, ASSY, BEVEL, FRONT
-
1310613106-1068 SHAFT, CLUTCH RELEASESHAFT, CLUTCH RELEASE
-
1310713107-1166 SHAFT, BEVEL GEAR, FRONTSHAFT, BEVEL GEAR, FRONT
-
1405514055-1068 CASE, GEAR, BEVEL, FRONTCASE, GEAR, BEVEL, FRONT
-
4104641046-1073 HOUSING, BEARING, BEVEL, FRONTHOUSING, BEARING, BEVEL, FRONT
-
41046A41046-1090 HOUSING, BEARING, BEVEL, FRONTHOUSING, BEARING, BEVEL, FRONT
-
9200292002-1357 BOLTBOLT
-
92002A92002-1623 BOLT, 6X32BOLT, 6X32
-
92002B92002-1624 BOLT, 6X85BOLT, 6X85
-
92002C92002-1625 BOLTBOLT
-
9201592015-1480 NUT, 25MMNUT, 25MM
-
92015A92015-1543 NUTNUT
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9202592025-1258 SHIM, T=0.10SHIM, T=0.10
-
92025A92025-1259 SHIM, T=0.15SHIM, T=0.15
-
92025B92025-1260 SHIM, T=0.20SHIM, T=0.20
-
92025C92025-1261 SHIM, T=0.30SHIM, T=0.30
-
92025D92025-1262 SHIM, T=0.60SHIM, T=0.60
-
92025E92025-1263 SHIM, T=0, 90SHIM, T=0, 90
-
92025F92025-1264 SHIM, T=1.20SHIM, T=1.20
-
92025G92025-1669 SHIM, 52.5X61.5X0.15SHIM, 52.5X61.5X0.15
-
92025H92025-1670 SHIM, 52.5X61.5X0.18SHIM, 52.5X61.5X0.18
-
92025I92025-1671 SHIM, 52.5X61.5X0.8SHIM, 52.5X61.5X0.8
-
92025J92025-1672 SHIM, 52.5X61.5X0.9SHIM, 52.5X61.5X0.9
-
92025K92025-1673 SHIM, 52.5X61.5X1.0SHIM, 52.5X61.5X1.0
-
92025L92025-1674 SHIM, 52.5X61.5X1.1SHIM, 52.5X61.5X1.1
-
92025M92025-1675 SHIM, 52.5X61.5X1.2SHIM, 52.5X61.5X1.2
-
92025N92025-1676 SHIM, 52.5X61.5X1.3SHIM, 52.5X61.5X1.3
-
92025O92025-1677 SHIM, 52.5X61.5X1.4SHIM, 52.5X61.5X1.4
-
9202692026-1533 SPACER, 25.3X36X2.0SPACER, 25.3X36X2.0
-
9202792027-1843 COLLARCOLLAR
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1115 BEARING, BALL, 6205BEARING, BALL, 6205
-
92045A92045-1147 BEARING, BALL, 5305SH2CD2BEARING, BALL, 5305SH2CD2
-
9204692046-037 BEARING, NEEDLE, 7E, HK1412BEARING, NEEDLE, 7E, HK1412
-
92046A92046-1142 BEARING, NEEDLE, HK0709BEARING, NEEDLE, HK0709
-
670670B2021 O-RING, 21MMO-RING, 21MM
-
671671B2565 O-RING, 65MMO-RING, 65MM
-
9204992049-1037 SEAL, OIL, TC14244.8SEAL, OIL, TC14244.8
-
92049A92049-1038 SEAL, OIL, TC35527SEAL, OIL, TC35527
-
9205592055-1306 O-RINGO-RING
-
9206292062-1079 NOZZLE, 6X8 (BLACK)NOZZLE, 6X8 (BLACK)
-
9206692066-1227 PLUG, PT1/8X7PLUG, PT1/8X7
-
9208192081-1552 SPRINGSPRING
-
9218092180-1115 SHIM, 52.5X61.5X0.10SHIM, 52.5X61.5X0.10
