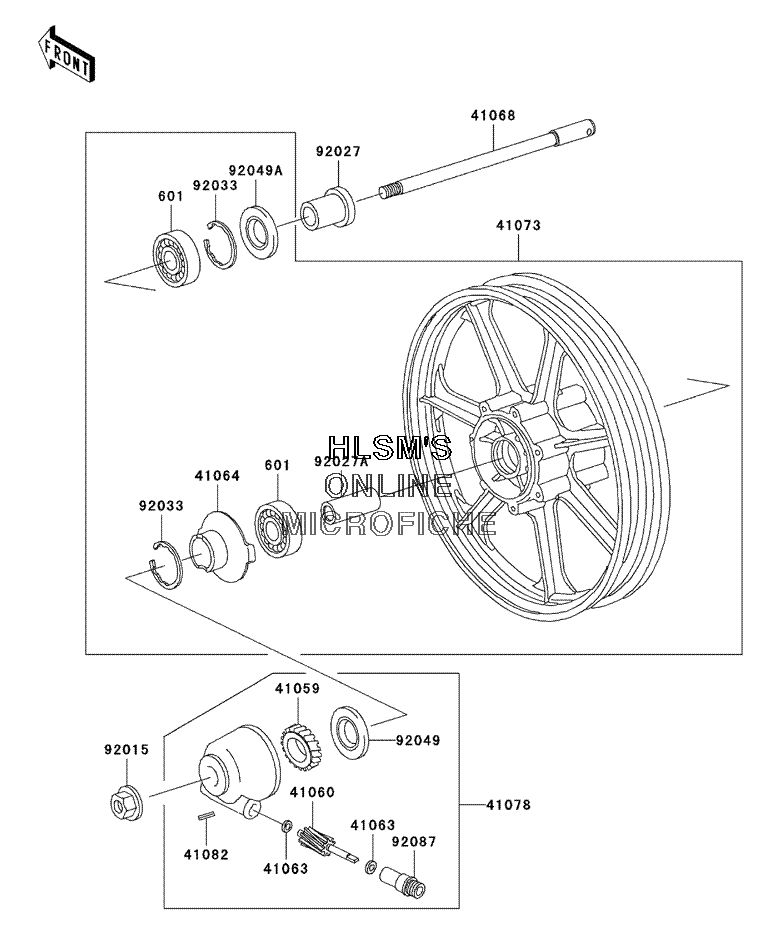

WHEEL - FRONT для Kawasaki Vulcan 750 - 2004 года выпуска
-
№АртикулНазвание
-
601601B6302UG BEARING, BALL, #6302UGBEARING, BALL, #6302UG
-
4105941059-026 GEAR, METER SCREW (26 TEETH)GEAR, METER SCREW (26 TEETH)
-
4106041060-1016 GEAR, METER SCREW (9 TEETH)GEAR, METER SCREW (9 TEETH)
-
4106341063-001 WASHER, 5.1X9X0.4WASHER, 5.1X9X0.4
-
4106441064-1006 RECEIVER, SPEEDOMETERRECEIVER, SPEEDOMETER
-
4106841068-1189 AXLE, FRONTAXLE, FRONT
-
4107341073-1591-CX WHEEL, ASSY, FRONT (SILVER NO.1)WHEEL, ASSY, FRONT (SILVER NO.1)
-
4107841078-1024 CASE, ASSY, METER GEAR (F.BLACK)CASE, ASSY, METER GEAR (F.BLACK)
-
4108241082-001 PIN, SPRINGPIN, SPRING
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
9202792027-1225 COLLAR, L=30COLLAR, L=30
-
92027A92027-1866 COLLAR, L=70COLLAR, L=70
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204992049-1057 SEAL, OIL, BJN30427, C3SEAL, OIL, BJN30427, C3
-
92049A92049-1058 SEAL, OIL, BJN22425SEAL, OIL, BJN22425
-
9208792087-1002 BUSHING, METER GEARBUSHING, METER GEAR
