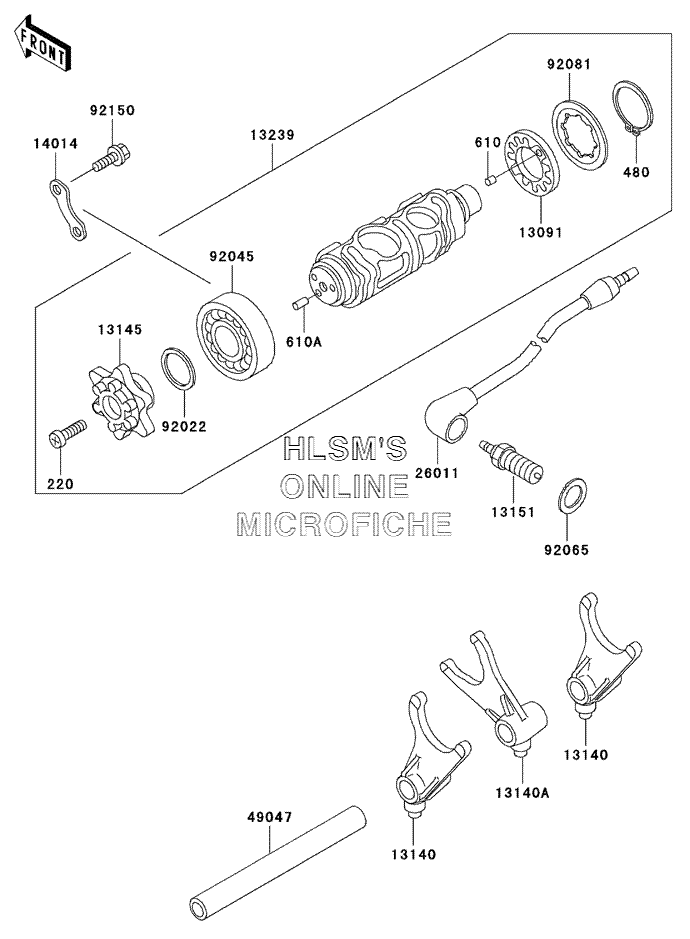

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Vulcan 800 Classic - 2004 года выпуска
-
№АртикулНазвание
-
220220B0630 SCREW, PAN, CROS, 6X30SCREW, PAN, CROS, 6X30
-
480480J2200 CIRCLIP, TYPE, C, 22MMCIRCLIP, TYPE, C, 22MM
-
610610A0404 ROLLER, 4X4ROLLER, 4X4
-
610A610A0410 ROLLER, 4X10ROLLER, 4X10
-
1309113091-1389 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1126 FORK, SHIFTFORK, SHIFT
-
13140A13140-1138 FORK, SHIFTFORK, SHIFT
-
1314513145-1051 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1315113151-1085 SWITCH, COMPSWITCH, COMP
-
1323913239-1126 DRUM, ASSY, CHANGEDRUM, ASSY, CHANGE
-
1401414014-1014 PLATE, POSITIONPLATE, POSITION
-
2601126011-1627 WIRE, LEADWIRE, LEAD
-
4904749047-1059 ROD, SHIFTROD, SHIFT
-
9202292022-161 WASHER, 25.3X30X1WASHER, 25.3X30X1
-
9204592045-1030 BEARING, BALL, 16005ZBEARING, BALL, 16005Z
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9208192081-1895 SPRINGSPRING
-
9215092150-1868 BOLT, 6X12BOLT, 6X12
