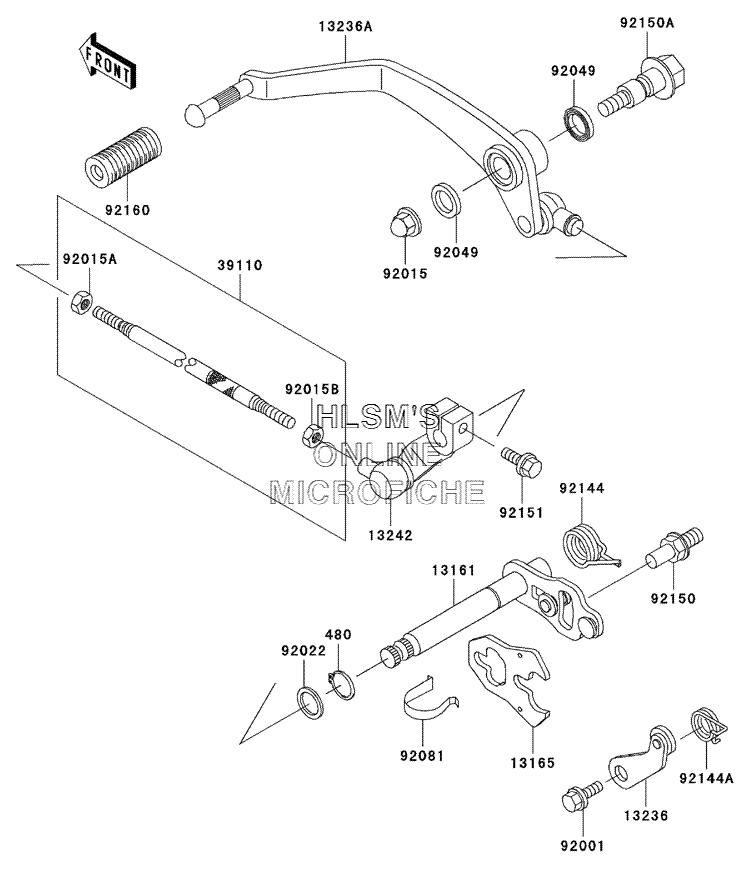

GEAR CHANGE MECHANISM для Kawasaki Vulcan 800 Classic - 2004 года выпуска
-
№АртикулНазвание
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
1316113161-1218 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1151 PAWL, CHANGE LEVERPAWL, CHANGE LEVER
-
1323613236-1126 LEVER, COMP, POSITIONLEVER, COMP, POSITION
-
13236A13236-1407 LEVER, COMPLEVER, COMP
-
1324213242-1290 LEVER, ASSY, CHANGELEVER, ASSY, CHANGE
-
3911039110-1124 ROD, ASSY, TIEROD, ASSY, TIE
-
9200192001-1715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
9201592015-1370 NUT, CAP, 8MMNUT, CAP, 8MM
-
92015A92015-1443 NUT, 6MMNUT, 6MM
-
92015B92015-1444 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
9202292022-1224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
9204992049-1398 SEAL, OIL, VB13193SEAL, OIL, VB13193
-
9208192081-1829 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214492144-1345 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
92144A92144-1850 SPRING, LEVERSPRING, LEVER
-
9215092150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92150A92150-1908 BOLT, CHANGE PEDALBOLT, CHANGE PEDAL
-
9215192151-1450 BOLT, 6X20BOLT, 6X20
-
9216092160-1637 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
