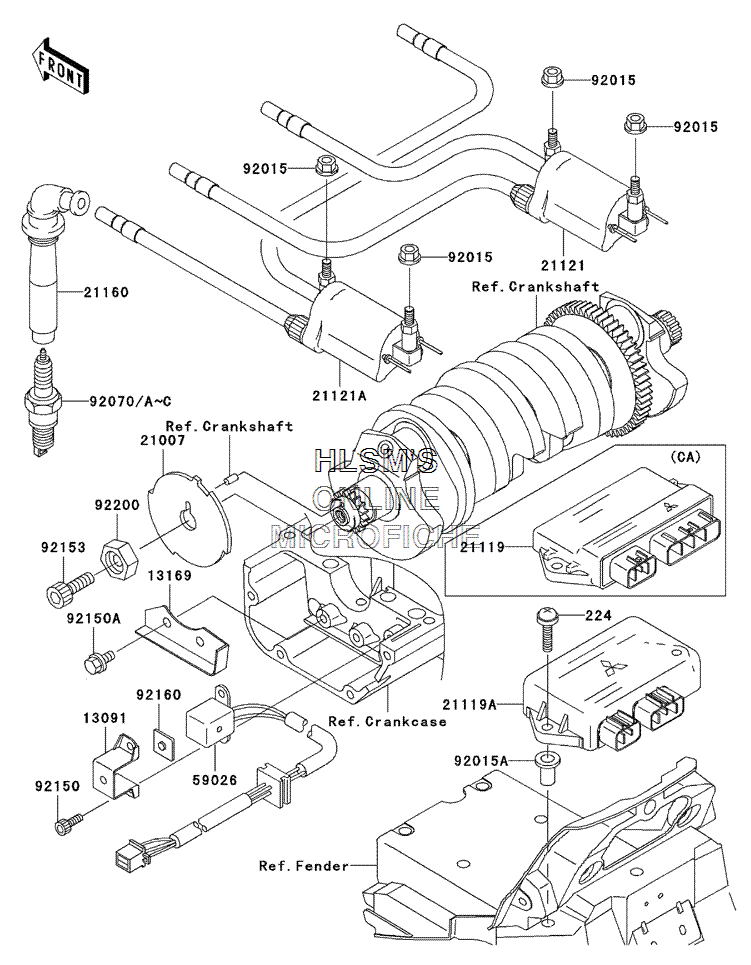

IGNITION SYSTEM для Kawasaki ZRX1200 - 2004 года выпуска
-
№АртикулНазвание
-
224224C0625 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
1309113091-1562 HOLDERHOLDER
-
1316913169-1748 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
2100721007-1277 ROTOR, PULSINGROTOR, PULSING
-
2111921119-0029 IGNITER (CALIF. ONLY)IGNITER (CALIF. ONLY)
-
21119A21119-1585 IGNITER (EXCEPT CALIF.)IGNITER (EXCEPT CALIF.)
-
2112121121-1268 COIL, IGNITION, #2 AND #3COIL, IGNITION, #2 AND #3
-
21121A21121-1300 COIL, IGNITIONCOIL, IGNITION
-
2116021160-1098 CAP, ASSY, PLUGCAP, ASSY, PLUG
-
5902659026-1132 COIL, PULSINGCOIL, PULSING
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1700 NUT PLUG, SPARKNUT PLUG, SPARK
-
92070B92070-1264 PLUG, SPARK, CR9EK (NGK)PLUG, SPARK, CR9EK (NGK)
-
92070C92070-1265 PLUG, SPARK, CR8EK (NGK) (OPT)PLUG, SPARK, CR8EK (NGK) (OPT)
-
9215092150-1180 BOLT, SOCKET, 5X14BOLT, SOCKET, 5X14
-
92150A92150-1841 BOLT, 6X12BOLT, 6X12
-
9215392153-1191 BOLT, M8X25BOLT, M8X25
-
9216092160-1091 DAMPERDAMPER
-
9220092200-1173 WASHER, ROTORWASHER, ROTOR
