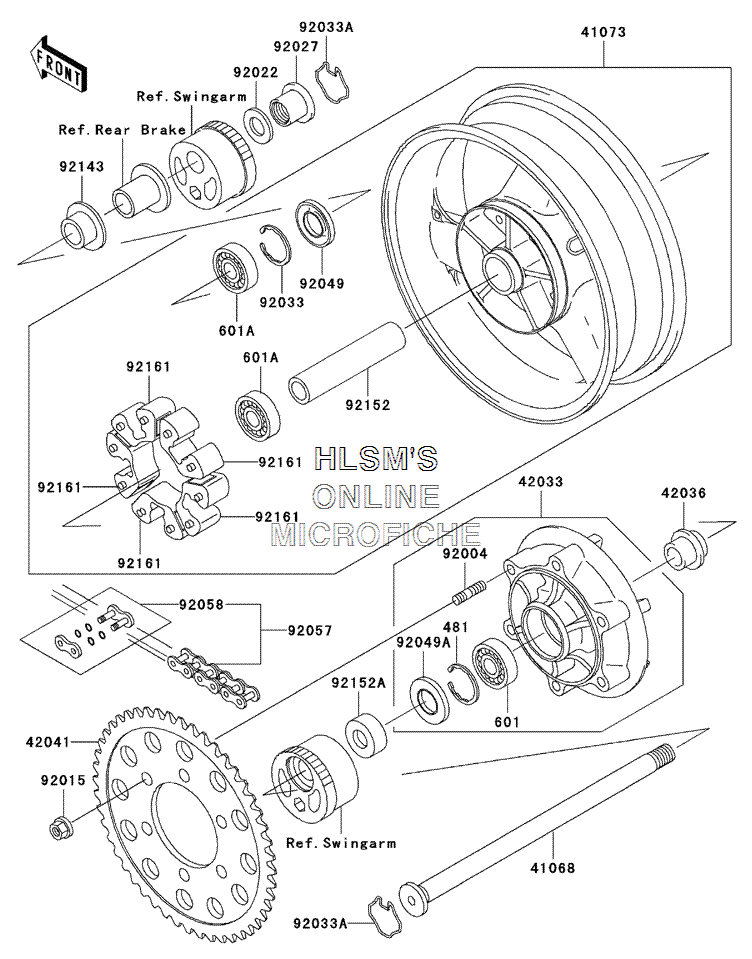

WHEEL - REAR W/ CHAIN для Kawasaki ZRX1200 - 2004 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
601601B6006G BEARING, BALL, #6006GBEARING, BALL, #6006G
-
601A601B6304UU BEARING, BALL, #6304UUC3BEARING, BALL, #6304UUC3
-
4106841068-1429 AXLE, REARAXLE, REAR
-
4107341073-0017-R2 WHEEL, ASSY, REAR (BLACK)WHEEL, ASSY, REAR (BLACK)
-
4203342033-1203 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1366 SLEEVE, REAR HUB COUPLING, L=22SLEEVE, REAR HUB COUPLING, L=22
-
4204142041-1387 SPROCKET, HUB (42 TEETH)SPROCKET, HUB (42 TEETH)
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1618 WASHER, 23X32X2.3WASHER, 23X32X2.3
-
9202792027-1810 COLLAR, REAR AXLE, L=28COLLAR, REAR AXLE, L=28
-
9203392033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
92033A92033-1156 RING, SNAP, REAR AXLERING, SNAP, REAR AXLE
-
9204992049-1061 SEAL, OIL, 28X52X5SEAL, OIL, 28X52X5
-
92049A92049-1263 SEAL, OIL, PJN40556SEAL, OIL, PJN40556
-
9205792057-0067 CHAIN, DRIVE, DID50VA8X110LCHAIN, DRIVE, DID50VA8X110L
-
9205892058-0004 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9214392143-1915 COLLAR, REAR AXLE, L=18 (RIGHT)COLLAR, REAR AXLE, L=18 (RIGHT)
-
9215292152-0129 COLLAR, REAR HUBCOLLAR, REAR HUB
-
92152A92152-1280 COLLAR, REAR AXLE, L=19 (LEFT)COLLAR, REAR AXLE, L=19 (LEFT)
-
9216192161-1069 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
