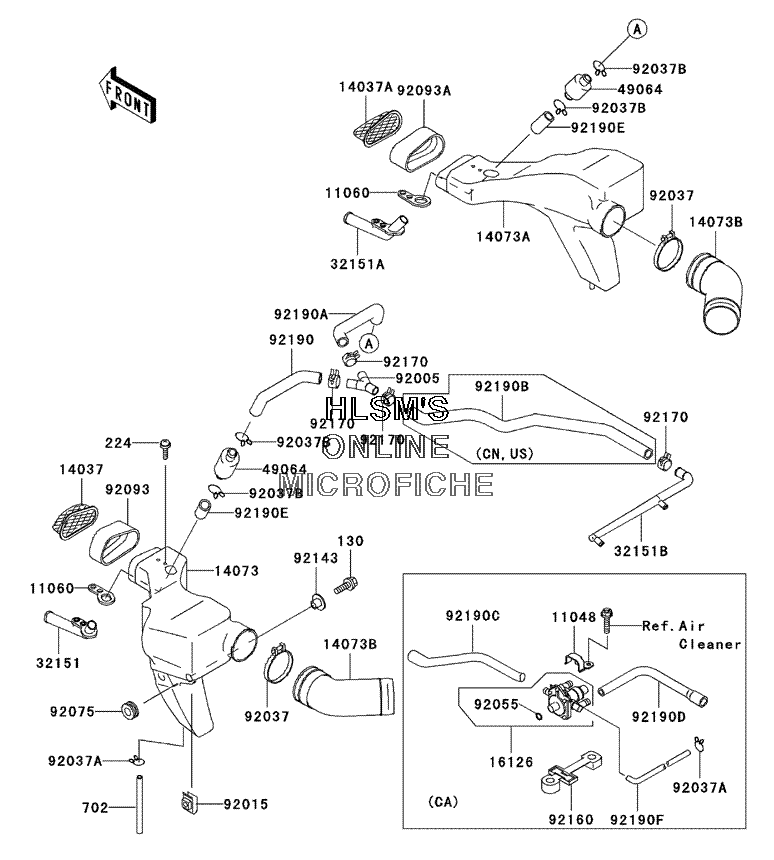

AIR DUCT для Kawasaki ZZR600 - 2004 года выпуска
-
№АртикулНазвание
-
1104811048-1179 BRACKET, VALVE (CALIF. ONLY)BRACKET, VALVE (CALIF. ONLY)
-
1106011060-1343 GASKETGASKET
-
1403714037-1166 SCREEN, AIR DUCT (LEFT)SCREEN, AIR DUCT (LEFT)
-
14037A14037-1167 SCREEN, AIR DUCT (RIGHT)SCREEN, AIR DUCT (RIGHT)
-
1407314073-1549 DUCT, AIR INTAKE (LEFT)DUCT, AIR INTAKE (LEFT)
-
14073A14073-1550 DUCT, AIR INTAKE (RIGHT)DUCT, AIR INTAKE (RIGHT)
-
14073B14073-1574 DUCT, DUCT, AIR FILTERDUCT, DUCT, AIR FILTER
-
1612616126-1274 VALVE, CANISTER (CALIF. ONLY)VALVE, CANISTER (CALIF. ONLY)
-
3215132151-1462 PIPE, LEFTPIPE, LEFT
-
32151A32151-1463 PIPE, RIGHTPIPE, RIGHT
-
32151B32151-1540 PIPEPIPE
-
4906449064-1055 FILTER, AIRFILTER, AIR
-
9200592005-1250 FITTING, Y, TIPEFITTING, Y, TIPE
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9203792037-1409 CLAMP, AIR FILTERCLAMP, AIR FILTER
-
92037A92037-1712 CLAMP (EXCEPT CALIF.)CLAMP (EXCEPT CALIF.)
-
92037A92037-1712 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92037B92037-213 CLAMP, TUBECLAMP, TUBE
-
9205592055-1524 O-RING (CALIF. ONLY)O-RING (CALIF. ONLY)
-
9207592075-1634 DAMPERDAMPER
-
9209392093-1347 SEAL (LEFT)SEAL (LEFT)
-
92093A92093-1348 SEAL (RIGHT)SEAL (RIGHT)
-
9214392143-1016 COLLAR, L=9.6COLLAR, L=9.6
-
9216092160-1431 DAMPER (CALIF. ONLY)DAMPER (CALIF. ONLY)
-
9217092170-1060 CLAMPCLAMP
-
9219092190-1413 TUBE, 14X20X158 (LEFT)TUBE, 14X20X158 (LEFT)
-
92190A92190-1414 TUBE, 14X20X158 (RIGHT)TUBE, 14X20X158 (RIGHT)
-
92190B92190-1415 TUBE, 14X20X525 (EXCEPT CALIF.)TUBE, 14X20X525 (EXCEPT CALIF.)
-
92190C92190-1422 TUBE, VALVE, FITTING (CALIF. ONLY)TUBE, VALVE, FITTING (CALIF. ONLY)
-
92190D92190-1423 TUBE, VALVE, FITTING (CALIF. ONLY)TUBE, VALVE, FITTING (CALIF. ONLY)
-
92190E92190-1429 TUBE, 14X20X28TUBE, 14X20X28
-
92190F92190-1444 TUBE, 4X9X276 (CALIF. ONLY)TUBE, 4X9X276 (CALIF. ONLY)
-
130130H0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
224224C0512 SCREW, PAN, WP, CROS, 5X12SCREW, PAN, WP, CROS, 5X12
-
702702A07120 TUBE, RUBBER, 7X10X120TUBE, RUBBER, 7X10X120
