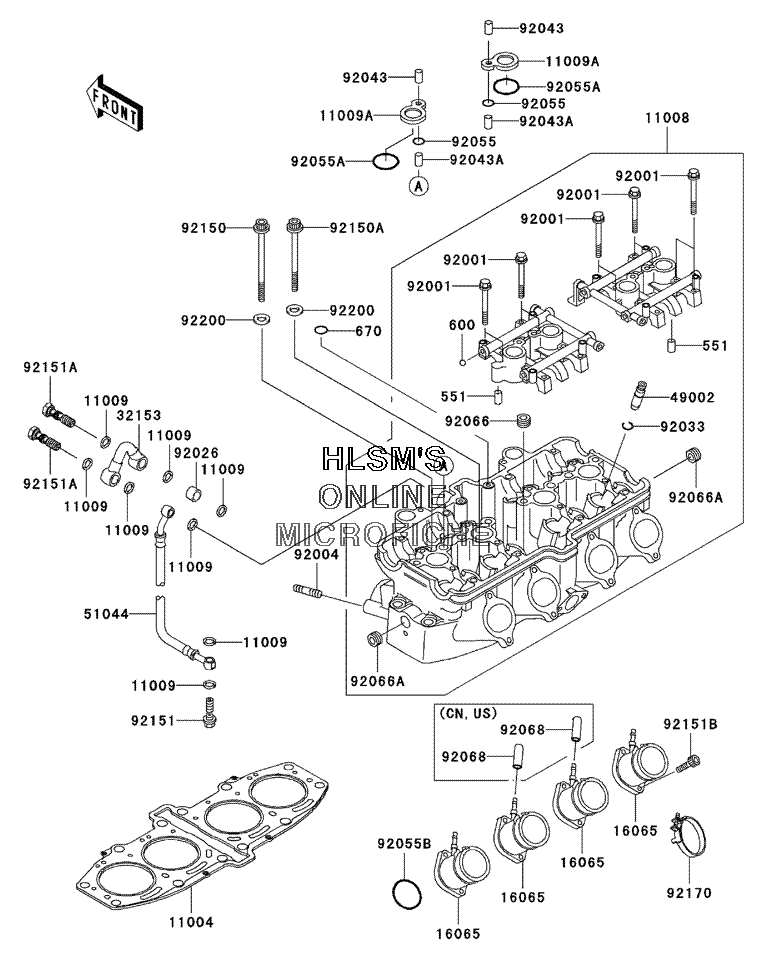

CYLINDER HEAD для Kawasaki ZZR600 - 2004 года выпуска
-
№АртикулНазвание
-
551551A0612 PIN, DOWEL, 6X12PIN, DOWEL, 6X12
-
600600A0900 BALL, STEEL, 9/32"BALL, STEEL, 9/32"
-
670670D1508 O-RING, 8MMO-RING, 8MM
-
1100411004-0021 GASKET, HEADGASKET, HEAD
-
1100811008-1273 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1105 GASKET, 10X14.5X1.5GASKET, 10X14.5X1.5
-
11009A11009-1990 GASKET, SPARK PLUGGASKET, SPARK PLUG
-
1606516065-1276 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3215332153-1418 PIPEPIPE
-
4900249002-1121 GUIDE, VALVEGUIDE, VALVE
-
5104451044-1213 TUBE, ASSY.TUBE, ASSY.
-
9200192001-1105 BOLT, FLANGED, 6X38BOLT, FLANGED, 6X38
-
9200492004-1186 STUD, 8X18STUD, 8X18
-
9202692026-1393 SPACER, 10.5X15.1X10SPACER, 10.5X15.1X10
-
9203392033-1247 RING, SNAPRING, SNAP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1469 O-RING, 11.5X1.5O-RING, 11.5X1.5
-
92055A92055-1470 O-RINGO-RING
-
92055B92055-1519 O-RING, 42X1.9O-RING, 42X1.9
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
92066A92066-1346 PLUG, PT3/8X10PLUG, PT3/8X10
-
9206892068-006 PLUG, 12X25 (EXCEPT CALIF.)PLUG, 12X25 (EXCEPT CALIF.)
-
9215092150-1368 BOLT, 10X165BOLT, 10X165
-
92150A92150-1369 BOLT, 10X151BOLT, 10X151
-
9215192151-1349 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
92151A92151-1867 BOLT, BANJO, 10X37BOLT, BANJO, 10X37
-
92151B92151-1869 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9217092170-1908 CLAMPCLAMP
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
