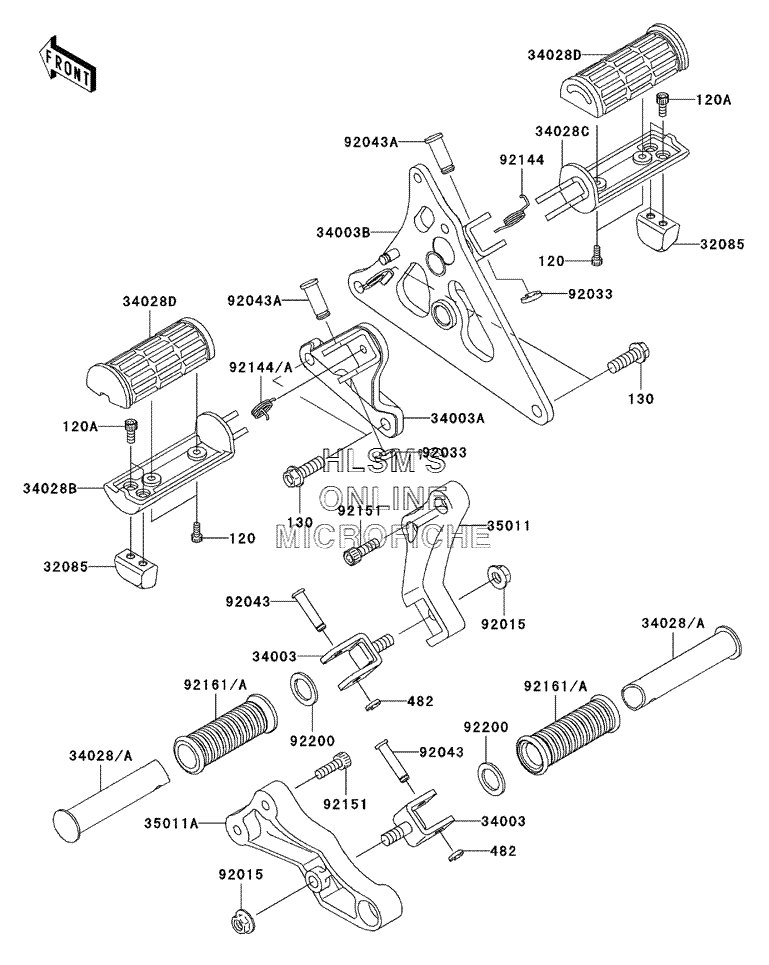

FOOTRESTS для Kawasaki Vulcan 1600 Mean Streak - 2005 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT-SOCKETBOLT-SOCKET
-
120A120S0614 BOLT-SOCKET, 6X14 (BLACK)BOLT-SOCKET, 6X14 (BLACK)
-
130130J1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
482482L7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
3208532085-1534 STOPPER, BANK SENSORSTOPPER, BANK SENSOR
-
3400334003-0015 HOLDER-STEP, REARHOLDER-STEP, REAR
-
34003A34003-1506 HOLDER-STEP, FRONT (LEFT)HOLDER-STEP, FRONT (LEFT)
-
34003B34003-1507 HOLDER-STEP, FRONT (RIGHT)HOLDER-STEP, FRONT (RIGHT)
-
34028A34028-0017 STEP, REARSTEP, REAR
-
34028B34028-1519 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028C34028-1520 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028D34028-1522 STEP, RUBBERSTEP, RUBBER
-
3501135011-1770 STAY, REAR STEP (LEFT)STAY, REAR STEP (LEFT)
-
35011A35011-1922 STAY, REAR STEP (RIGHT)STAY, REAR STEP (RIGHT)
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203392033-1166 RING-SNAP, 10MMRING-SNAP, 10MM
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1358 PIN, 12X37PIN, 12X37
-
9214492144-1126 SPRING, STEP RETURNSPRING, STEP RETURN
-
9215192151-1525 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9216192161-0232 DAMPER, STEPDAMPER, STEP
-
9220092200-1482 WASHER, 22.5X33X2.3WASHER, 22.5X33X2.3
