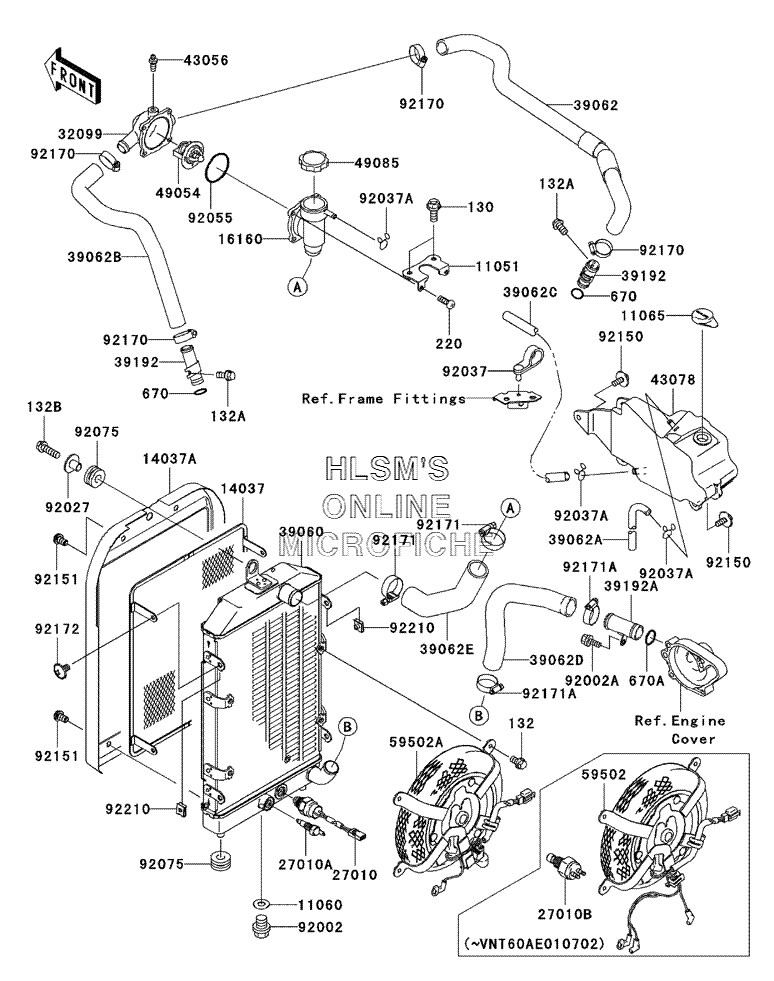

RADIATOR для Kawasaki Vulcan 1600 Mean Streak - 2005 года выпуска
-
№АртикулНазвание
-
1105111051-1535 BRACKET, THERMOSTAT CASEBRACKET, THERMOSTAT CASE
-
1106011060-1767 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1106511065-1093 CAP, COOLANTCAP, COOLANT
-
1403714037-0014 SCREEN, INNERSCREEN, INNER
-
14037A14037-1301 SCREENSCREEN
-
1616016160-0038 BODYBODY
-
2701027010-0024 SWITCH, FAN (SERIAL VNT60AE010703 AND ABOVE)SWITCH, FAN (SERIAL VNT60AE010703 AND ABOVE)
-
27010A27010-1305 SWITCH, WARNINGSWITCH, WARNING
-
3209932099-1201 CASE, THERMOSTATCASE, THERMOSTAT
-
3906039060-0002 RADIATORRADIATOR
-
3906239062-0030 HOSE-COOLING, THERMO-REAR CASEHOSE-COOLING, THERMO-REAR CASE
-
39062A39062-1258 HOSE-COOLINGHOSE-COOLING
-
39062B39062-1785 HOSE-COOLING, FRONT HEAD-THERMOHOSE-COOLING, FRONT HEAD-THERMO
-
39062C39062-1796 HOSE-COOLING, THERMO-RESERHOSE-COOLING, THERMO-RESER
-
39062D39062-1850 HOSE-COOLING, RADIATOR-PUMPHOSE-COOLING, RADIATOR-PUMP
-
39062E39062-1892 HOSE-COOLING, THERMO-RADIATORHOSE-COOLING, THERMO-RADIATOR
-
3919239192-1094 PIPE-WATERPIPE-WATER
-
39192A39192-1096 PIPE-WATERPIPE-WATER
-
4305643056-003 BREATHERBREATHER
-
4307843078-1180 RESERVOIRRESERVOIR
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-0002 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
59502A59502-0013 FAN-ASSY (SERIAL VNT60AE010703 AND ABOVE)FAN-ASSY (SERIAL VNT60AE010703 AND ABOVE)
-
9200292002-1311 BOLT, FLANGED, 10X10BOLT, FLANGED, 10X10
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
9202792027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 RING-O, 53.5X2.6RING-O, 53.5X2.6
-
9207592075-1690 DAMPERDAMPER
-
9215092150-1392 BOLT, 6X14BOLT, 6X14
-
9215192151-1809 BOLT, 6X10BOLT, 6X10
-
9217092170-1032 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217192171-0179 CLAMPCLAMP
-
130130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
132132J0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132J0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220220D0514 SCREW-PAN-CROS, 5X14SCREW-PAN-CROS, 5X14
-
670670B2014 O RING, 14MMO RING, 14MM
-
670A670B2018 O RING, 18MMO RING, 18MM
-
92171A92171-0261 CLAMPCLAMP
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
-
9221092210-1125 NUTNUT
