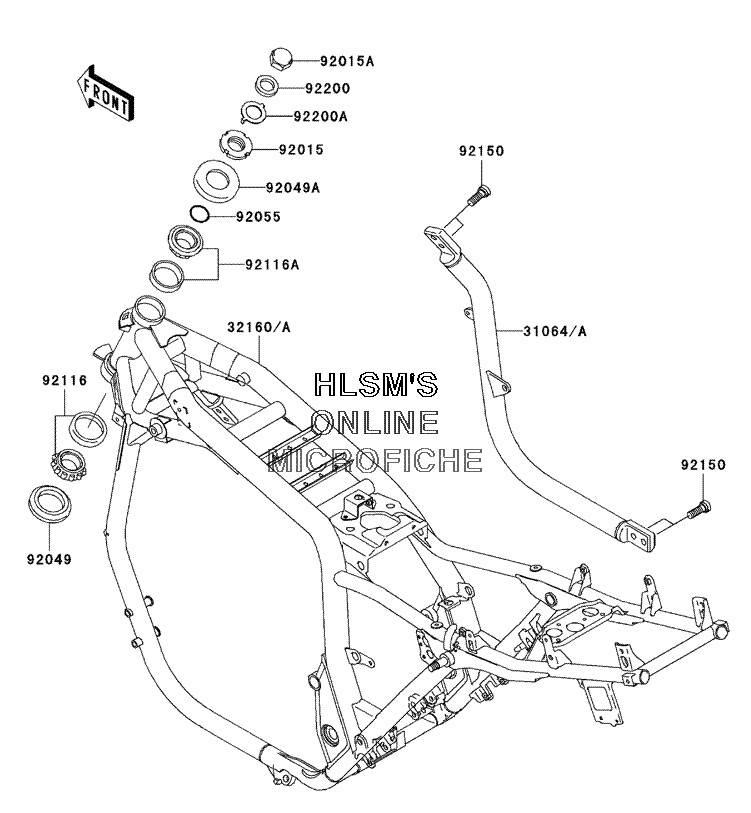

FRAME для Kawasaki ZRX1200 - 2005 года выпуска
-
№АртикулНазвание
-
3106431064-0030 PIPE, COMP, DOWNTUBE (RIGHT)PIPE, COMP, DOWNTUBE (RIGHT)
-
32160A32160-0112 FRAME, COMPFRAME, COMP
-
9201592015-1546 NUT, 25MM, T=12NUT, 25MM, T=12
-
92015A92015-1736 NUT, CAP, 18MMNUT, CAP, 18MM
-
9204992049-1162 SEAL, OIL, XMHE36X52X4JSEAL, OIL, XMHE36X52X4J
-
92049A92049-1214 SEAL, OIL, STEERING STEMSEAL, OIL, STEERING STEM
-
9205592055-1459 O-RING, ID=24.5O-RING, ID=24.5
-
9211692116-1009 BEARING, ROLLER, HR320/28XJBEARING, ROLLER, HR320/28XJ
-
92116A92116-1056 BEARING, ROLLER, HI, CAP32005JR, 1BEARING, ROLLER, HI, CAP32005JR, 1
-
9215092150-1690 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
9220092200-0100 WASHER, 19X32X2.6WASHER, 19X32X2.6
-
92200A92200-1357 WASHER, CLAW, 18.5X30X2.3WASHER, CLAW, 18.5X30X2.3
