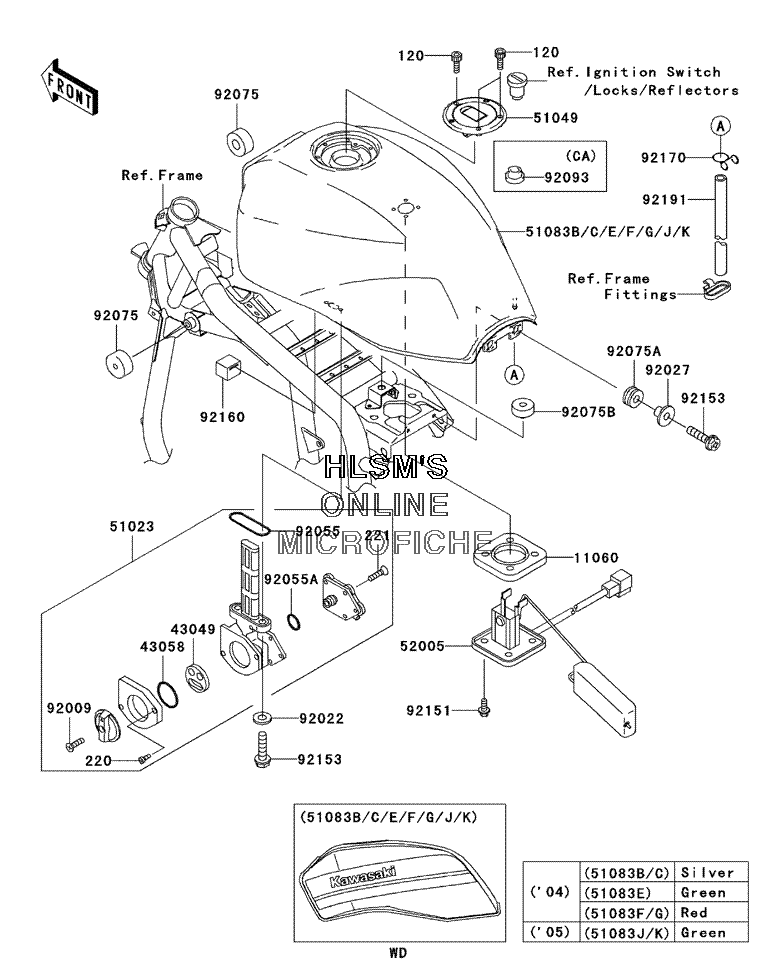

FUEL TANK для Kawasaki ZRX1200 - 2005 года выпуска
-
№АртикулНазвание
-
1106011060-1952 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
4304943049-1075 PACKING, TAP VALVEPACKING, TAP VALVE
-
4305843058-1083 RING, TAP LEVERRING, TAP LEVER
-
5102351023-1260 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5104951049-0010 CAP, TANK, FUELCAP, TANK, FUEL
-
51083J51083-5411-8N TANK, COMP, FUEL (C.L.GREEN) (EXCEPT CALIF.)TANK, COMP, FUEL (C.L.GREEN) (EXCEPT CALIF.)
-
51083K51083-5412-8N TANK, COMP, FUEL (C.L.GREEN) (CALIF. ONLY)TANK, COMP, FUEL (C.L.GREEN) (CALIF. ONLY)
-
5200552005-1145 GAUGE, FUELGAUGE, FUEL
-
9200992009-1742 SCREW, 4X12SCREW, 4X12
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9202792027-251 COLLAR, L=13.1COLLAR, L=13.1
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1649 O-RINGO-RING
-
9207592075-101 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1690 DAMPERDAMPER
-
92075B92075-1737 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9215192151-1599 BOLT, 5X12BOLT, 5X12
-
120120S0516 BOLT, SOCKETBOLT, SOCKET
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
9215392153-0514 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216092160-1626 DAMPERDAMPER
-
9217092170-1834 CLAMP, TUBECLAMP, TUBE
-
9219192191-1138 TUBE, 7X12X600TUBE, 7X12X600
