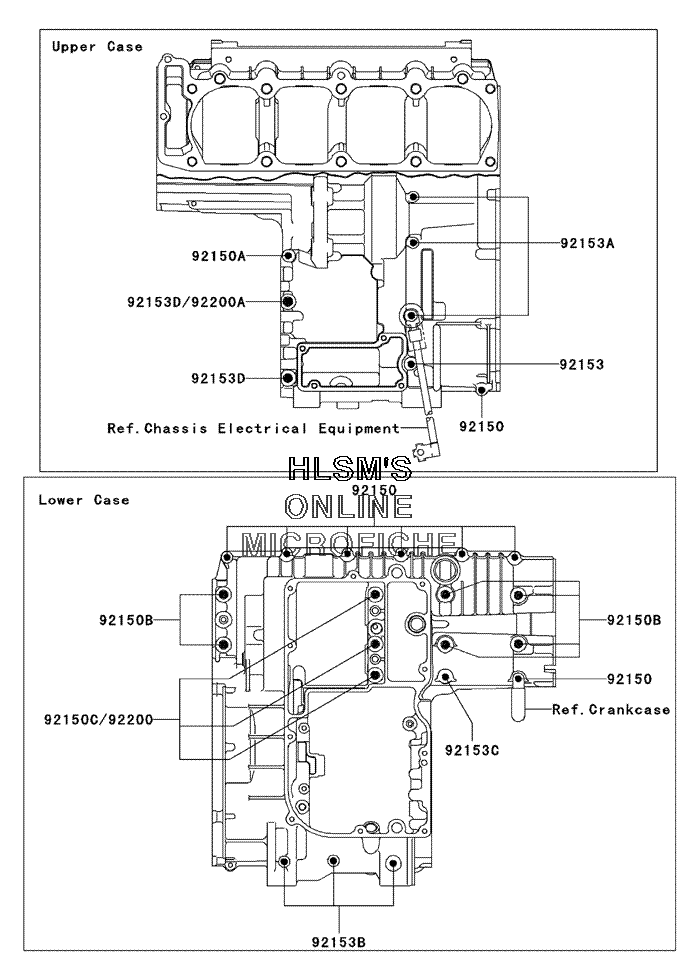

CRANKCASE BOLT PATTERN для Kawasaki ZZR1200 - 2005 года выпуска
-
№АртикулНазвание
-
9215092150-1301 BOLT, 6X38BOLT, 6X38
-
92150A92150-1302 BOLT, 6X55BOLT, 6X55
-
92150B92150-1364 BOLT, 9X90BOLT, 9X90
-
92150C92150-1365 BOLT, 9X140BOLT, 9X140
-
9215392153-1106 BOLT, 6X85BOLT, 6X85
-
92153A92153-1107 BOLT, 6X115BOLT, 6X115
-
92153B92153-1108 BOLT, 6X120BOLT, 6X120
-
92153C92153-1109 BOLT, 7X38BOLT, 7X38
-
92153D92153-1110 BOLT, 8X63BOLT, 8X63
-
9220092200-1037 WASHER, 9.5X18X1.2WASHER, 9.5X18X1.2
-
92200A92200-1063 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
