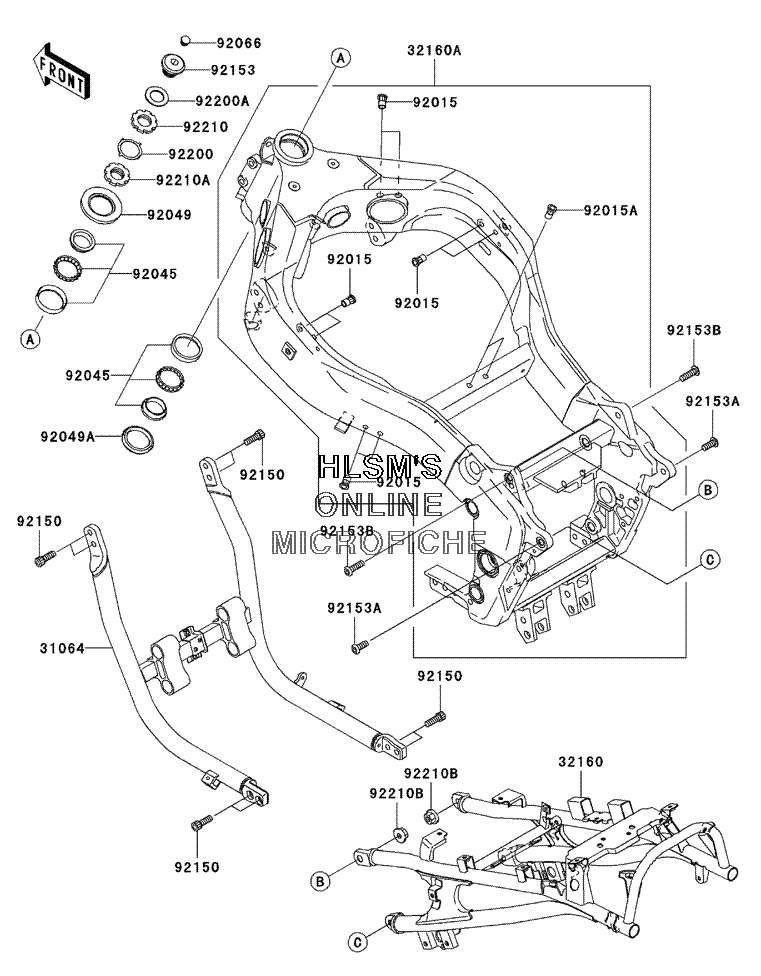

FRAME для Kawasaki ZZR1200 - 2005 года выпуска
-
№АртикулНазвание
-
3106431064-1246 PIPE, COMP, SIDE FRAMEPIPE, COMP, SIDE FRAME
-
3216032160-1776-10 FRAME, COMP, REAR (BLACK)FRAME, COMP, REAR (BLACK)
-
32160A32160-1780-458 FRAME, COMP, AL, FRONT (P.SILVER)FRAME, COMP, AL, FRONT (P.SILVER)
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1792 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
9204592045-1384 BEARING, BALL, SF07A17PX1V1BEARING, BALL, SF07A17PX1V1
-
9204992049-1382 SEAL, OIL, XMH 43 75 6.4JSEAL, OIL, XMH 43 75 6.4J
-
92049A92049-1383 SEAL, OIL, XMHE 43 55 4JSEAL, OIL, XMHE 43 55 4J
-
9206692066-1184 PLUGPLUG
-
9215092150-1690 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
9215392153-0474 BOLT, 26MMBOLT, 26MM
-
92153A92153-1136 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92153B92153-1164 BOLT, SOCKET, 10X35BOLT, SOCKET, 10X35
-
9220092200-0036 WASHERWASHER
-
92200A92200-0081 WASHER, 27X42X2.3WASHER, 27X42X2.3
-
9221092210-0062 NUT, STEERING STEM 35MMNUT, STEERING STEM 35MM
-
92210A92210-0077 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
92210B92210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
