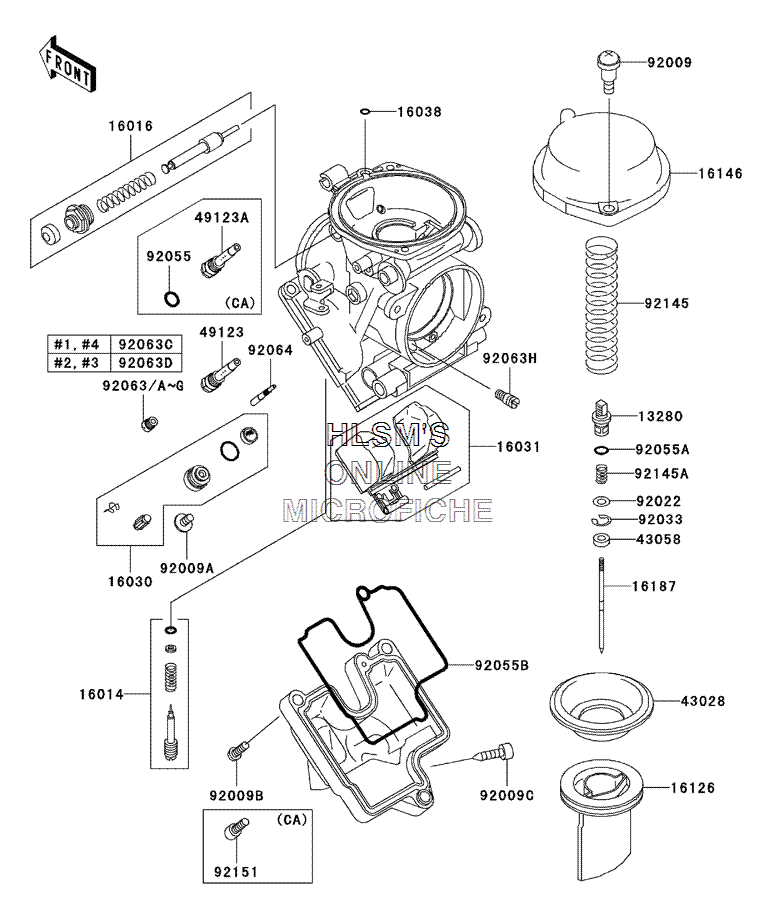

CARBURETOR PARTS для Kawasaki ZZR600 - 2005 года выпуска
-
№АртикулНазвание
-
1328013280-1095 HOLDERHOLDER
-
1601416014-1100 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1107 PLUNGER, STARTERPLUNGER, STARTER
-
1603016030-1088 VALVE-FLOAT, #1.5VALVE-FLOAT, #1.5
-
1603116031-1096 FLOATFLOAT
-
1603816038-022 GASKET, "O"RINGGASKET, "O"RING
-
1612616126-1394 VALVE, VACUUMVALVE, VACUUM
-
1614616146-1197 COVER-ASSY, MIXINGCOVER-ASSY, MIXING
-
1618716187-1135 NEEDLE-JET, 5EI10NEEDLE-JET, 5EI10
-
4302843028-1086 DIAPHRAGM, VACUUM VALVEDIAPHRAGM, VACUUM VALVE
-
4305843058-1094 RINGRING
-
4912349123-1051 HOLDER-MAIN JET (US ONLY)HOLDER-MAIN JET (US ONLY)
-
49123A49123-1052 HOLDER-MAIN JET (CALIF, ONLY)HOLDER-MAIN JET (CALIF, ONLY)
-
9200992009-1850 SCREW, MIXING COVERSCREW, MIXING COVER
-
92009A92009-1853 SCREW, FLOAT VALVESCREW, FLOAT VALVE
-
92009B92009-1854 SCREW, FLOAT CHAMBER (US ONLY)SCREW, FLOAT CHAMBER (US ONLY)
-
92009C92009-1937 SCREW, DRAINSCREW, DRAIN
-
9202292022-1123 WASHER, JET NEEDLEWASHER, JET NEEDLE
-
9203392033-1299 RING-SNAPRING-SNAP
-
9205592055-1084 RING-O (CALIF, ONLY)RING-O (CALIF, ONLY)
-
92055A92055-1093 RING-O, DRAIN PLUGRING-O, DRAIN PLUG
-
92055B92055-1588 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9206392063-1438 JET-MAIN, #A147.5 (OPT)JET-MAIN, #A147.5 (OPT)
-
92063A92063-1440 JET-MAIN, #A150 (OPT)JET-MAIN, #A150 (OPT)
-
92063B92063-1441 JET-MAIN, #A152.5 (OPT)JET-MAIN, #A152.5 (OPT)
-
92063C92063-1442 JET-MAIN, #A155JET-MAIN, #A155
-
92063D92063-1443 JET-MAIN, #A157.5JET-MAIN, #A157.5
-
92063E92063-1455 JET-MAIN, #A160 (OPT)JET-MAIN, #A160 (OPT)
-
92063F92063-1456 JET-MAIN, #A162.5 (OPT)JET-MAIN, #A162.5 (OPT)
-
92063G92063-1457 JET-MAIN, #A165 (OPT)JET-MAIN, #A165 (OPT)
-
92063H92063-1471 JET-MAIN, #A125JET-MAIN, #A125
-
9206492064-1195 JET-PILOT, #12.5JET-PILOT, #12.5
-
9214592145-1182 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
92145A92145-1183 SPRINGSPRING
-
9215192151-1406 BOLT, SOCKET, FLOAT CHAMBER (CALIF, ONLY)BOLT, SOCKET, FLOAT CHAMBER (CALIF, ONLY)
