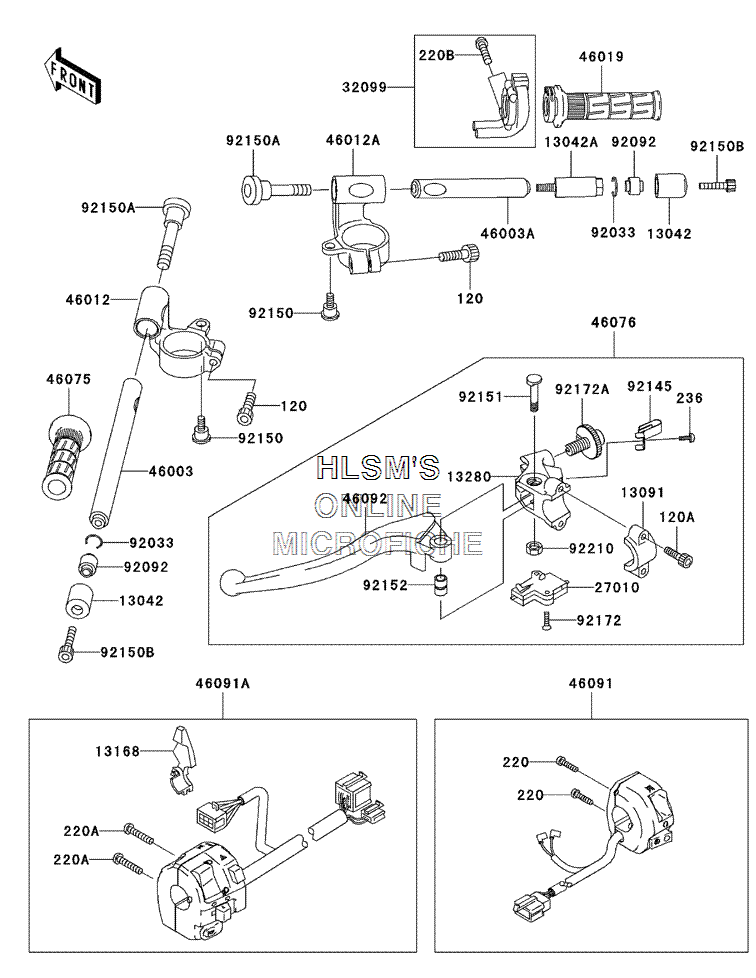

HANDLEBAR для Kawasaki ZZR600 - 2005 года выпуска
-
№АртикулНазвание
-
120120P0830 BOLT-SOCKET, 8X30BOLT-SOCKET, 8X30
-
120A120S0620 BOLT-SOCKETBOLT-SOCKET
-
220220C0522 SCREW-PAN-CROSSCREW-PAN-CROS
-
220A220C0525 SCREW-PAN-CROSSCREW-PAN-CROS
-
220B220C0535 SCREW-PAN-CROSSCREW-PAN-CROS
-
236236C0410 SCREW-PAN-WSP-CROS, 4X10SCREW-PAN-WSP-CROS, 4X10
-
1304213042-1133 WEIGHT, HANDLEWEIGHT, HANDLE
-
13042A13042-1144 WEIGHT, HANDLEWEIGHT, HANDLE
-
1309113091-1624 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1316813168-1516 LEVER, CHOKELEVER, CHOKE
-
1328013280-1160 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1447 SWITCH, CLUTCHSWITCH, CLUTCH
-
3209932099-1193 CASE, THROTTLE CABLECASE, THROTTLE CABLE
-
4600346003-1523 HANDLE (LEFT)HANDLE (LEFT)
-
46003A46003-1553 HANDLE (RIGHT)HANDLE (RIGHT)
-
4601246012-1298 HOLDER-HANDLE (LEFT)HOLDER-HANDLE (LEFT)
-
46012A46012-1299 HOLDER-HANDLE (RIGHT)HOLDER-HANDLE (RIGHT)
-
4601946019-1095 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-1144 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1248 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-1823 HOUSING-ASSY-CONTROL (RIGHT)HOUSING-ASSY-CONTROL (RIGHT)
-
46091A46091-1857 HOUSING-ASSY-CONTROL (LEFT)HOUSING-ASSY-CONTROL (LEFT)
-
4609246092-0003 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
9203392033-1102 RING-SNAP, OD=22.2RING-SNAP, OD=22.2
-
9209292092-1075 BUSHING-RUBBER, HANDLEBUSHING-RUBBER, HANDLE
-
9214592145-1286 SPRINGSPRING
-
9215092150-1090 BOLT, 6MMBOLT, 6MM
-
92150A92150-1469 BOLT, SOCKET, 10X37BOLT, SOCKET, 10X37
-
92150B92150-1604 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215192151-1523 BOLTBOLT
-
9215292152-0103 COLLARCOLLAR
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
-
92172A92172-1060 SCREW, ADJUST NUTSCREW, ADJUST NUT
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
