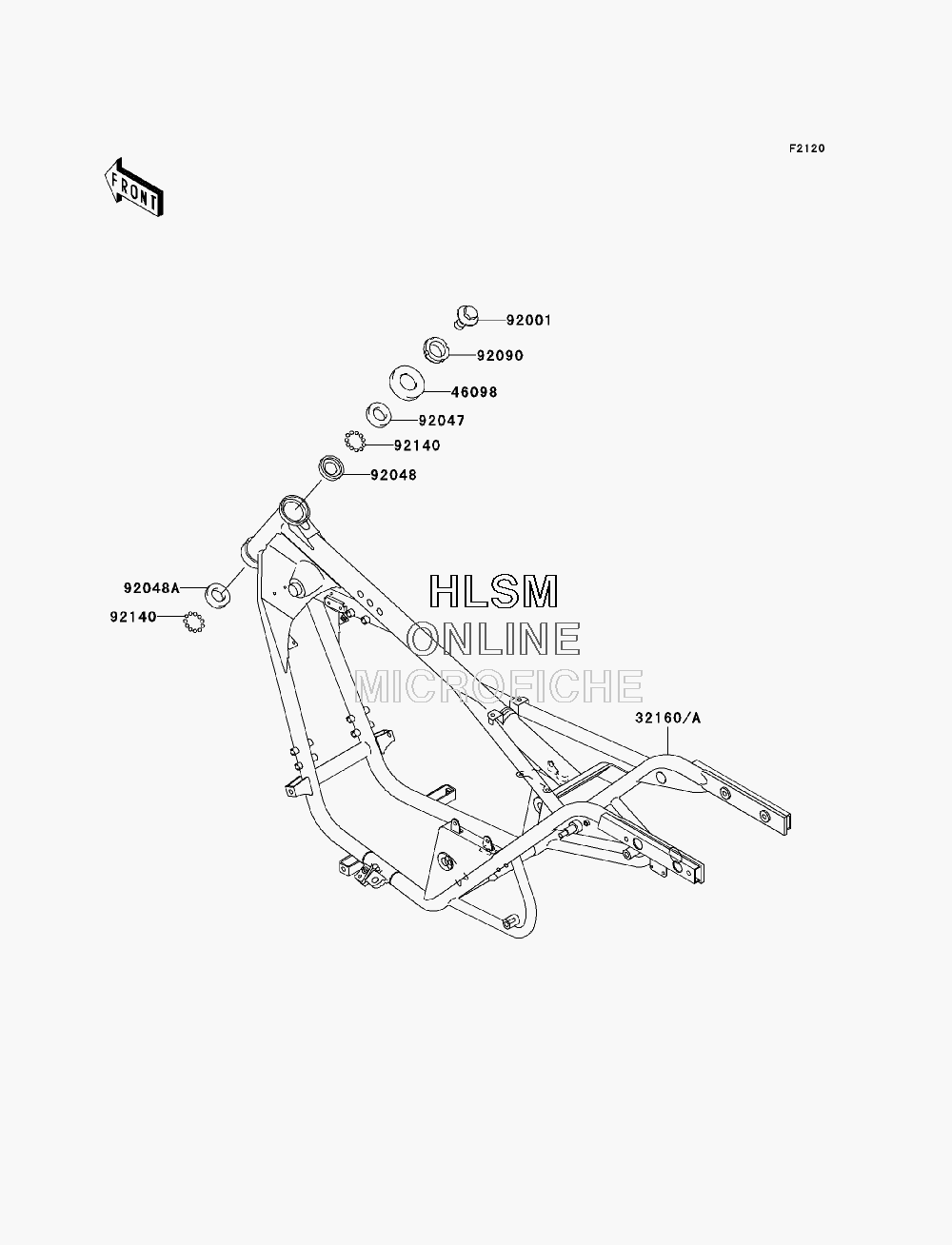

FRAME для Kawasaki Eliminator 125 - 2006 года выпуска
-
№АртикулНазвание
-
3216032160-1644 FRAME-COMP (EXCEPT CALIF.)FRAME-COMP (EXCEPT CALIF.)
-
32160A32160-1765 FRAME-COMP (CALIF. ONLY)FRAME-COMP (CALIF. ONLY)
-
4609846098-016 CAP, STEERING STEMCAP, STEERING STEM
-
9200192001-1488 BOLT, FLANGED, 16X22BOLT, FLANGED, 16X22
-
9204792047-011 RACE, STEERING STEM BEARINGRACE, STEERING STEM BEARING
-
9204892048-006 RACE, STEERING STEM BEARINGRACE, STEERING STEM BEARING
-
92048A92048-008 RACE, STEERING STEM BEARINGRACE, STEERING STEM BEARING
-
9209092090-007 NUT, 30MMNUT, 30MM
-
9214092140-0008 BALL, 6.35MMBALL, 6.35MM
