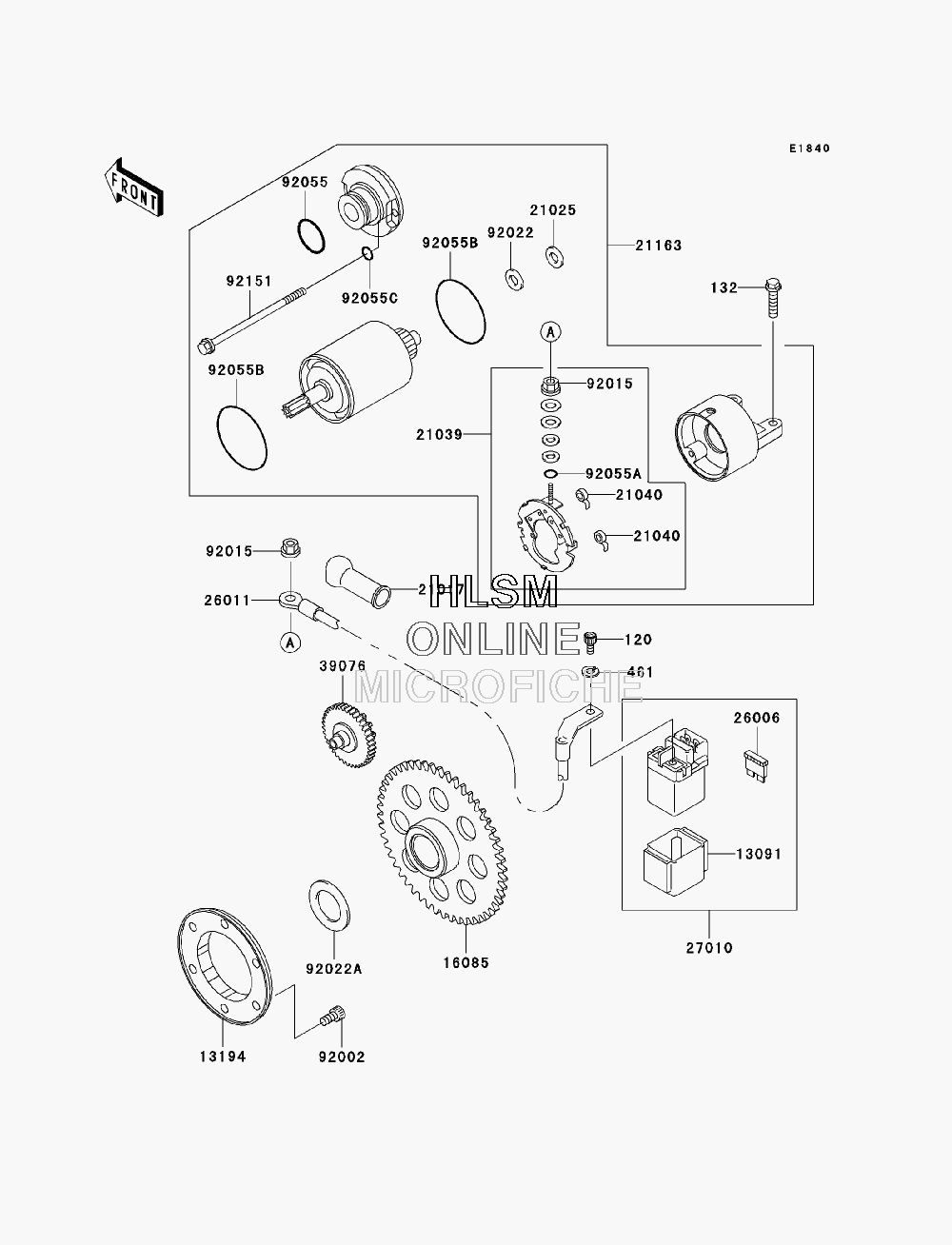

STARTER MOTOR для Kawasaki Eliminator 125 - 2006 года выпуска
-
№АртикулНазвание
-
120120CB0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
132132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
461461DB0500 WASHER-SPRING, 5MM, BLACKWASHER-SPRING, 5MM, BLACK
-
1309113091-1884 HOLDER, MAGNETIC SWITCHHOLDER, MAGNETIC SWITCH
-
1319413194-1107 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1608516085-0020 GEAR, 60TGEAR, 60T
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1066 BRUSHBRUSH
-
2104021040-1057 SPRING-BRUSHSPRING-BRUSH
-
2116321163-1278 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE, 30A-GFUSE, 30A-G
-
2601126011-1682 WIRE-LEAD, STARTERWIRE-LEAD, STARTER
-
2701027010-1327 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-1060 LIMITER, STARTER IDLELIMITER, STARTER IDLE
-
9200292002-1796 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
92022A92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055B92055-1550 RING-ORING-O
-
92055C92055-1551 RING-ORING-O
-
9215192151-1158 BOLTBOLT
