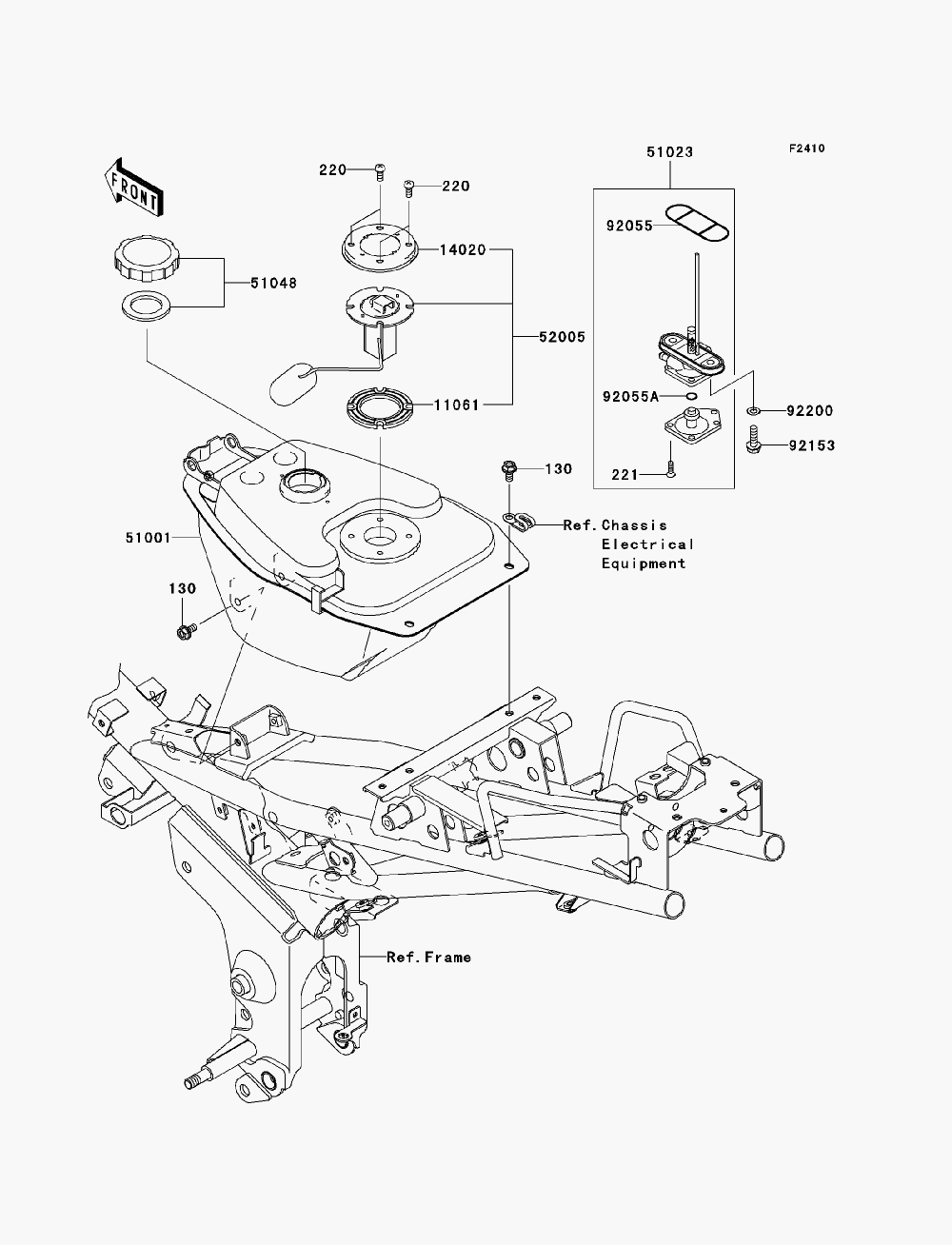

FUEL TANK для Kawasaki AN112 (AN112D8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
220220AA0512 SCREW-PAN-CROS, 5X12SCREW-PAN-CROS, 5X12
-
221221AA0414 SCREW-CSK-CROS, 4X14SCREW-CSK-CROS, 4X14
-
1106111061-1125 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1402014020-0001 RETAINER, FUEL GAUGERETAINER, FUEL GAUGE
-
5100151001-0015 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-1340 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104851048-1119 CAP-ASSY-TANKCAP-ASSY-TANK
-
5200552005-1150 GAUGE, FUELGAUGE, FUEL
-
9205592055-1586 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
92055A92055-1664 RING-ORING-O
-
9215392153-1195 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9220092200-0177 WASHER, 6.5X11.5X0.8WASHER, 6.5X11.5X0.8
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- COWLING - LOWERS
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER/PISTON(S)
- DECALS (BLUE)
- DECALS (GRAY)
- DECALS (GREEN)
- DECALS (RED)
- ENGINE COVER
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FRONT HUB
- • FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- REAR HUB
- SEAT
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SWINGARM W/ SHOCK ABSORBER
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- VALVE(S)
