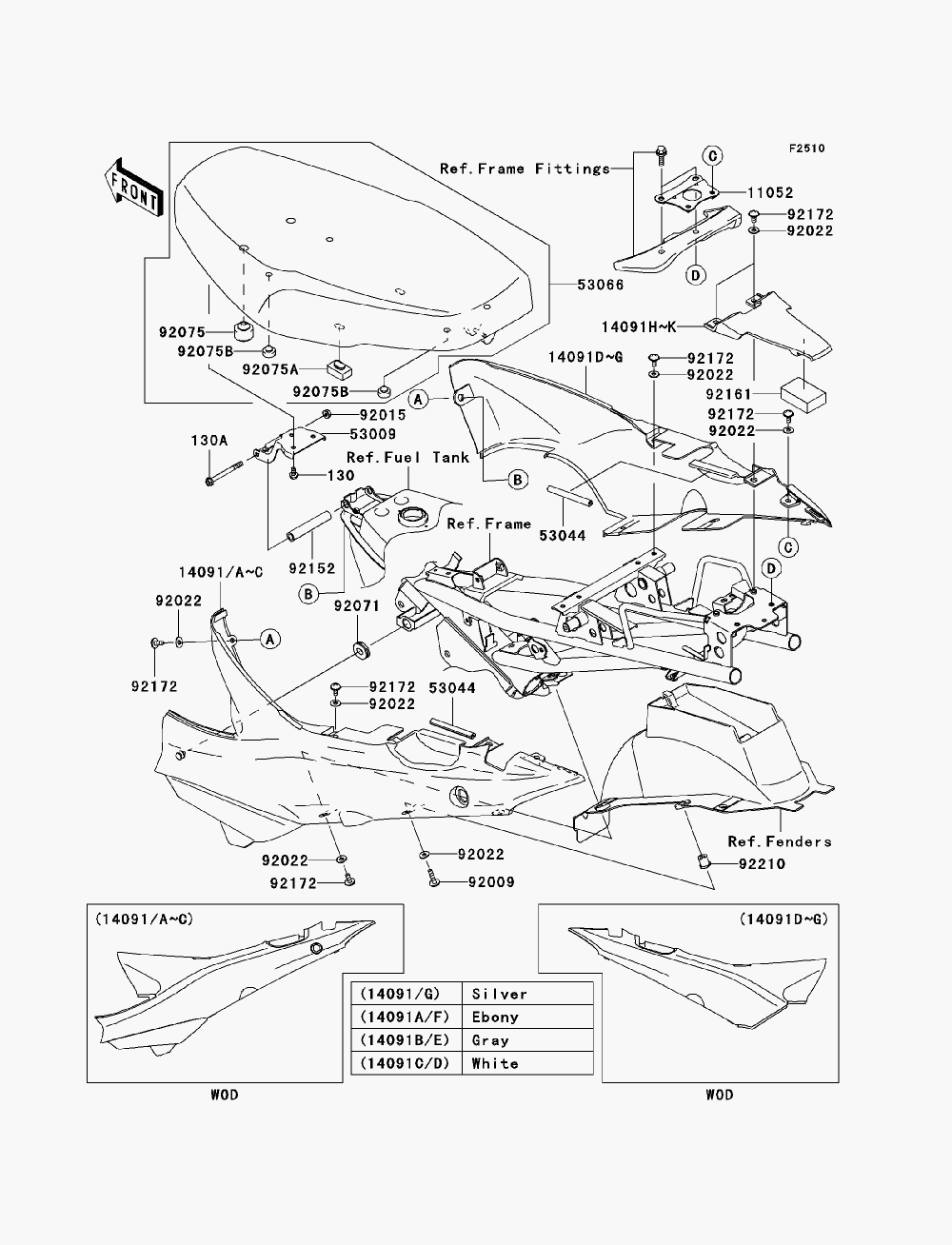

SEAT для Kawasaki AN112 (AN112D8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BB0670 BOLT-FLANGED, 6X70BOLT-FLANGED, 6X70
-
1105211052-1854 BRACKET, SEAT COVER, REARBRACKET, SEAT COVER, REAR
-
1409114091-1411-14R COVER, SEAT, LEFT HAND, SILVER/BLACK (FOR 777)COVER, SEAT, LEFT HAND, SILVER/BLACK (FOR 777)
-
14091A14091-1411-20A COVER, SEAT, LEFT HAND, EBONY (FOR 14J)COVER, SEAT, LEFT HAND, EBONY (FOR 14J)
-
14091B14091-1411-20G COVER, SEAT, LEFT HAND, GRAY/BLACK (FOR 14E)COVER, SEAT, LEFT HAND, GRAY/BLACK (FOR 14E)
-
14091C14091-1411-20H COVER, SEAT, LEFT HAND, WHITE/BLACK (FOR 20T)COVER, SEAT, LEFT HAND, WHITE/BLACK (FOR 20T)
-
14091D14091-1412-14H COVER, SEAT, RIGHT HAND, P.C.WHITE (FOR 20T)COVER, SEAT, RIGHT HAND, P.C.WHITE (FOR 20T)
-
14091E14091-1412-14J COVER, SEAT, RIGHT HAND, M.B.GRAY (FOR 14E)COVER, SEAT, RIGHT HAND, M.B.GRAY (FOR 14E)
-
14091F14091-1412-20A COVER, SEAT, RIGHT HAND, EBONY (FOR 14J)COVER, SEAT, RIGHT HAND, EBONY (FOR 14J)
-
14091G14091-1412-4K COVER, SEAT, RIGHT HAND, G.SILVER (FOR 777)COVER, SEAT, RIGHT HAND, G.SILVER (FOR 777)
-
14091H14091-1413-14H COVER, SEAT, CNT, P.C.WHITE (FOR 20T)COVER, SEAT, CNT, P.C.WHITE (FOR 20T)
-
14091I14091-1413-14J COVER, SEAT, CNT, M.B.GRAY (FOR 14E)COVER, SEAT, CNT, M.B.GRAY (FOR 14E)
-
14091J14091-1413-20A COVER, SEAT, CNT, EBONY (FOR 14J)COVER, SEAT, CNT, EBONY (FOR 14J)
-
14091K14091-1413-4K COVER, SEAT, CNT, G.SILVER (FOR 777)COVER, SEAT, CNT, G.SILVER (FOR 777)
-
5300953009-1113 HINGE, SEATHINGE, SEAT
-
5304453044-0007 TRIM, L=85TRIM, L=85
-
5306653066-0015-MA SEAT-ASSY, DUAL, BLACKSEAT-ASSY, DUAL, BLACK
-
9200992009-1465 SCREW, 6X25SCREW, 6X25
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
9207192071-1043 GROMMETGROMMET
-
9207592075-015 DAMPERDAMPER
-
92075A92075-099 DAMPERDAMPER
-
92075B92075-1927 DAMPERDAMPER
-
9215292152-1374 COLLAR, 6.8X10X55.8COLLAR, 6.8X10X55.8
-
9216192161-1288 DAMPERDAMPER
-
9217292172-0055 SCREW, 6X14SCREW, 6X14
-
9221092210-0184 NUT, WELL, 6MMNUT, WELL, 6MM
