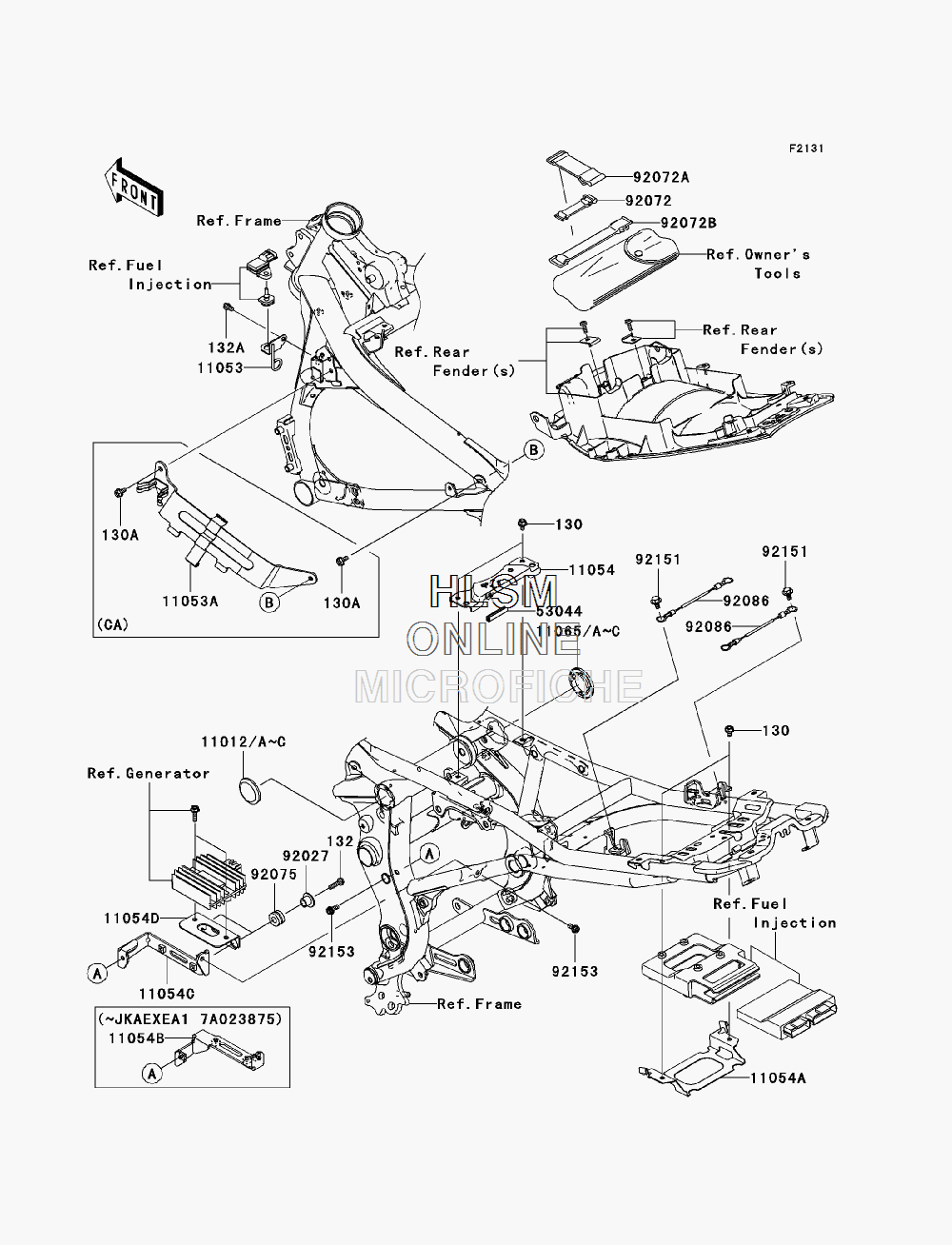

FRAME FITTINGS для Kawasaki NINJA 650R (EX650A8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130L0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130L0612 BOLT-FLANGED, 6X12 (CALIF. ONLY)BOLT-FLANGED, 6X12 (CALIF. ONLY)
-
1101211012-1717-10C CAP, CROSS PIPE, F.P.SILVER (FOR 17K)CAP, CROSS PIPE, F.P.SILVER (FOR 17K)
-
11012C11012-1717-18T CAP, CROSS PIPE, BLACK (FOR 777;H1)CAP, CROSS PIPE, BLACK (FOR 777;H1)
-
1105311053-1931 BRACKET, BOOST SENSORBRACKET, BOOST SENSOR
-
11053A11053-1964 BRACKET, CANISTER (CALIF. ONLY)BRACKET, CANISTER (CALIF. ONLY)
-
1105411054-0248 BRACKET, FUEL TANKBRACKET, FUEL TANK
-
11054A11054-0347 BRACKET, ECUBRACKET, ECU
-
11054C11054-1283 BRACKET, REGULATOR (JKAEXEA1 7A023876 AND ABOVE)BRACKET, REGULATOR (JKAEXEA1 7A023876 AND ABOVE)
-
11054D11054-1284 BRACKET, REGULATOR (JKAEXEA1 7A023876 AND ABOVE)BRACKET, REGULATOR (JKAEXEA1 7A023876 AND ABOVE)
-
1106511065-0125-10C CAP, FRAME, F.P.SILVER (FOR 17K)CAP, FRAME, F.P.SILVER (FOR 17K)
-
11065C11065-0125-18T CAP, FRAME, BLACK (FOR 777;H1)CAP, FRAME, BLACK (FOR 777;H1)
-
5304453044-1174 TRIM, L=40TRIM, L=40
-
9202792027-1450 COLLAR, L=13.1, BLACK (JKAEXEA1 7A023876 AND ABOVE)COLLAR, L=13.1, BLACK (JKAEXEA1 7A023876 AND ABOVE)
-
9207292072-1085 BANDBAND
-
92072A92072-1176 BAND, TOOLBAND, TOOL
-
92072B92072-1203 BAND, L=150BAND, L=150
-
9207592075-209 DAMPER (JKAEXEA1 7A023876 AND ABOVE)DAMPER (JKAEXEA1 7A023876 AND ABOVE)
-
9208692086-1075 WIRE, L=150WIRE, L=150
-
9215192151-1703 BOLT, FLANGED, 6X13BOLT, FLANGED, 6X13
-
9215392153-1517 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
132132J0622 BOLT-FLANGED-SMALL, 6X22 (JKAEXEA1 7A023876 AND ABOVE)BOLT-FLANGED-SMALL, 6X22 (JKAEXEA1 7A023876 AND ABOVE)
-
132A132L0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
