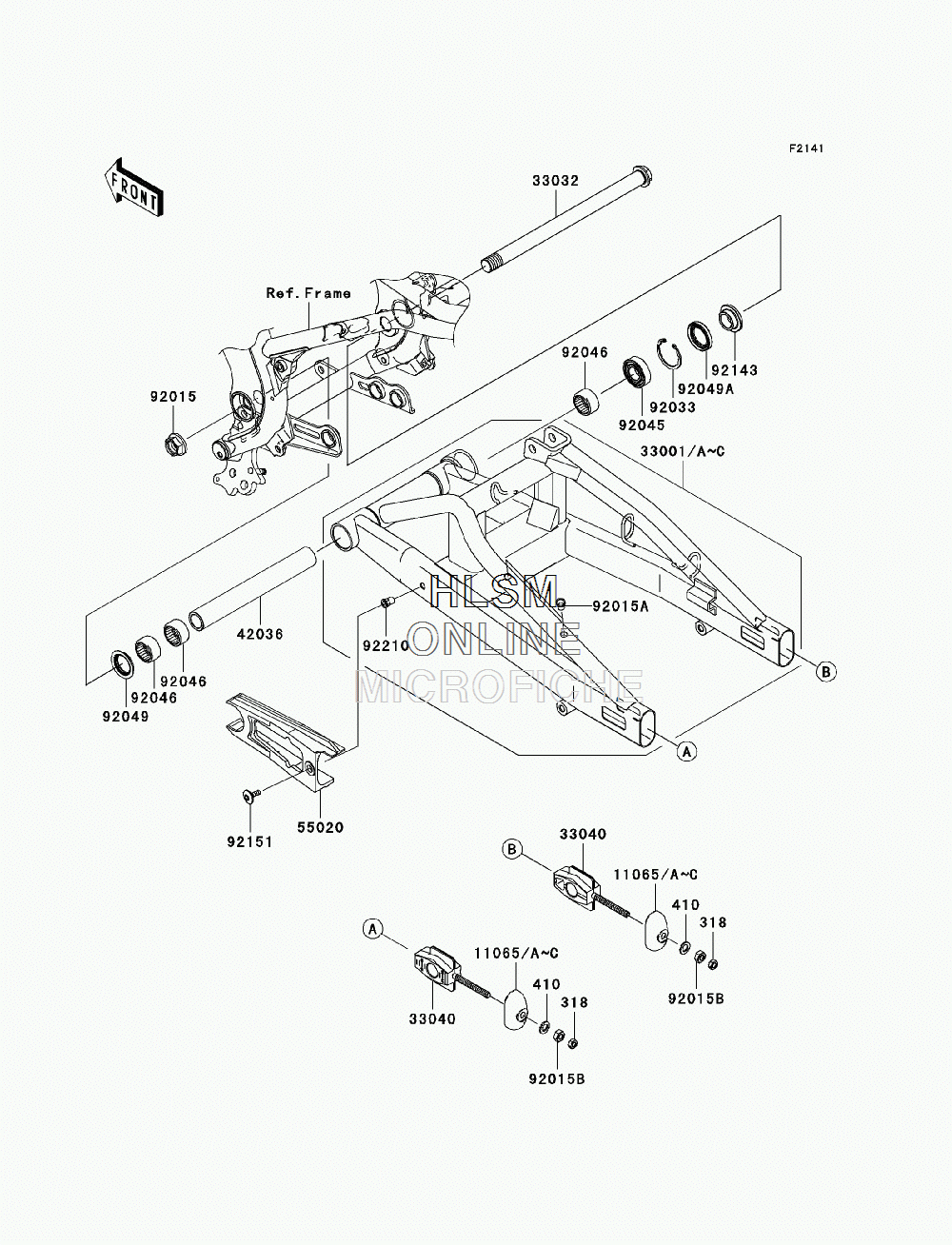

SUSPENSION - SWINGARM для Kawasaki NINJA 650R (EX650A8F) - 2008 года выпуска
-
№АртикулНазвание
-
318318C0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
410410F0800 WASHER-PLAIN-SMALL, 8MM, BLACKWASHER-PLAIN-SMALL, 8MM, BLACK
-
1106511065-0121-18R CAP, CHAIN ADJUSTER, BLACK (FOR 777/H1)CAP, CHAIN ADJUSTER, BLACK (FOR 777/H1)
-
11065A11065-0121-458 CAP, CHAIN ADJUSTER, P.SILVER (FOR 17K)CAP, CHAIN ADJUSTER, P.SILVER (FOR 17K)
-
3300133001-0081-18R ARM-COMP-SWING, BLACK (FOR 777;H1)ARM-COMP-SWING, BLACK (FOR 777;H1)
-
33001A33001-0081-458 ARM-COMP-SWING, P.SILVER (FOR 17K)ARM-COMP-SWING, P.SILVER (FOR 17K)
-
3303233032-1142 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0015 ADJUSTER-CHAIN, INNERADJUSTER-CHAIN, INNER
-
4203642036-1358 SLEEVE, SWING ARM, L=219.5SLEEVE, SWING ARM, L=219.5
-
5502055020-0192 GUARD, CHAINGUARD, CHAIN
-
9201592015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92015A92015-1759 NUT, POP, 6MMNUT, POP, 6MM
-
92015B92015-1959 NUT, 8MMNUT, 8MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
9204692046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17BEARING-NEEDLE, 7E-HVS 28X34X17
-
9204992049-1181 SEAL-OILSEAL-OIL
-
92049A92049-1185 SEAL-OIL, TC28426.5SEAL-OIL, TC28426.5
-
9214392143-1727 COLLAR, SWING ARM, RIGHT HAND, L=12.5COLLAR, SWING ARM, RIGHT HAND, L=12.5
-
9215192151-1149 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9221092210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
