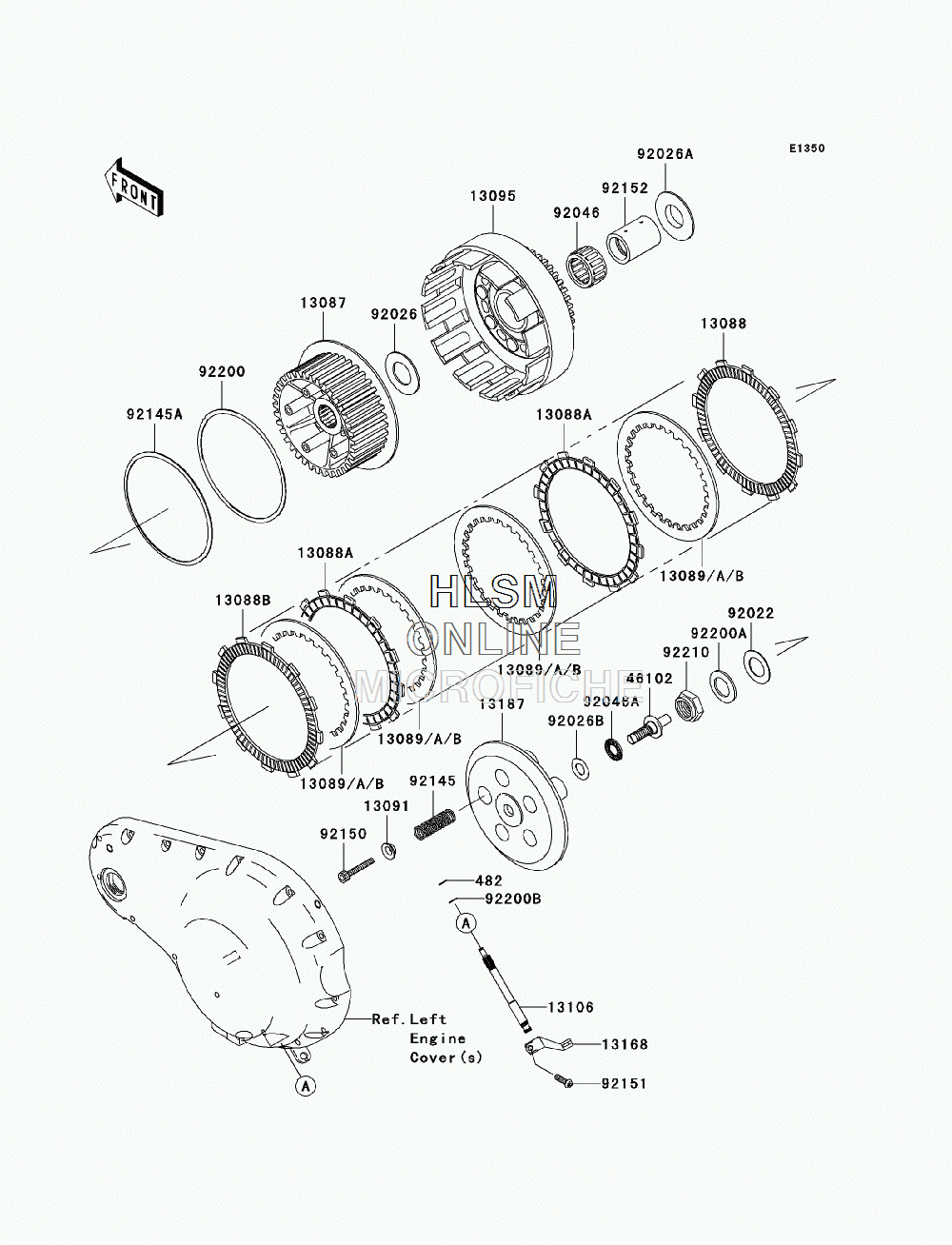

CLUTCH для Kawasaki VULCAN 2000 CLASSIC LT (VN2000J8F) - 2008 года выпуска
-
№АртикулНазвание
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
1308713087-0005 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0001 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0011 PLATE-FRICTIONPLATE-FRICTION
-
13088B13088-1146 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1075 PLATE-CLUTCH,T=2.0PLATE-CLUTCH,T=2.0
-
13089A13089-1080 PLATE-CLUTCH,T=1.6PLATE-CLUTCH,T=1.6
-
13089B13089-1081 PLATE-CLUTCH,T=2.3PLATE-CLUTCH,T=2.3
-
1309113091-1041 HOLDER,CLUTCH SPRINGHOLDER,CLUTCH SPRING
-
1309513095-0001 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310613106-0002 SHAFT-CLUTCH RELEASESHAFT-CLUTCH RELEASE
-
1316813168-0006 LEVER,CLUTCHLEVER,CLUTCH
-
1318713187-0002 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
4610246102-0013 ROD,CLUTCH RELEASEROD,CLUTCH RELEASE
-
9202292022-1390 WASHER,25.3X44X1WASHER,25.3X44X1
-
9202692026-0008 SPACER,30.5X56X2SPACER,30.5X56X2
-
92026A92026-0009 SPACER,30.2X64X8.5SPACER,30.2X64X8.5
-
92026B92026-1238 SPACER,15X28X1SPACER,15X28X1
-
9204692046-0001 BEARING-NEEDLE,K40X48X25V3BEARING-NEEDLE,K40X48X25V3
-
92046A92046-1052 BEARING-NEEDLE,AXK1102BEARING-NEEDLE,AXK1102
-
9214592145-0032 SPRING,CLUTCHSPRING,CLUTCH
-
92145A92145-0033 SPRINGSPRING
-
9215092150-1855 BOLT,CLUTCH OPERATINGBOLT,CLUTCH OPERATING
-
9215192151-1749 BOLT,SOCKET,6X20BOLT,SOCKET,6X20
-
9215292152-0190 COLLAR,30X40X52.3COLLAR,30X40X52.3
-
9220092200-0015 WASHER,140.1X150X1.2WASHER,140.1X150X1.2
-
92200A92200-0016 WASHER,25.5X42X2.6WASHER,25.5X42X2.6
-
92200B92200-1107 WASHER,7.7X13X1.0WASHER,7.7X13X1.0
-
9221092210-0138 NUT,25MMNUT,25MM
