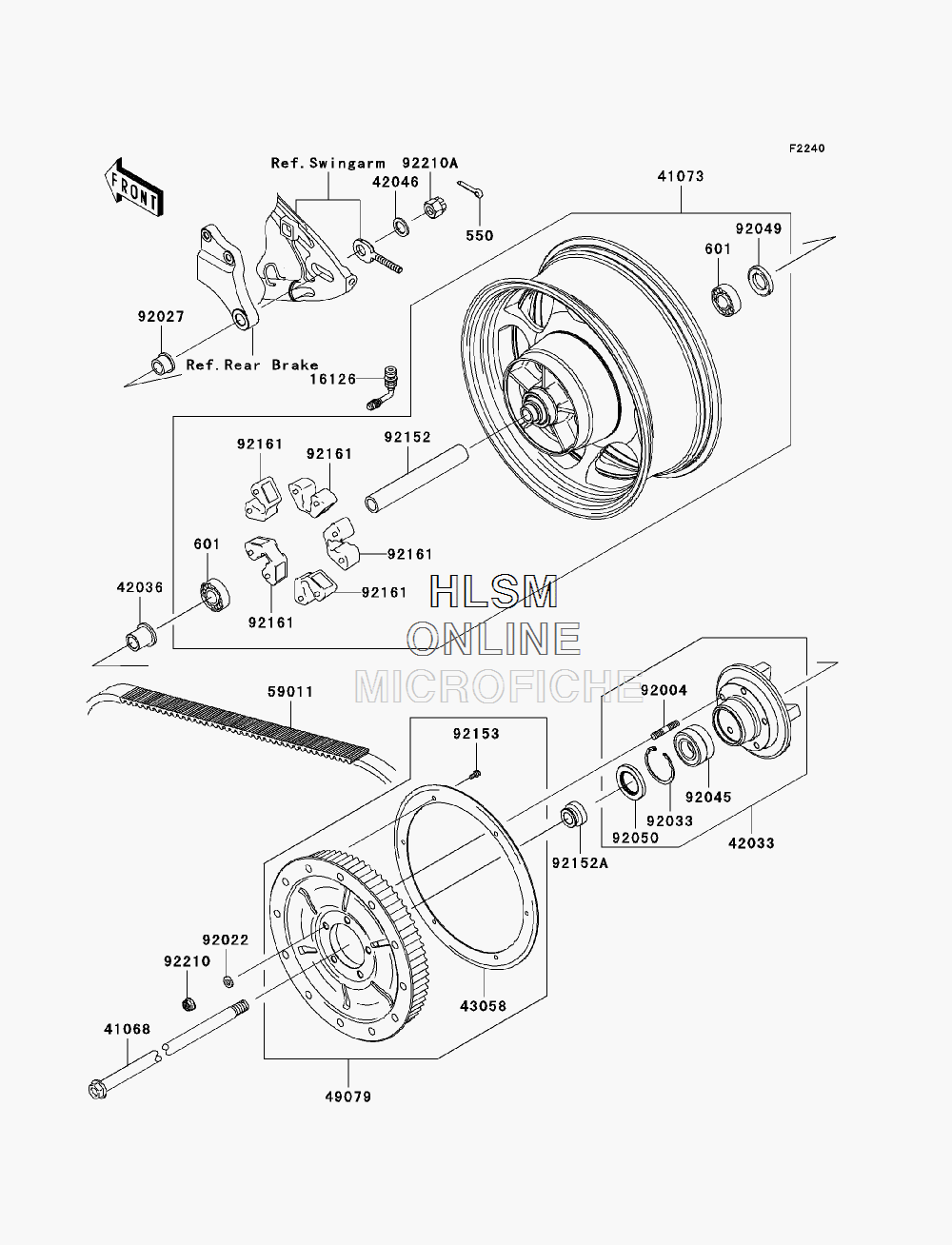

WHEEL - REAR W/ CHAIN для Kawasaki VULCAN 2000 CLASSIC LT (VN2000J8F) - 2008 года выпуска
-
№АртикулНазвание
-
550550AA4035 PIN-COTTER,4.0X35PIN-COTTER,4.0X35
-
601601B6304UU BEARING-BALL,#6304UUC3BEARING-BALL,#6304UUC3
-
1612616126-1365 VALVEVALVE
-
4106841068-0007 AXLE, REARAXLE, REAR
-
4107341073-0061 WHEEL-ASSY, REARWHEEL-ASSY, REAR
-
4203342033-0020 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-0027 SLEEVE, REAR HUB COUPLING,L=39SLEEVE, REAR HUB COUPLING,L=39
-
4204642046-003 WASHER,21X33X2.6WASHER,21X33X2.6
-
4305843058-0004 RING, REAR PULLEYRING, REAR PULLEY
-
4907949079-0004-458 PULLEY-BELT,P.SILVERPULLEY-BELT,P.SILVER
-
5901159011-0004 BELT,DRIVE,133TBELT,DRIVE,133T
-
9200492004-0016 STUD,10X35STUD,10X35
-
9202292022-1820 WASHER,10.5X19X3.2WASHER,10.5X19X3.2
-
9202792027-1902 COLLAR, REAR AXLE,L=21.5COLLAR, REAR AXLE,L=21.5
-
9203392033-1044 RING-SNAP,62MMRING-SNAP,62MM
-
9204592045-0045 BEARING-BALL,6206LUD2C3/2ASBEARING-BALL,6206LUD2C3/2AS
-
9204992049-1061 SEAL-OIL,28X52X5SEAL-OIL,28X52X5
-
9205092050-027 SEAL-OIL,AJN40627SEAL-OIL,AJN40627
-
9215292152-0051 COLLAR, REAR HUB,L=210COLLAR, REAR HUB,L=210
-
92152A92152-0321 COLLAR, REAR AXLE, LEFT HAND,L=24COLLAR, REAR AXLE, LEFT HAND,L=24
-
9215392153-0827 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9216192161-0043 DAMPER,SHOCK, REAR HUBDAMPER,SHOCK, REAR HUB
-
9221092210-0276 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1134 NUT,CASTLE,18MMNUT,CASTLE,18MM
