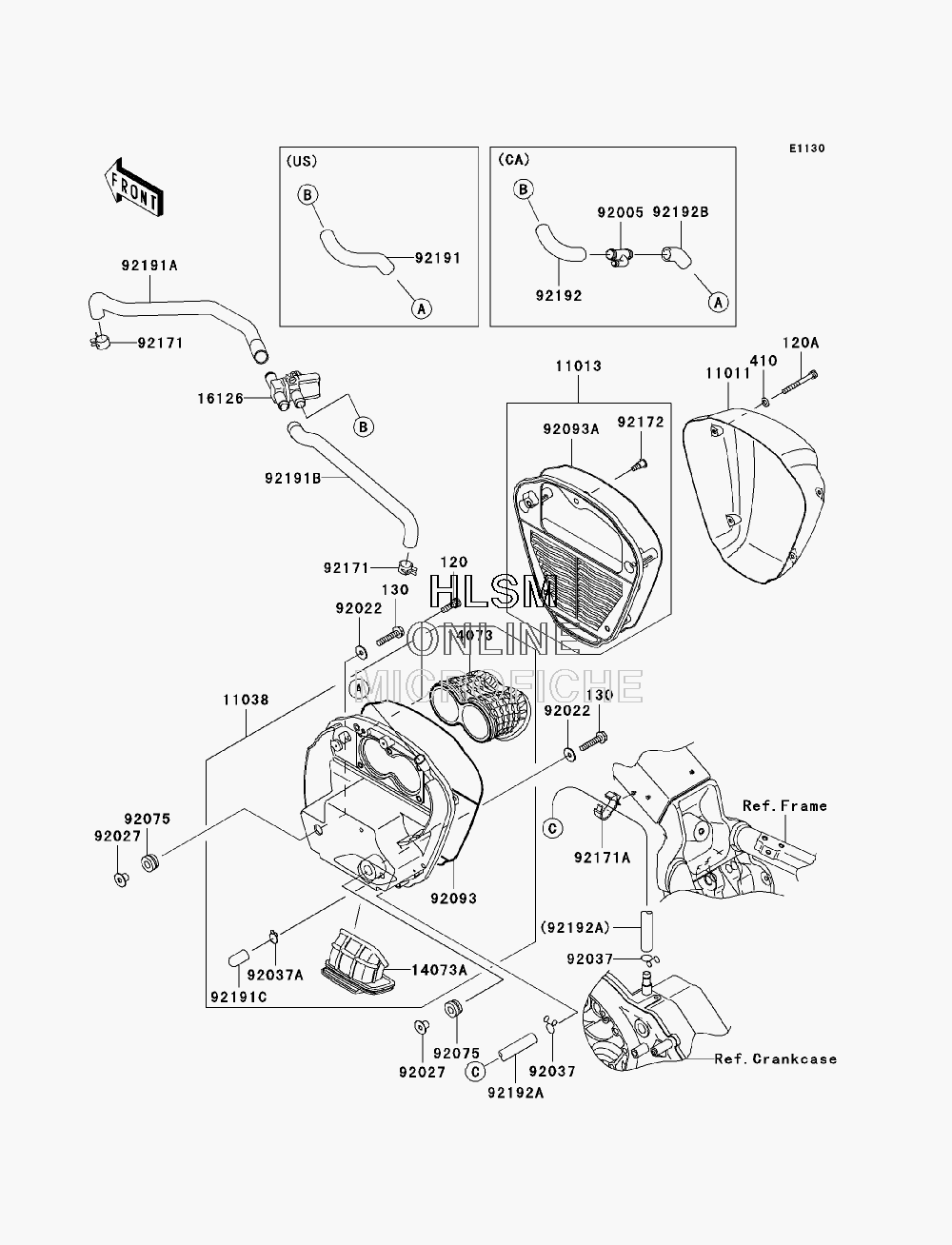

AIR CLEANER для Kawasaki VULCAN 2000 CLASSIC (VN2000H8F) - 2008 года выпуска
-
№АртикулНазвание
-
120120CA0618 BOLT-SOCKET, 6X18BOLT-SOCKET, 6X18
-
120A120R0545 BOLT-SOCKET, 5X45BOLT-SOCKET, 5X45
-
130130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
410410S0500 W-PLAIN-S, 5MMW-PLAIN-S, 5MM
-
1101111011-0066 CASE-AIR FILTERCASE-AIR FILTER
-
1101311013-0028 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-0020 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1407314073-0008 DUCT, THROTTLEDUCT, THROTTLE
-
14073A14073-0191 DUCT, INTAKEDUCT, INTAKE
-
1612616126-1437 VALVE, AIR SWITCHINGVALVE, AIR SWITCHING
-
9200592005-0006 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9202292022-1557 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202792027-1062 COLLAR, L=12COLLAR, L=12
-
9203792037-1468 CLAMPCLAMP
-
92037A92037-1900 CLAMP, 14.5MMCLAMP, 14.5MM
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9209392093-0004 SEALSEAL
-
92093A92093-0005 SEALSEAL
-
9217192171-0332 CLAMPCLAMP
-
92171A92171-1424 CLAMP, DIA=15CLAMP, DIA=15
-
9217292172-0091 SCREW, 5X16.5SCREW, 5X16.5
-
9219192191-0011 TUBE, AIR CLEANER-ACV (EXCEPT CALIF.)TUBE, AIR CLEANER-ACV (EXCEPT CALIF.)
-
92191A92191-0012 TUBE, ACV-FRONT HEADTUBE, ACV-FRONT HEAD
-
92191B92191-0013 TUBE, ACV-REAR HEADTUBE, ACV-REAR HEAD
-
92191C92191-1704 TUBETUBE
-
9219292192-0017 TUBE, FITTING-ACV (CALIF. ONLY)TUBE, FITTING-ACV (CALIF. ONLY)
-
92192A92192-0135 TUBE, 9X15X800TUBE, 9X15X800
-
92192B92192-0568 TUBE, A/C-FITTING (CALIF. ONLY)TUBE, A/C-FITTING (CALIF. ONLY)
