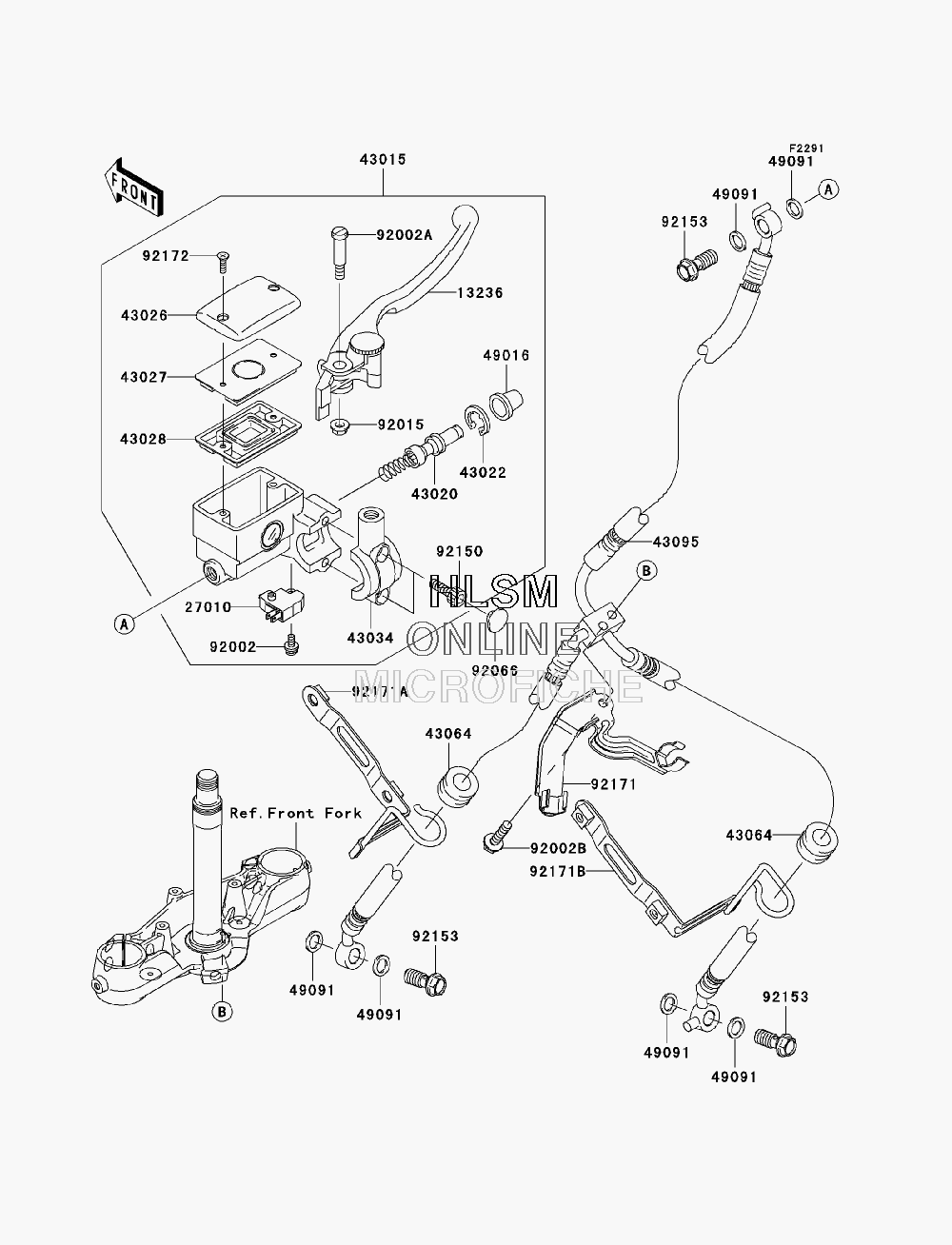

BRAKE - MASTER CYLINDER - FRONT для Kawasaki VULCAN 2000 CLASSIC (VN2000H8F) - 2008 года выпуска
-
№АртикулНазвание
-
1323613236-1315 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0025 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1054 PISTON-COMP-BRAKE, FRONTPISTON-COMP-BRAKE, FRONT
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-0003 CAP-BRAKECAP-BRAKE
-
4302743027-1059 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1172 HOLDER-BRAKEHOLDER-BRAKE
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4309543095-0233 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
92002B92002-1912 BOLT, 6X26.6BOLT, 6X26.6
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9206692066-1301 PLUGPLUG
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217192171-0449 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171A92171-0530 CLAMP, BRAKE HOSE, LEFT HANDCLAMP, BRAKE HOSE, LEFT HAND
-
92171B92171-0531 CLAMP, BRAKE HOSE, RIGHT HANDCLAMP, BRAKE HOSE, RIGHT HAND
-
9217292172-0083 SCREWSCREW
