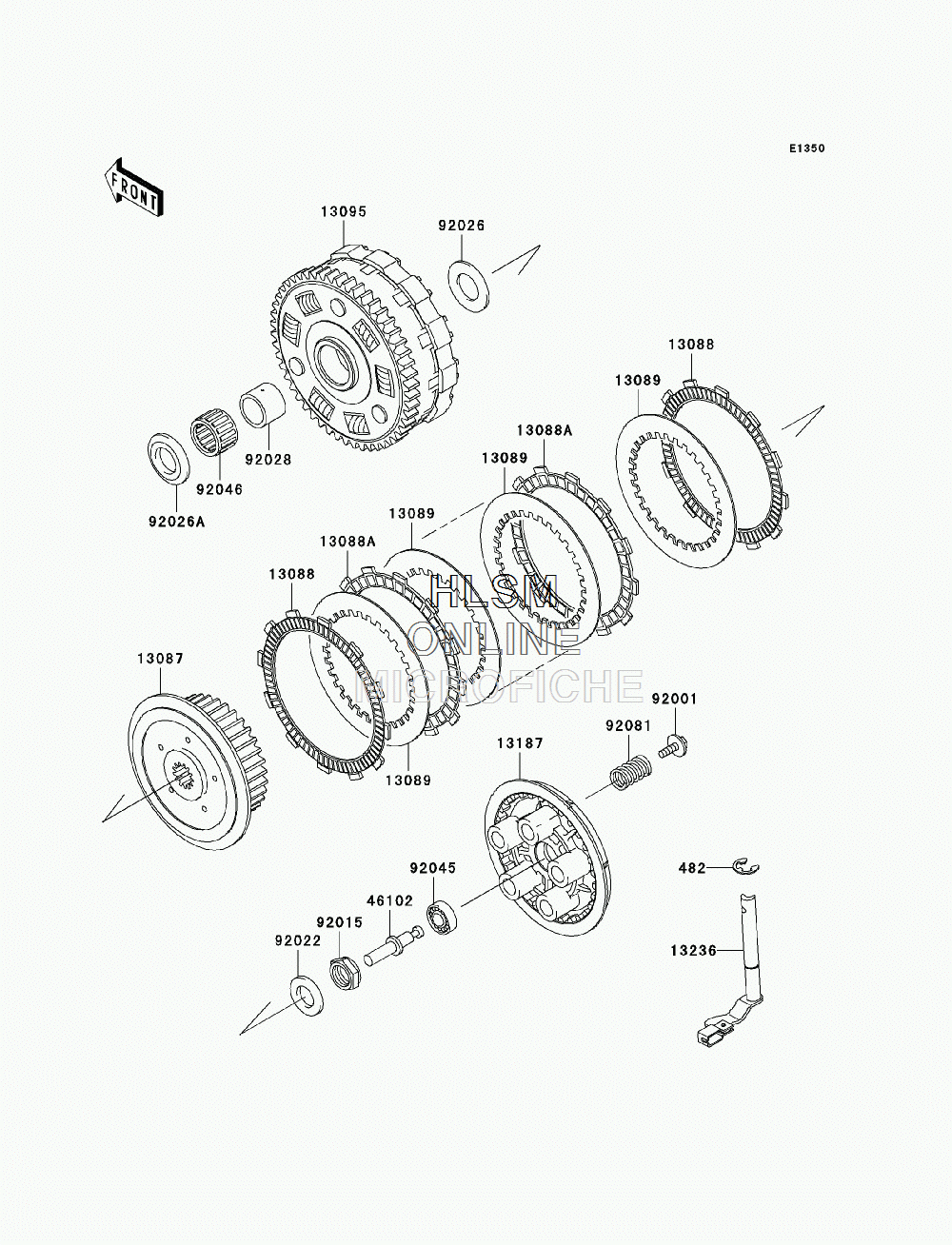

CLUTCH для Kawasaki VULCAN 900 CLASSIC (VN900B8F) - 2008 года выпуска
-
№АртикулНазвание
-
482482J0100 CIRCLIP-TYPE-E,10MMCIRCLIP-TYPE-E,10MM
-
1308713087-0042 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0023 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-1133 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-027 PLATE-CLUTCHPLATE-CLUTCH
-
1309513095-0054 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1318713187-1006 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323613236-1269 LEVER-COMP,CLUTCH RELEASELEVER-COMP,CLUTCH RELEASE
-
4610246102-1374 ROD,PULLROD,PULL
-
9200192001-1066 BOLT,FLANGED,6X18BOLT,FLANGED,6X18
-
9201592015-1555 NUT,20MMNUT,20MM
-
9202292022-1868 WASHER,20.3X36X3.7WASHER,20.3X36X3.7
-
9202692026-022 SPACER,25.5X47X2.5SPACER,25.5X47X2.5
-
92026A92026-116 SPACER,THRUST,T=5.5SPACER,THRUST,T=5.5
-
9202892028-178 BUSHING,25X32X23.6BUSHING,25X32X23.6
-
9204592045-1235 BEARING-BALL,6001C3ML01BEARING-BALL,6001C3ML01
-
9204692046-028 BEARING-NEEDLE,KTV323723BEARING-NEEDLE,KTV323723
-
9208192081-1033 SPRING,CLUTCHSPRING,CLUTCH
