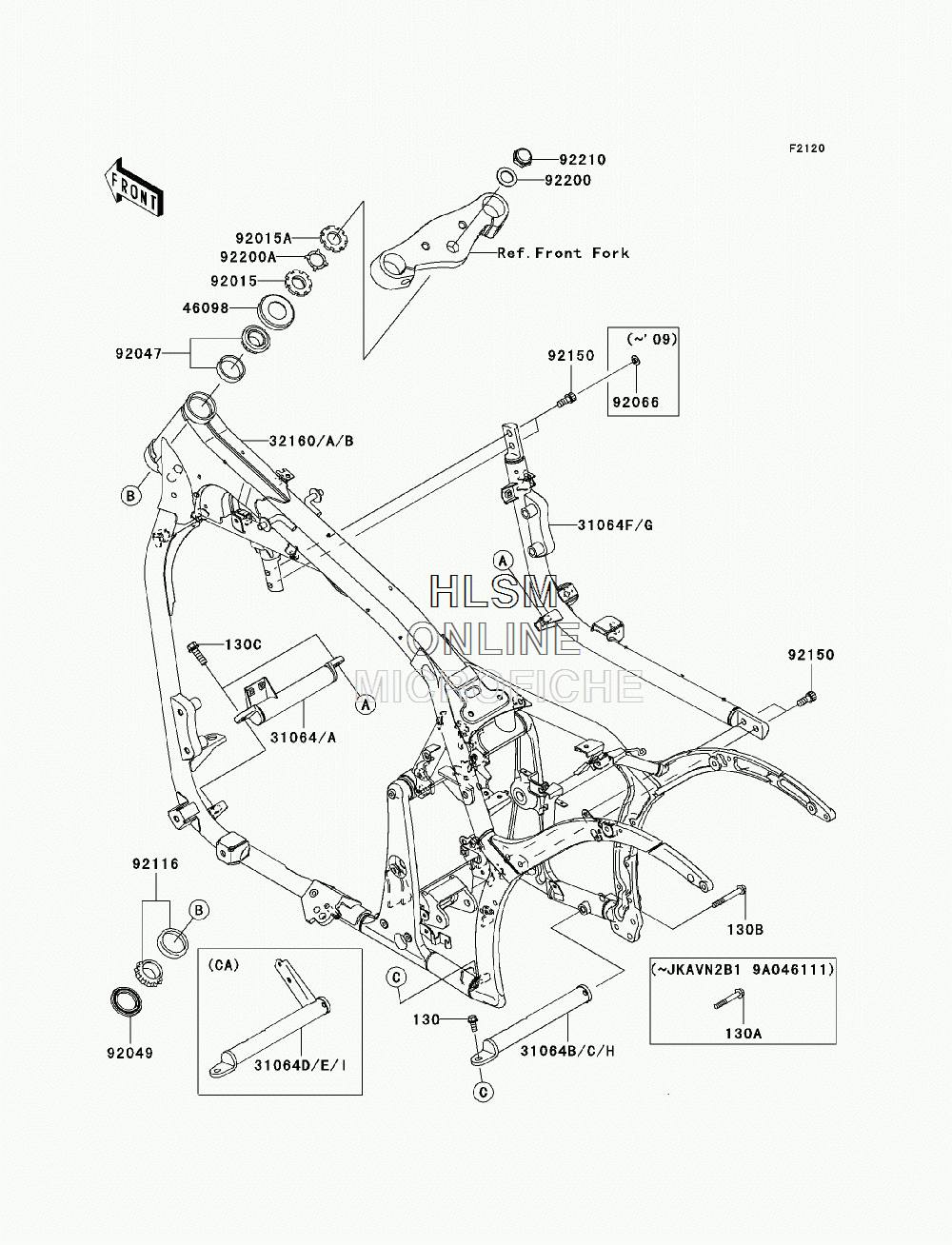

FRAME для Kawasaki VULCAN 900 CLASSIC (VN900B8F) - 2008 года выпуска
-
№АртикулНазвание
-
31064A31064-0047-18R PIPE-COMP, FRONT CROSS,BLACKPIPE-COMP, FRONT CROSS,BLACK
-
31064C31064-0048-18R PIPE-COMP, REAR CROSS,BLACK (EXCEPT CALIF.) (UP TO JKAVN2B1 9A046111)PIPE-COMP, REAR CROSS,BLACK (EXCEPT CALIF.) (UP TO JKAVN2B1 9A046111)
-
31064E31064-0053-18R PIPE-COMP, REAR CROSS,BLACK (CALIF. ONLY) (UP TO JKAVN2B1 9A046111)PIPE-COMP, REAR CROSS,BLACK (CALIF. ONLY) (UP TO JKAVN2B1 9A046111)
-
31064G31064-0097-18R PIPE-COMP,DOWNTUBE, RIGHT HAND,BLACKPIPE-COMP,DOWNTUBE, RIGHT HAND,BLACK
-
32160A32160-0395-18R FRAME-COMP,F.S.BLACKFRAME-COMP,F.S.BLACK
-
4609846098-017 CAP,STEERING STEMCAP,STEERING STEM
-
9201592015-1377 NUT,25MM,T=10NUT,25MM,T=10
-
92015A92015-1378 NUT,25MM,T=6NUT,25MM,T=6
-
9204792047-017 RACE,ROLLER,32005JR RSRACE,ROLLER,32005JR RS
-
9204992049-1162 SEAL-OIL,XMHE36X52X4JSEAL-OIL,XMHE36X52X4J
-
9206692066-1562 PLUGPLUG
-
9211692116-1009 BEARING-ROLLER,HR320/28XJBEARING-ROLLER,HR320/28XJ
-
9215092150-1942 BOLT,SOCKET,10X23BOLT,SOCKET,10X23
-
130130BB0818 BOLT-FLANGED,8X18BOLT-FLANGED,8X18
-
130A130BB0855 BOLT-FLANGED,8X55 (UP TO JKAVN2B1 9A046111)BOLT-FLANGED,8X55 (UP TO JKAVN2B1 9A046111)
-
130C130BB1025 BOLT-FLANGED,10X25BOLT-FLANGED,10X25
-
9220092200-0270 WASHER,22.5X36X2.3WASHER,22.5X36X2.3
-
92200A92200-0353 WASHER,CLAW,25.5X34X0.6WASHER,CLAW,25.5X34X0.6
-
9221092210-0263 NUT,CAP,22MMNUT,CAP,22MM
