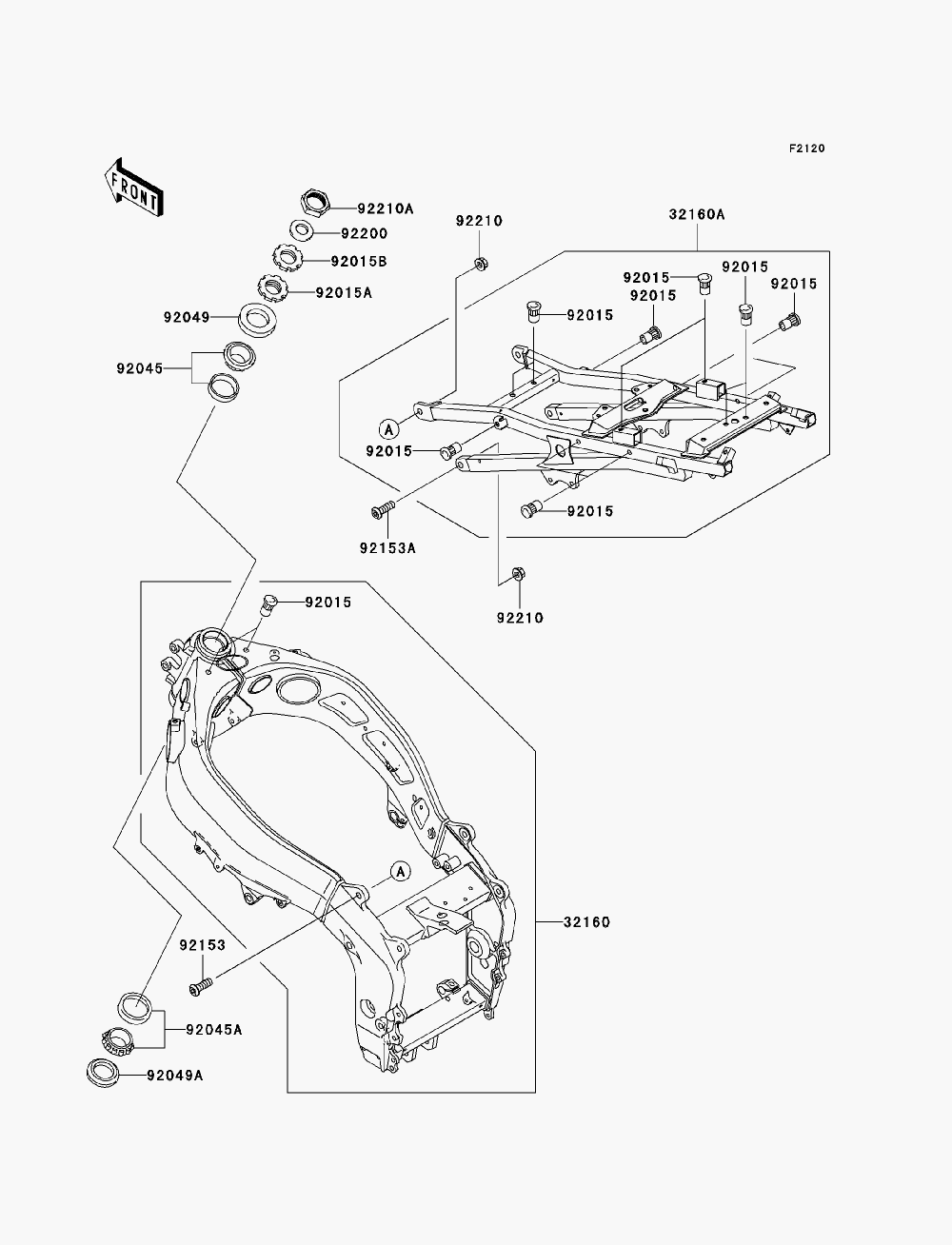

FRAME для Kawasaki ZZR600 (ZX600J8F) - 2008 года выпуска
-
№АртикулНазвание
-
3216032160-1621-458 FRAME-COMP, AL, FRONT, P.SILVERFRAME-COMP, AL, FRONT, P.SILVER
-
32160A32160-1671-458 FRAME-COMP, AL, REAR, P.SILVERFRAME-COMP, AL, REAR, P.SILVER
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1803 NUT, 25MMNUT, 25MM
-
92015B92015-1810 NUT, 25MMNUT, 25MM
-
9204592045-1382 BEARING-BALL, SAC2547-2BEARING-BALL, SAC2547-2
-
92045A92045-1384 BEARING-BALL, SF07A17PX1V1BEARING-BALL, SF07A17PX1V1
-
9204992049-1313 SEAL-OIL, XMH33 70 6.4J-ASEAL-OIL, XMH33 70 6.4J-A
-
92049A92049-1383 SEAL-OIL, XMHE 43 55 4JSEAL-OIL, XMHE 43 55 4J
-
9215392153-1127 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
92153A92153-1128 BOLT, SOCKET, 10X35BOLT, SOCKET, 10X35
-
9220092200-1126 WASHER, 22.5X36X3.2WASHER, 22.5X36X3.2
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1202 NUT, 22MMNUT, 22MM
