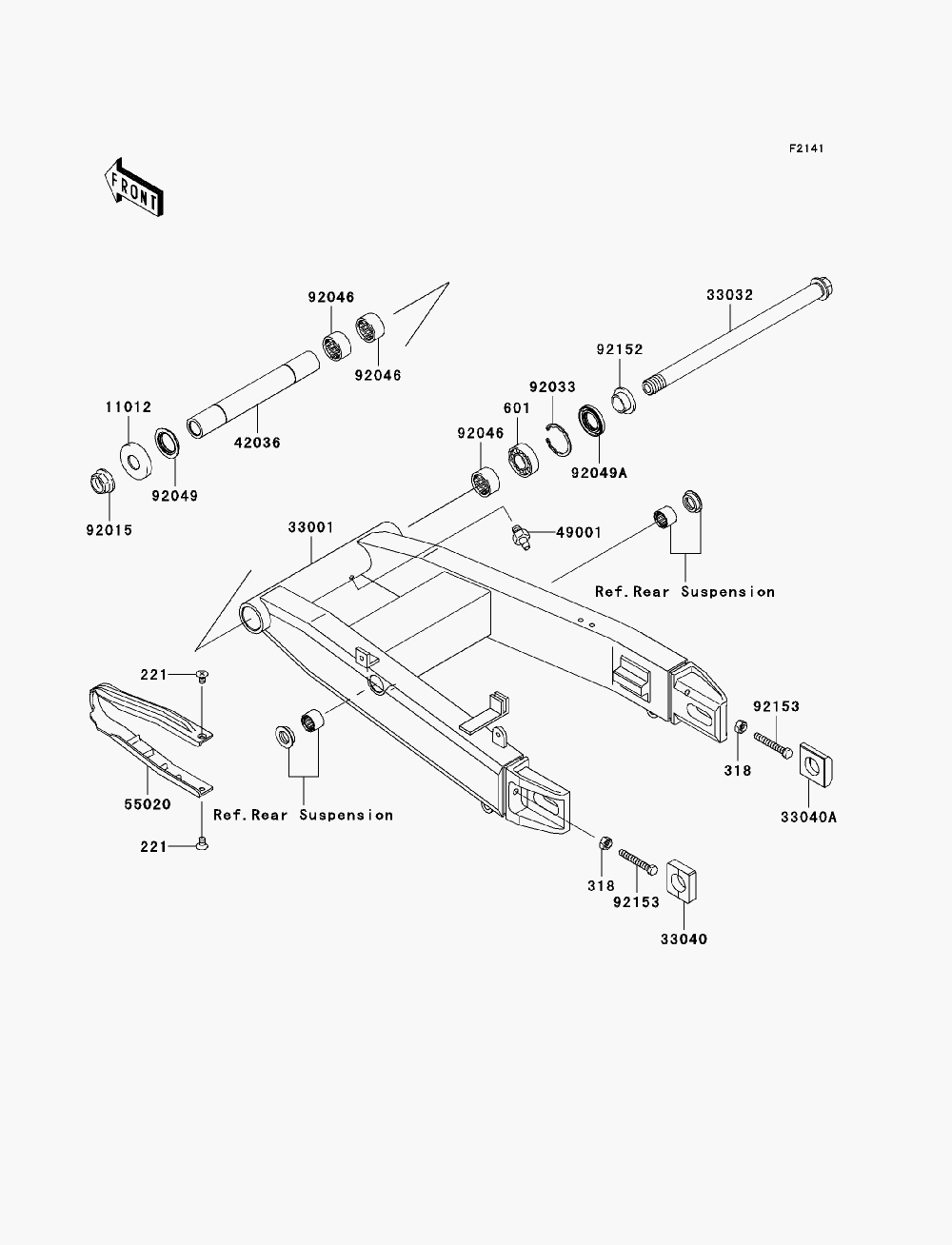

SUSPENSION - SWINGARM для Kawasaki ZZR600 (ZX600J8F) - 2008 года выпуска
-
№АртикулНазвание
-
221221C0508 SCREW-CSK-CROS, 5X8SCREW-CSK-CROS, 5X8
-
318318G0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
601601A6004 BEARING-BALL, #6004BEARING-BALL, #6004
-
1101211012-1658 CAPCAP
-
3300133001-0055-458 ARM-COMP-SWING, P.SILVERARM-COMP-SWING, P.SILVER
-
3303233032-1191 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-1114 ADJUSTER-CHAINADJUSTER-CHAIN
-
33040A33040-1180 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
4203642036-1283 SLEEVE, SWING ARM, L=213SLEEVE, SWING ARM, L=213
-
4900149001-0001 NIPPLE-GREASENIPPLE-GREASE
-
5502055020-1702 GUARD, CHAINGUARD, CHAIN
-
9201592015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204692046-1111 BEARING-NEEDLE, BM2817BEARING-NEEDLE, BM2817
-
9204992049-1181 SEAL-OILSEAL-OIL
-
92049A92049-1314 SEAL-OIL, MHSA25 42 6SEAL-OIL, MHSA25 42 6
-
9215292152-1234 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
-
9215392153-1407 BOLT, 8X55BOLT, 8X55
