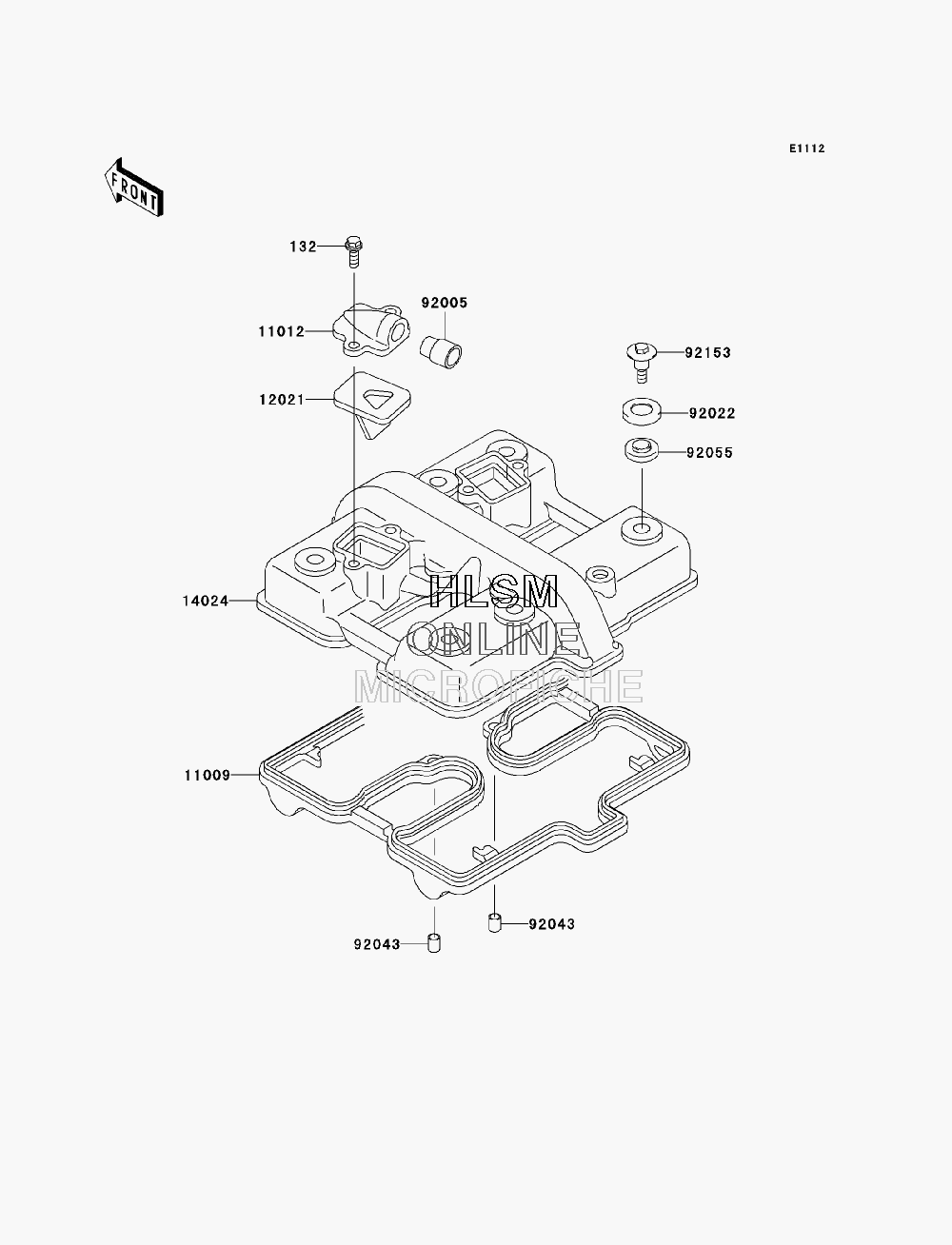

CYLINDER HEAD COVER для Kawasaki NINJA 500R (EX500D9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BB0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
1100911009-1483 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
1101211012-1310 CAP, REED VALVECAP, REED VALVE
-
1202112021-1026 VALVE-ASSY-REEDVALVE-ASSY-REED
-
1402414024-1397 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
9200592005-1006 FITTING, REED VALVEFITTING, REED VALVE
-
9202292022-1487 WASHER, HEAD COVER BOLTWASHER, HEAD COVER BOLT
-
9204392043-1302 PIN, DOWEL, 8X10PIN, DOWEL, 8X10
-
9205592055-1225 RING-O, HEAD COVER BOLTRING-O, HEAD COVER BOLT
-
9215392153-0793 BOLT, HEAD COVERBOLT, HEAD COVER
