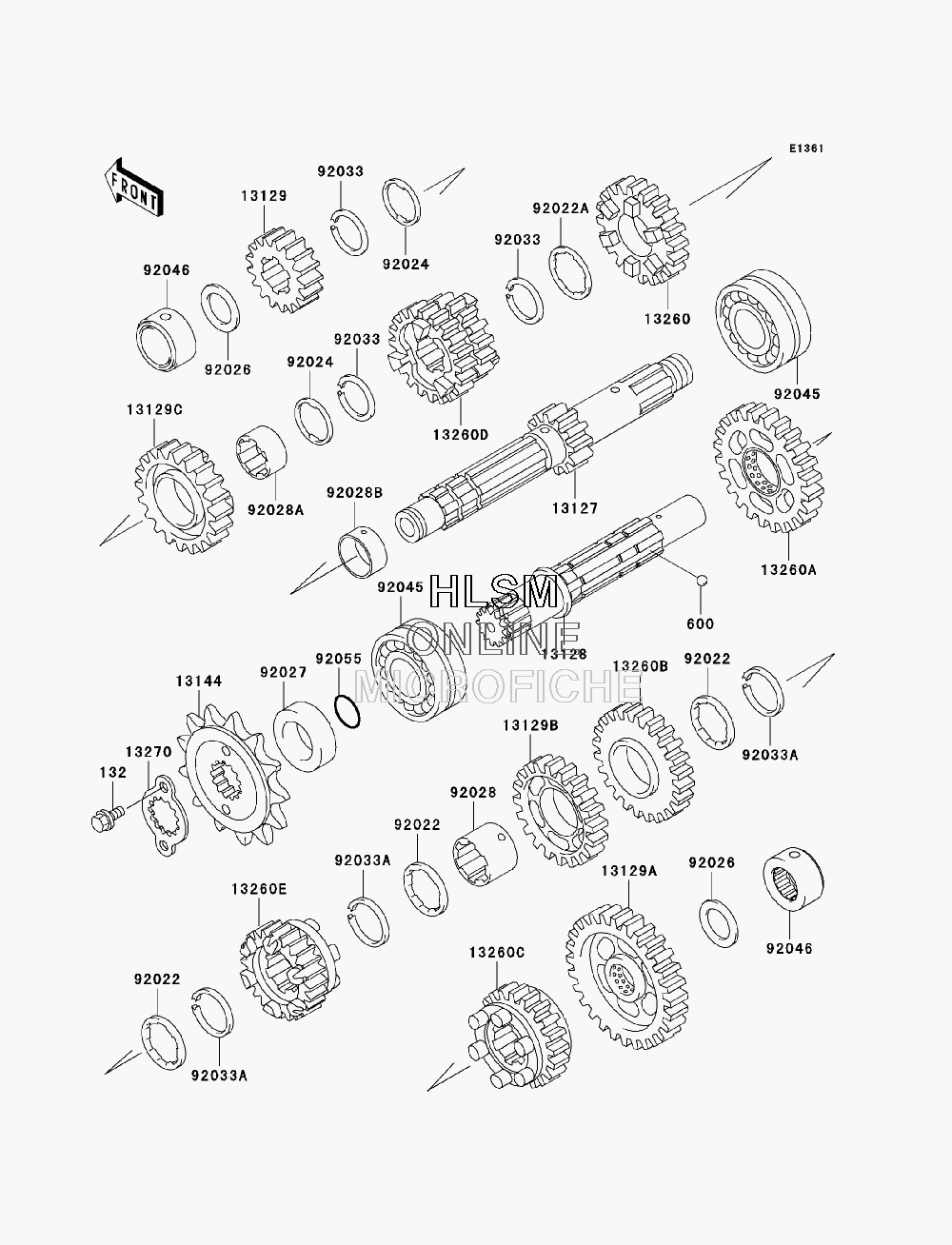

TRANSMISSION для Kawasaki NINJA 500R (EX500D9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BA0608 BOLT-FLANGED-SMALL, 6X8BOLT-FLANGED-SMALL, 6X8
-
600600A0500 BALL-STEEL, 5/32"BALL-STEEL, 5/32"
-
1312713127-1148 SHAFT-TRANSMISSION INPUT, 14TSHAFT-TRANSMISSION INPUT, 14T
-
1312813128-1143 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1312913129-1077 GEAR, INPUT 2ND, 18TGEAR, INPUT 2ND, 18T
-
13129A13129-1564 GEAR, OUTPUT LOW, 36TGEAR, OUTPUT LOW, 36T
-
13129B13129-1660 GEAR, OUTPUT 4TH, 27TGEAR, OUTPUT 4TH, 27T
-
13129C13129-1859 GEAR, INPUT TOP, 27TGEAR, INPUT TOP, 27T
-
1314413144-1269 SPROCKET-OUTPUT, 16TSPROCKET-OUTPUT, 16T
-
1326013260-1203 GEAR, INPUT 5TH, 26TGEAR, INPUT 5TH, 26T
-
13260A13260-1332 GEAR, OUTPUT 2ND, 32TGEAR, OUTPUT 2ND, 32T
-
13260B13260-1387 GEAR, OUTPUT 3RD, 29TGEAR, OUTPUT 3RD, 29T
-
13260C13260-1388 GEAR, OUTPUT 5TH, 25TGEAR, OUTPUT 5TH, 25T
-
13260D13260-1508 GEAR, INPUT 3RD & 4TH, 21T & 24TGEAR, INPUT 3RD & 4TH, 21T & 24T
-
13260E13260-1585 GEAR, OUTPUT TOP, 23TGEAR, OUTPUT TOP, 23T
-
1327013270-1060 PLATE, SPROCKETPLATE, SPROCKET
-
9202292022-1139 WASHER, TOOTHED, 28.3X33.5X1WASHER, TOOTHED, 28.3X33.5X1
-
92022A92022-1861 WASHER, TOOTHED, 25.3X31.8X1.6WASHER, TOOTHED, 25.3X31.8X1.6
-
9202492024-033 WASHER, TOOTHED, 25.5X32X1WASHER, TOOTHED, 25.5X32X1
-
9202692026-1022 SPACER, 20.3X30X2.0SPACER, 20.3X30X2.0
-
9202792027-1857 COLLAR, 25X40X12COLLAR, 25X40X12
-
9202892028-1364 BUSHING, OUTPUT 3RD & 4TH GEARBUSHING, OUTPUT 3RD & 4TH GEAR
-
92028A92028-1552 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028B92028-1639 BUSHINGBUSHING
-
9203392033-026 RING-SNAP, 24MMRING-SNAP, 24MM
-
92033A92033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9204592045-035 BEARING-BALL, 83993SH2-CSBEARING-BALL, 83993SH2-CS
-
9204692046-1161 BEARING-NEEDLE, NKZ20X34X17BEARING-NEEDLE, NKZ20X34X17
-
9205592055-035 RING-ORING-O
