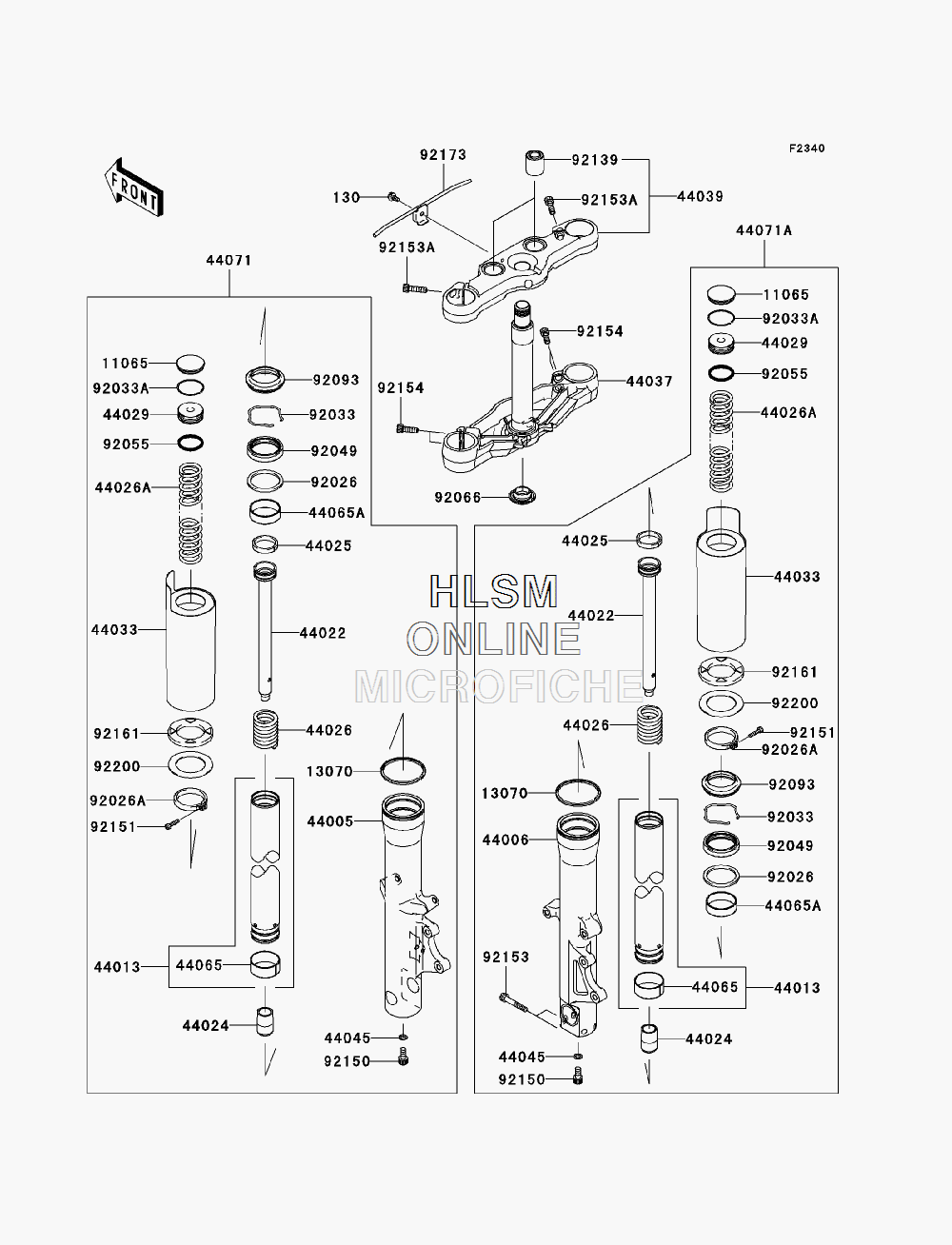

FRONT FORK для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700B9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
1106511065-0279 CAP,FORK TOPCAP,FORK TOP
-
1307013070-0103 GUIDE,CASEGUIDE,CASE
-
4400544005-0073 PIPE-LEFT FORK OUTERPIPE-LEFT FORK OUTER
-
4400644006-0067 PIPE-RIGHT FORK OUTERPIPE-RIGHT FORK OUTER
-
4401344013-0124 PIPE-FORK INNERPIPE-FORK INNER
-
4402244022-0026 CYLINDER-FORKCYLINDER-FORK
-
4402444024-0006 CAP-OIL-LOCKCAP-OIL-LOCK
-
4402544025-0005 RING-FORK PISTONRING-FORK PISTON
-
4402644026-0129 SPRING-FRONT FORKSPRING-FRONT FORK
-
44026A44026-0138 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-0012 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403344033-0052 COVER-FORKCOVER-FORK
-
4403744037-0086 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-0099 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404544045-051 GASKET,FORK CYLINDER BOLTGASKET,FORK CYLINDER BOLT
-
4406544065-0023 BUSHING-FRONT FORK,INNER TUBEBUSHING-FRONT FORK,INNER TUBE
-
44065A44065-0024 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
4407144071-0551 DAMPER-ASSY,FORK, LEFT HANDDAMPER-ASSY,FORK, LEFT HAND
-
44071A44071-0605 DAMPER-ASSY,FORK, RIGHT HANDDAMPER-ASSY,FORK, RIGHT HAND
-
9202692026-0132 SPACERSPACER
-
92026A92026-0133 SPACERSPACER
-
9203392033-0060 RING-SNAPRING-SNAP
-
92033A92033-1303 RING-SNAPRING-SNAP
-
9204992049-0118 SEAL-OILSEAL-OIL
-
9205592055-0169 RING-ORING-O
-
9206692066-0032 PLUGPLUG
-
9209392093-0147 SEAL,DUSTSEAL,DUST
-
9213992139-0285 BUSHINGBUSHING
-
9215092150-1432 BOLT,SOCKET,8X18BOLT,SOCKET,8X18
-
9215192151-1356 BOLT,SOCKET,4X16BOLT,SOCKET,4X16
-
9215392153-0499 BOLTBOLT
-
92153A92153-0500 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
9215492154-0113 BOLT,SOCKETBOLT,SOCKET
-
9216192161-0683 DAMPERDAMPER
-
9217392173-0035 CLAMPCLAMP
-
9220092200-0468 WASHERWASHER
