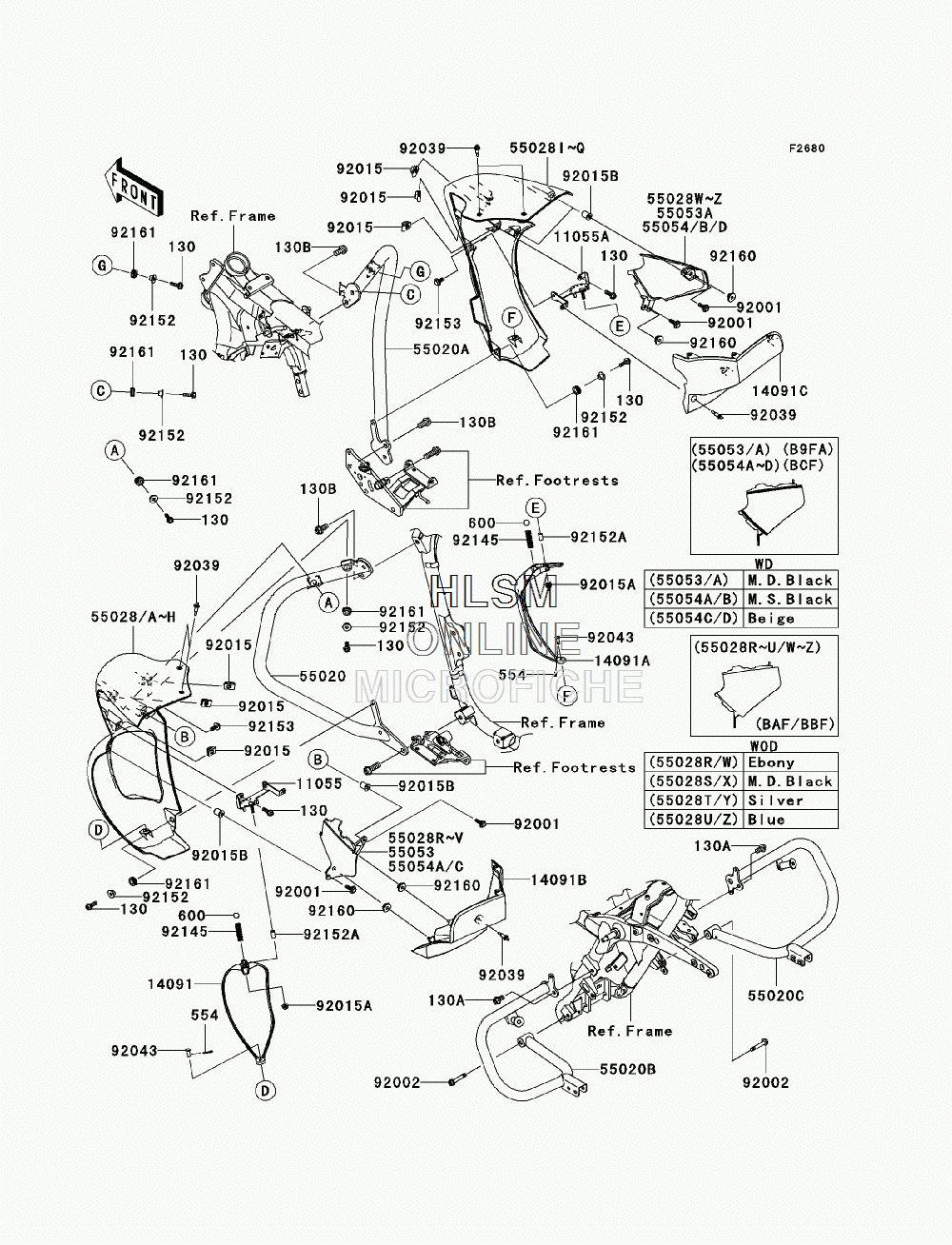

GUARD(S) для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700B9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105511055-0687 BRACKET,VENTILATION, LEFT HAND,UPPBRACKET,VENTILATION, LEFT HAND,UPP
-
11055A11055-0688 BRACKET,VENTILATION, RIGHT HAND,UPPBRACKET,VENTILATION, RIGHT HAND,UPP
-
1409114091-1618-6Z COVER,VENTILATION, LEFT HAND,F.BLACKCOVER,VENTILATION, LEFT HAND,F.BLACK
-
14091A14091-1619-6Z COVER,VENTILATION, RIGHT HAND,F.BLACKCOVER,VENTILATION, RIGHT HAND,F.BLACK
-
14091B14091-1787 COVER, LEFT HANDCOVER, LEFT HAND
-
14091C14091-1788 COVER, RIGHT HANDCOVER, RIGHT HAND
-
5502055020-0512 GUARD, FRONT, LEFT HANDGUARD, FRONT, LEFT HAND
-
55020A55020-0513 GUARD, FRONT, RIGHT HANDGUARD, FRONT, RIGHT HAND
-
55020B55020-0535 GUARD, REAR, LEFT HANDGUARD, REAR, LEFT HAND
-
55020C55020-0536 GUARD, REAR, RIGHT HANDGUARD, REAR, RIGHT HAND
-
55028D55028-0220-25T COWLING, LEG SHIELD,OUT, LEFT HAND, REDCOWLING, LEG SHIELD,OUT, LEFT HAND, RED
-
55028M55028-0221-25T COWLING, LEG SHIELD,OUT, RIGHT HAND, REDCOWLING, LEG SHIELD,OUT, RIGHT HAND, RED
-
55028V55028-0222-25T COWLING, LEG SHIELD,INN, LEFT HAND, REDCOWLING, LEG SHIELD,INN, LEFT HAND, RED
-
130130BA0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
130A130BA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
130B130BC1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
554554DA0600 PIN-SNAPPIN-SNAP
-
600600A0800 BALL-STEEL,1/4"BALL-STEEL,1/4"
-
5505455028-0223-25T COWLING, LEG SHIELD,INN, RIGHT HAND, REDCOWLING, LEG SHIELD,INN, RIGHT HAND, RED
-
9200192001-1460 BOLT,WP,6X20BOLT,WP,6X20
-
9200292002-1850 BOLT,FLANGED,8X47BOLT,FLANGED,8X47
-
9201592015-1602 NUT,6MMNUT,6MM
-
92015A92015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015B92015-1700 NUTNUT
-
9203992039-1283 RIVETRIVET
-
9204392043-092 PIN,6X11PIN,6X11
-
9214592145-1319 SPRINGSPRING
-
9215292152-0295 COLLARCOLLAR
-
92152A92152-0771 COLLAR,6.2X7.8X14COLLAR,6.2X7.8X14
-
9215392153-1215 BOLT,6X16BOLT,6X16
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0266 DAMPERDAMPER
Все узлы модели:
- AIR CLEANER
- AUDIO ELECTRONICS
- BALANCER SHAFT
- BATTERY CASE
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL W/ TORQUE LINK
- BRAKE PIPING
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHAIN COVER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CLUTCH MASTER CYLINDER
- COLOR INFO
- COOLING SYSTEM
- COWLING
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (RED)
- ENGINE COVER(S) - LEFT
- ENGINE COVER(S) - RIGHT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- • GUARD(S)
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL FILTER
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- REFLECTORS
- SADDLEBAGS (SIDE BAG BRACKET)
- SADDLEBAGS (SIDE BAG)
- SADDLEBAGS (TRUNK)
- SEAT
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WATER PIPE
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
- WINDSHIELD
