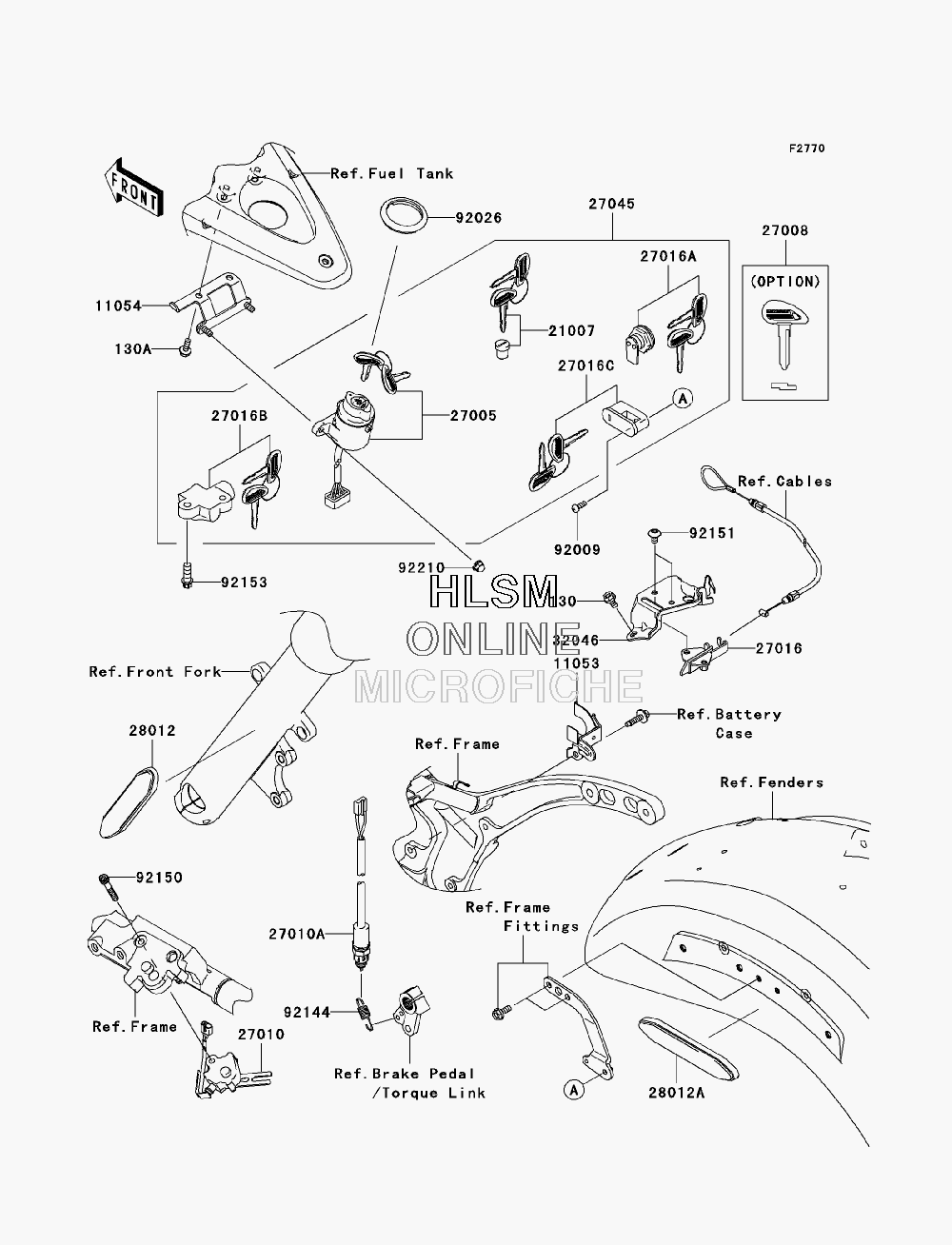

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VULCAN 2000 CLASSIC (VN2000H9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
1105311053-0920 BRACKET, SIDE COVER LOCKBRACKET, SIDE COVER LOCK
-
1105411054-0095 BRACKET, IGNITION SWITCHBRACKET, IGNITION SWITCH
-
2100721007-5053 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0027 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1211 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0011 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0023 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5279 LOCK-ASSY, LIDLOCK-ASSY, LID
-
27016B27016-5298 LOCK-ASSY, STEERINGLOCK-ASSY, STEERING
-
27016C27016-5311 LOCK-ASSY, HELMETLOCK-ASSY, HELMET
-
2704527045-5324 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0009 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-0010 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
3204632046-0037 BRACKET-SEATBRACKET-SEAT
-
9200992009-1341 SCREW, 5X14SCREW, 5X14
-
9202692026-0018 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215092150-1958 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9215192151-1219 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215392153-1273 BOLT, TORX, 8X22BOLT, TORX, 8X22
-
9221092210-1252 NUT, CAP, 6MMNUT, CAP, 6MM
