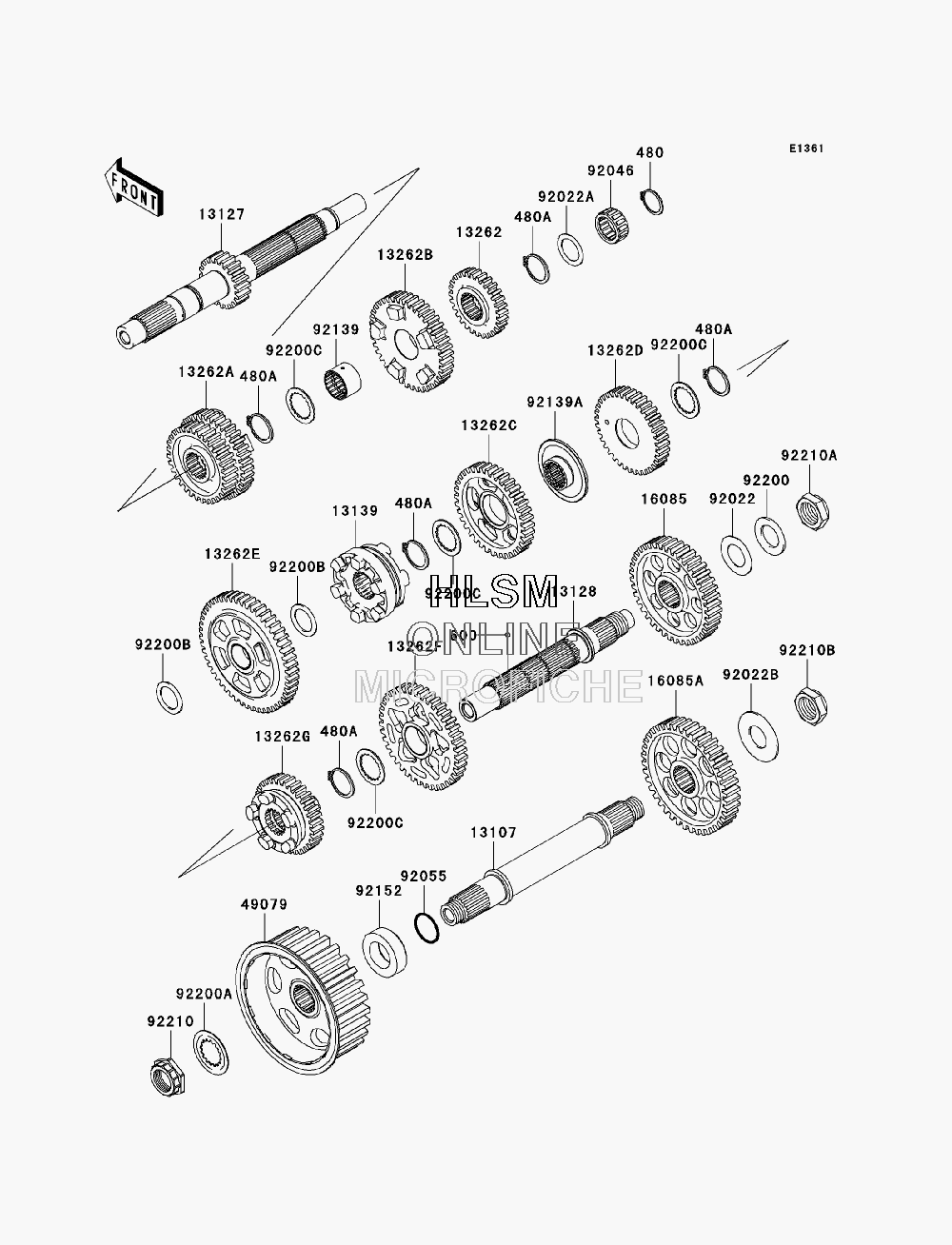

TRANSMISSION для Kawasaki VULCAN 2000 CLASSIC (VN2000H9F) - 2009 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL, 5/32"BALL-STEEL, 5/32"
-
1310713107-0108 SHAFT, PULLEYSHAFT, PULLEY
-
1312713127-0003 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0013 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1313913139-0001 SHIFTER, OUTPUTSHIFTER, OUTPUT
-
1326213262-0004 GEAR, INPUT 2ND, 27TGEAR, INPUT 2ND, 27T
-
13262A13262-0005 GEAR, INPUT 3RD & 4TH, 32T & 33TGEAR, INPUT 3RD & 4TH, 32T & 33T
-
13262B13262-0006 GEAR, INPUT 5TH, 37TGEAR, INPUT 5TH, 37T
-
13262C13262-0008 GEAR, OUTPUT 3RD, 39TGEAR, OUTPUT 3RD, 39T
-
13262D13262-0009 GEAR, OUTPUT 4TH, 31TGEAR, OUTPUT 4TH, 31T
-
13262E13262-0010 GEAR, OUTPUT LOW, 51TGEAR, OUTPUT LOW, 51T
-
13262F13262-0011 GEAR, OUTPUT 2ND, 44TGEAR, OUTPUT 2ND, 44T
-
13262G13262-0012 GEAR, OUTPUT 5TH, 27TGEAR, OUTPUT 5TH, 27T
-
1608516085-0004 GEAR, TRANSFER, 41TGEAR, TRANSFER, 41T
-
16085A16085-0032 GEAR, TRANSFER, 50TGEAR, TRANSFER, 50T
-
4907949079-0014 PULLEY-BELTPULLEY-BELT
-
9202292022-1390 WASHER, 25.3X44X1WASHER, 25.3X44X1
-
92022A92022-1855 WASHER, 25.5X36X1.0WASHER, 25.5X36X1.0
-
92022B92022-1857 WASHER, 25.3X56X2.0WASHER, 25.3X56X2.0
-
9204692046-0007 BEARING-NEEDLE, KT 253515E02 C3BEARING-NEEDLE, KT 253515E02 C3
-
9205592055-0006 RING-O, 29.7X2.4RING-O, 29.7X2.4
-
9213992139-0006 BUSHINGBUSHING
-
92139A92139-0007 BUSHING, OUTPUT 3RD-4TH GEARBUSHING, OUTPUT 3RD-4TH GEAR
-
9215292152-0021 COLLAR, 30X50X16COLLAR, 30X50X16
-
9220092200-0016 WASHER, 25.5X42X2.6WASHER, 25.5X42X2.6
-
92200A92200-0017 WASHER, 31X50X1WASHER, 31X50X1
-
92200B92200-0116 WASHER, 25.5X36X1.6WASHER, 25.5X36X1.6
-
92200C92200-1381 WASHER, 30.3X40X1.5WASHER, 30.3X40X1.5
-
9221092210-0060 NUT, 25MMNUT, 25MM
-
92210A92210-0136 NUT, LEFT HANDED, 25MMNUT, LEFT HANDED, 25MM
-
92210B92210-0138 NUT, 25MMNUT, 25MM
