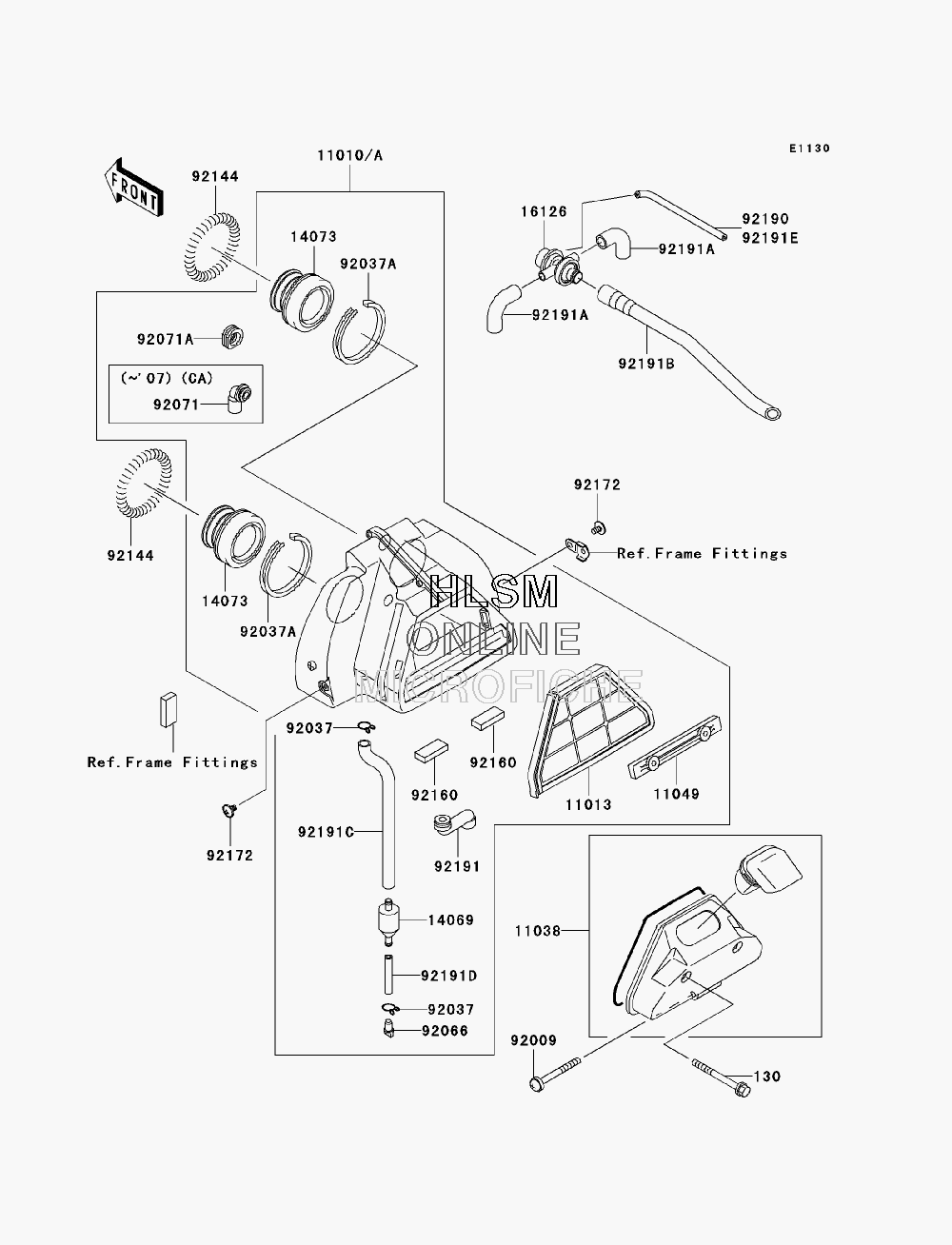

AIR CLEANER для Kawasaki VULCAN 500 LTD (EN500C9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BA0660 BOLT-FLANGED,6X60BOLT-FLANGED,6X60
-
11010A11010-1744 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-1250 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-1107 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1104911049-1456 BRACKETBRACKET
-
1406914069-1051 BREATHERBREATHER
-
1407314073-1651 DUCT,AIR FILTERDUCT,AIR FILTER
-
1612616126-1318 VALVE,AIR SWITCHVALVE,AIR SWITCH
-
9200992009-1829 SCREW,6X56SCREW,6X56
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1631 CLAMP,69MMCLAMP,69MM
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
92071A92071-1165 GROMMETGROMMET
-
9214492144-1771 SPRING,AIR FILTER DUCTSPRING,AIR FILTER DUCT
-
9216092160-1689 DAMPERDAMPER
-
9217292172-0005 SCREW,6X10SCREW,6X10
-
9219092190-1444 TUBE,4X9X336TUBE,4X9X336
-
9219192191-1044 TUBE,BREATHERTUBE,BREATHER
-
92191A92191-1045 TUBETUBE
-
92191B92191-1046 TUBETUBE
-
92191C92191-1074 TUBE,AIR FILTERTUBE,AIR FILTER
-
92191D92191-1075 TUBE,6X10X60TUBE,6X10X60
-
130130BA0660 BOLT-FLANGED,6X60BOLT-FLANGED,6X60
-
11010A11010-1744 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-1250 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-1107 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1104911049-1456 BRACKETBRACKET
-
1406914069-1051 BREATHERBREATHER
-
1407314073-1651 DUCT,AIR FILTERDUCT,AIR FILTER
-
1612616126-1318 VALVE,AIR SWITCHVALVE,AIR SWITCH
-
9200992009-1829 SCREW,6X56SCREW,6X56
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1631 CLAMP,69MMCLAMP,69MM
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
92071A92071-1165 GROMMETGROMMET
-
9214492144-1771 SPRING,AIR FILTER DUCTSPRING,AIR FILTER DUCT
-
9216092160-1689 DAMPERDAMPER
-
9217292172-0005 SCREW,6X10SCREW,6X10
-
9219092190-1444 TUBE,4X9X336TUBE,4X9X336
-
9219192191-1044 TUBE,BREATHERTUBE,BREATHER
-
92191A92191-1045 TUBETUBE
-
92191B92191-1046 TUBETUBE
-
92191C92191-1074 TUBE,AIR FILTERTUBE,AIR FILTER
-
92191D92191-1075 TUBE,6X10X60TUBE,6X10X60
